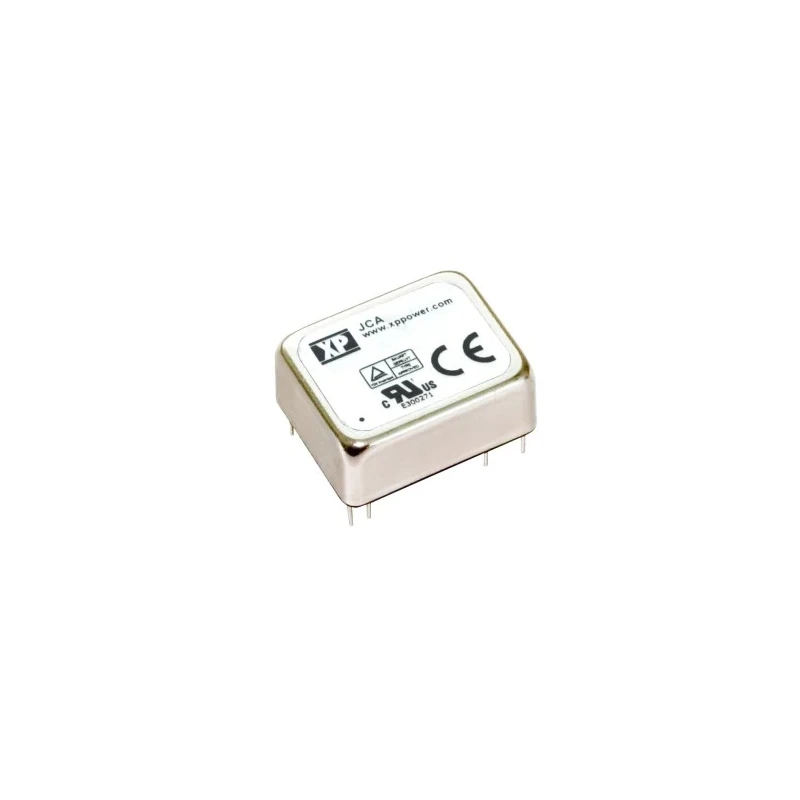

XP Power DC/DC Converter Dual Output 5V and -5V 200mA, 36V Max Input, 18V Min Input, 2W Power, Through Hole JCA0224D01
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCA DC/DC Converter, 5V, -5 V/ 200 mA, 36 |
| Brand | XP Power |
| Efficiency | 76% |
| Length | 25.4mm |
| Model | JCA0224D01 |
| Depth | 10mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | JCA |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 5, -5V |
| Output Current 1 | 200mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Provides isolated dual outputs 5V and -5V for versatile applications.
- Operates efficiently with 76% efficiency rating.
- Designed for through hole mounting with a DIP 24-pin package.
- Compact metal package measuring 25.4 x 20.3 x 10 mm.
- Wide operating temperature range from -40°C up to 100°C ensures reliability.
- Isolation voltage rated at 1.5kV DC for safety in critical environments.
- Mean time between failures (MTBF) of 2,000,000 hours for long service life.
- Industry standard pin out compatible with various PCB designs.
Product Description
XP Power JCA0224D01 DC/DC Converter is a high-reliability dual output power module providing 5V and -5V outputs at 200mA current with a maximum output power of 2W. It accepts a broad DC input voltage range from 18V minimum to 36V maximum, featuring a 2:1 input ratio, which makes it suitable for flexible power supply configurations.
The converter is housed in a compact DIP 24-pin through hole metal package measuring 25.4mm in length, 20.3mm in width, and 10mm in depth. It operates efficiently at 76% efficiency, delivering stable power in a wide ambient temperature range from -40°C to 100°C, ensuring robust operation in harsh environments.
This product features an isolation voltage of 1.5kV DC, providing dependable insulation between input and output to safeguard sensitive circuits. With a mean time between failures of two million hours, it guarantees longevity for demanding industrial applications.
Designed with industry standard pin configurations, the JCA0224D01 facilitates easy integration into a variety of PCB layouts. Its through hole mounting style supports durable and secure installation.
This DC/DC converter is ideal for use in industrial controls, telecommunications equipment, instrumentation, and other applications requiring reliable isolated dual-voltage power supply sources.
Provides isolated dual outputs 5V and -5V for versatile applications. Operates efficiently with 76% efficiency rating. Designed for through hole mounting with a DIP 24-pin package. Compact metal package measuring 25.4 x 20.3 x 10 mm.
Wide operating temperature range from -40°C up to 100°C ensures reliability. Isolation voltage rated at 1.5kV DC for safety in critical environments. Mean time between failures (MTBF) of 2,000,000 hours for long service life.
Industry standard pin out compatible with various PCB designs. Ideal for industrial, commercial, and telecommunications power supply needs. Explore more DC/DC Converters and power modules at EnvMart for reliable electronic power solutions tailored for industrial, commercial, and laboratory use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 2W.
It operates with an efficiency rating of 76%.
This unit accepts a DC input voltage ranging from 18V to 36V.
It provides dual outputs of 5V and -5V.
The isolation voltage is rated at 1.5kV DC.
It operates efficiently within a temperature range of -40°C to 100°C.
The dimensions are 25.4mm in length, 20.3mm in width, and 10mm in depth.
This model has two outputs.
It is designed for through hole mounting.
The MTBF is 2,000,000 hours.
It features an industry standard 24-pin configuration for easy integration into PCB layouts.
The country of origin for this model is Taiwan.
