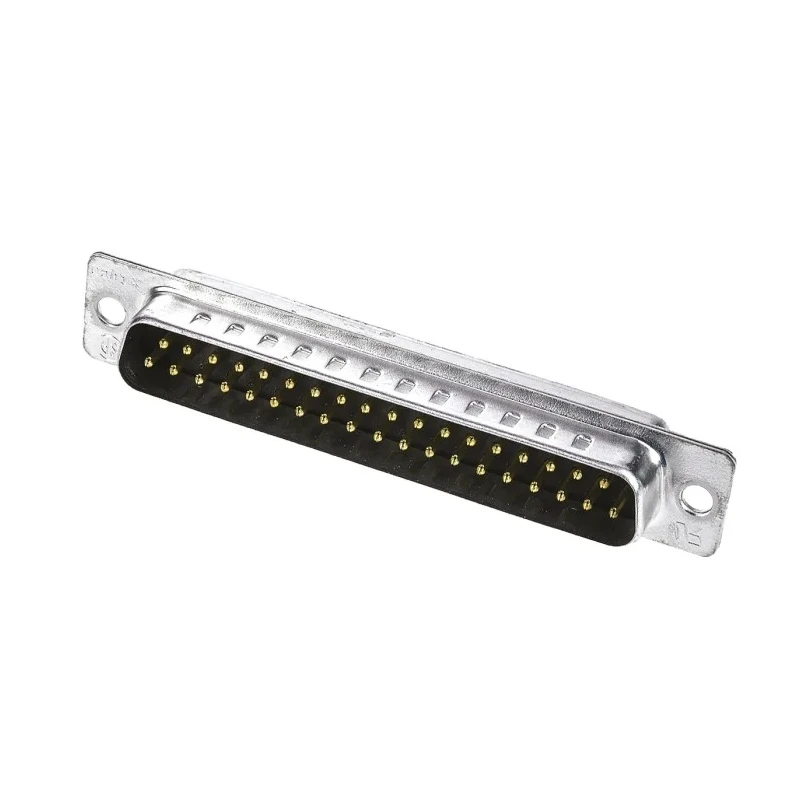

TE Connectivity AMPLIMITE HD-20 37 Way Straight Panel Mount D-Sub Connector Male 250V 3A 5-747916-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Panel Mount |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | AMPLIMITE HD-20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 37 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | C |
Key Features
- This connector features a high-density AMPLIMITE HD-20 series design providing improved contact density.
- It has a steel housing with a tin-plated shell ensuring EMI shielding and durability.
- Gold over nickel plated brass contacts offer reliable conductivity and corrosion resistance.
- Suitable for panel mount applications with solder termination type.
- Operates reliably in temperature ranges from -55°C to 105°C.
- Meets industrial requirements with no specific approvals but built for communication and data interface use.
- Compact D-sub shell size C catering to space-saving connector applications.
- Pre-loaded with duplex plated solder cup contacts compatible with related AMPLIMITE HD-20 series connectors.
Product Description
TE Connectivity 5-747916-2 AMPLIMITE HD-20 37 Way Straight Panel Mount Male D-Sub Connector offers high-performance connectivity for industrial, communication, and data interface applications. This connector is engineered for voltages up to 250V and currents up to 3A, enabling reliable and durable electrical connections.
The housing is constructed of steel with a tin-plated shell providing comprehensive EMI shielding and mechanical strength. The connector features brass contacts plated with gold over nickel, enhancing conductivity and preventing corrosion. The solder termination type facilitates secure attachment to cables and wires.
Designed for straight orientation and panel mounting, this D-Sub Connector uses the HD-20 shell size C, supporting 37 contacts for high-density signal transmission. It operates across a wide temperature range (-55°C to 105°C), ensuring stable function in various environments.
The AMPLIMITE HD-20 series is recognized for its space-saving design with 65% increased contact density compared to standard HD-20 connectors. Accessories such as cable clamps and shielding hardware provide additional customization to specific application needs.
High-density connector design for efficient space usage. Robust steel housing with tin-plated shell for shielding. Gold over nickel plating on brass contacts for signal integrity. Solder cup termination for secure wiring.
Wide operating temperature range from -55°C to 105°C. Panel mount orientation with male connector gender. Compatible with related AMPLIMITE HD-20 series components. Ideal for industrial, laboratory, manufacturing, and communication systems.
This AMPLIMITE HD-20 connector is ideal for applications requiring high reliability and EMI shielding in compact form factors. It is widely used in electronic test equipment, industrial controls, and communication devices.
Explore similar connector solutions and accessories within the Electronics & Electricals category at EnvMart for comprehensive connectivity systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this connector is 250V.
This connector can handle a maximum current of 3A.
It operates reliably within a temperature range of -55°C to 105°C.
The housing is made of steel with a tin-plated shell, and the contacts are brass plated with gold over nickel.
This D-Sub connector features 37 contacts.
It uses a solder termination type for secure attachment to cables and wires.
Yes, this model is designed for panel mount applications.
It uses a compact D-Sub shell size C.
This connector has a male gender.
It is designed for industrial, communication, and data interface applications.
Yes, the steel housing with a tin-plated shell ensures EMI shielding.
Yes, it is compatible with related AMPLIMITE HD-20 series connectors.
