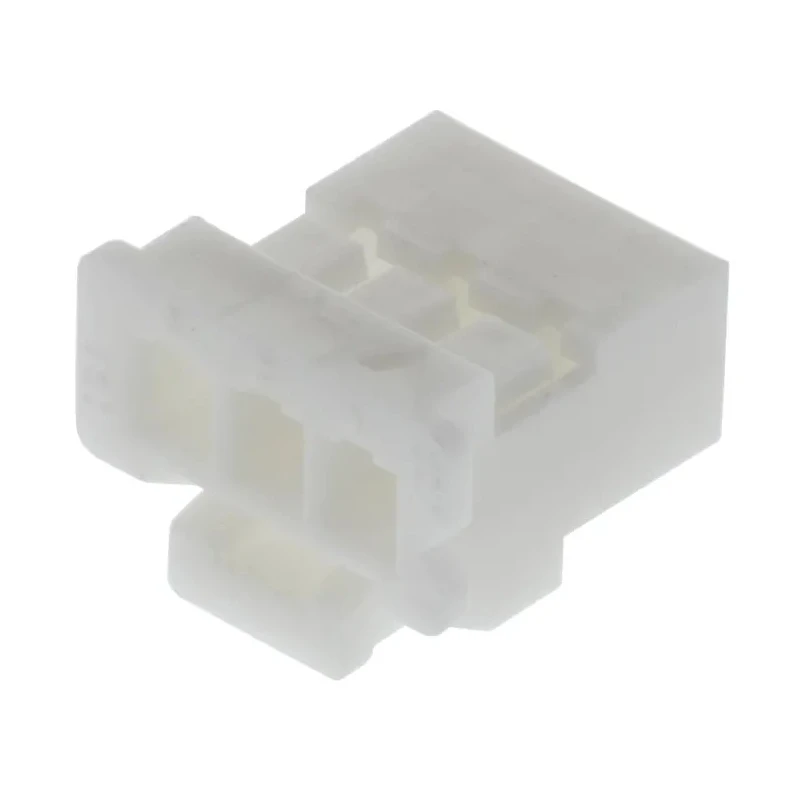

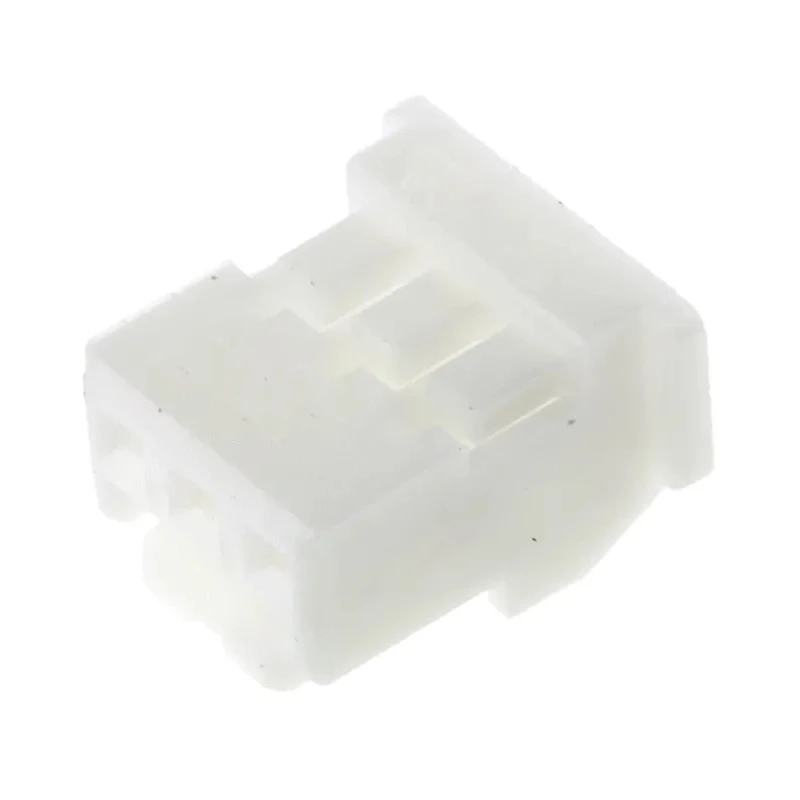

JST PA Female Connector Housing 2 mm Pitch 3 Way 1 Row Straight PAP-03V-S
Specifications
| Country of Origin | India |
|---|---|
| Brand | JST |
| Orientation | Straight |
| Length | 8mm |
| Model | PAP-03V-S |
| Width | 5.8mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | PA |
| Number of Rows | 1 |
| Pitch | 2mm |
| For Use With | Crimp Connector |
| Number of Contacts | 3 |
| Connector Gender | Female |
Key Features
- Constructed from durable nylon housing material for robust insulation.
- Designed for cable mount with female connector gender.
- Compact dimensions of 8 mm length and 5.8 mm width.
- Features additional locking mechanisms for secure fitting.
- Compatible with crimp connectors for easy assembly.
- Suitable for industrial controls, household appliances, and networking systems.
- Offers vibration-resistant secure connections via thumb depress locking system.
- Part of the PA series connector housings, ensuring compatibility across the range.
Product Description
JST PAP-03V-S female connector housing is a 3-way, 1-row, straight connector designed for reliable wire-to-board connections in electronic components applications. Manufactured from high-quality nylon material, this connector housing provides robust insulation and durability necessary for various industrial and consumer applications.
This 2 mm pitch connector housing is part of JST's PA series, widely used in household appliances, industrial controls, storage, and networking equipment due to its compact size and effective locking features. The housing supports cable mounting with female gender contacts, ensuring proper mating with crimp connectors for secure electrical connections.
The compact dimensions of 8 mm length and 5.8 mm width make it suitable for tight PCB layouts while maintaining mechanical stability. An additional locking feature with a thumb depress mechanism prevents accidental disconnection caused by vibration or handling, ensuring connection integrity in demanding environments.
Compliant with UL File No. 60389 and CSA File No. LR20812, this connector housing meets industry safety and quality standards. It provides reliable and easy assembly solutions for manufacturers requiring secure connections in electrical and electronic equipment.
Durable nylon housing material ensuring insulation and longevity. 2 mm pitch suitable for compact electronic designs. 3 contacts arranged in a single row for efficient wiring. Straight orientation facilitates direct cable routing.
Additional locking mechanism for vibration resistance. Compatible with crimp connectors for easy assembly. Applications include industrial controls, household appliances, and networking. PA series compatibility for broad connector system integration.
Meets UL and CSA certification standards for safety.
Ideal for industrial, manufacturing, and electronic assembly sectors, the JST PA female connector housing PAP-03V-S contributes to enhanced reliability and performance of PCB connections. Explore our wide range of electronic components and Connector Housings at EnvMart to meet your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector housing has a length of 8 mm and a width of 5.8 mm, making it suitable for compact electronic designs.
The JST PAP-03V-S features a 2 mm pitch, which is ideal for tight PCB layouts.
This model is designed with 3 contacts arranged in a single row for efficient wiring.
It is constructed from durable nylon, providing robust insulation and longevity for various applications.
The JST PAP-03V-S is a female connector housing, designed for use with female contacts.
Yes, this connector housing is compatible with crimp connectors, allowing for easy assembly.
This model has a straight orientation, facilitating direct cable routing.
It is suitable for industrial controls, household appliances, and networking systems due to its reliable connections.
It features an additional locking mechanism with a thumb depress system that provides vibration resistance and prevents accidental disconnection.
This connector housing is part of the PA series, ensuring compatibility across the range of JST connectors.
It complies with UL File No. 60389 and CSA File No. LR20812, meeting industry safety and quality standards.
The country of origin for this connector housing is India.
