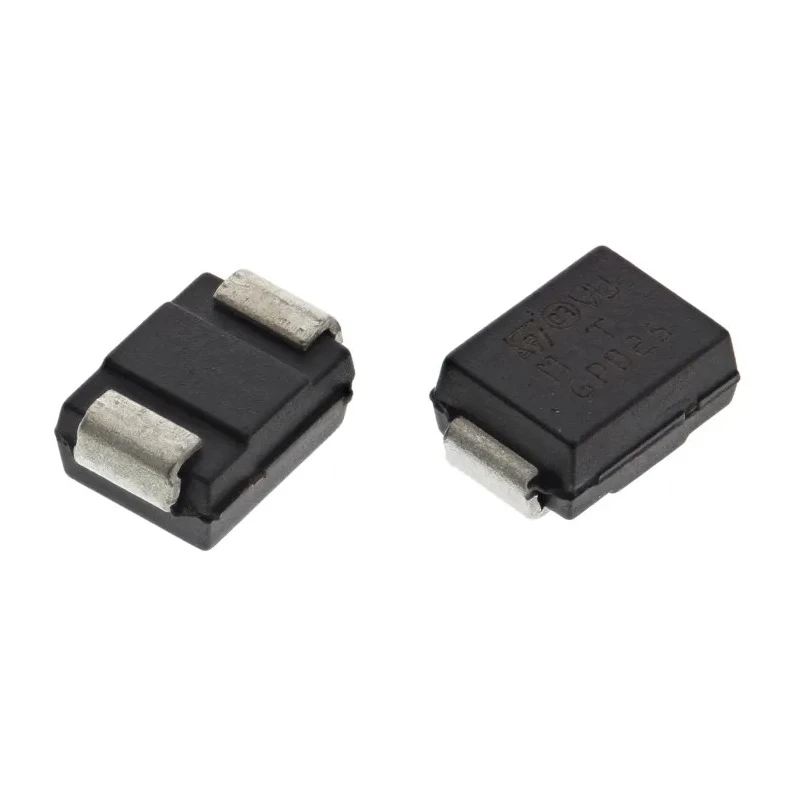

STMicroelectronics 1-Element Bi-Directional TVS Diode Surface Mount DO-214 Package 600W Peak Pulse Power SM6T33CA

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 1-Element Bi-Directional TVS Diode Surface Mount DO-214 Package 600W Peak Pulse Power SM6T33CA

Name: STMicroelectronics 1-Element Bi-Directional TVS Diode Surface Mount DO-214 Package 600W Peak Pulse Power SM6T33CA
Brand: STMicroelectronics
SKU: 190142
Price: 0.2 USD
Availability: InStock



Category TVS Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.45mm
Length	4.6mm
Model	SM6T33CA
Width	3.95mm
Mount Type	Surface
Series	SM6T
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	59V
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	31.4V
Maximum Reverse Stand-off Voltage Vwm	28.2V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	68A
Maximum Reverse Leakage Current	200nA

Key Features

Bi-directional diode configuration suitable for transient voltage suppression.
Surface mount DO-214 package designed for efficient PCB layout.
Minimum breakdown voltage of 31.4 V ensuring reliable operation.
Peak pulse power dissipation rating up to 600 W for high energy surge protection.
Operating temperature range from -55°C to 150°C for robust environmental performance.
Low maximum reverse leakage current of 200 nA for minimal power loss.
Pin count of 2 with compact diode dimensions (4.6mm length, 3.95mm width, 2.45mm height).
Clamping voltage of 59 V protecting circuits from voltage spikes.

Product Description

STMicroelectronics SM6T33CA is a bi-directional single-element Transient Voltage Suppressor (TVS) diode with a robust surface mount DO-214 package designed for high reliability in industrial and electronic applications. It provides effective surge protection by clamping transient voltages and dissipating surge energy up to 600 W peak pulse power. The device features a minimum breakdown voltage of 31.4 V and a maximum reverse stand-off voltage of 28.2 V, making it ideal for safeguarding sensitive electronics from voltage spikes.

With its compact dimensions of 4.6 mm length, 3.95 mm width, and 2.45 mm height, the SM6T33CA facilitates efficient PCB footprint usage while maintaining thermal and electrical performance. Its operating temperature range from -55°C up to 150°C ensures reliable functioning under harsh environmental conditions. The diode exhibits low maximum reverse leakage current of 200 nA and can handle peak pulse currents up to 68 A, providing robust protection against transient surges.

This diode is primarily used in power and signal line protection in industrial, telecom, automotive, and consumer electronics sectors. It protects circuits from inductive load switching, lightning surges, electrostatic discharge (ESD), and other transient voltage events.

Bi-directional transient voltage suppression in a single element configuration. 600 W peak pulse power dissipation capability ensures robust surge handling. Surface mount DO-214 package facilitates automated assembly and compact design.

Wide operating temperature range (-55°C to 150°C) suitable for industrial environments. Low reverse leakage current minimizes power loss during normal operation. Compact form factor with 2 pins enables easy integration into protection circuits.

Clamping voltage rated at 59 V for effective protection against voltage spikes. Applications include surge protection in automotive electronics, industrial equipment, and communication devices.

Choose the STMicroelectronics SM6T33CA diode for dependable transient voltage suppression and protection in demanding electrical and electronic applications. Explore related semiconductor components and TVS Diodes on EnvMart for your design and manufacturing needs.
