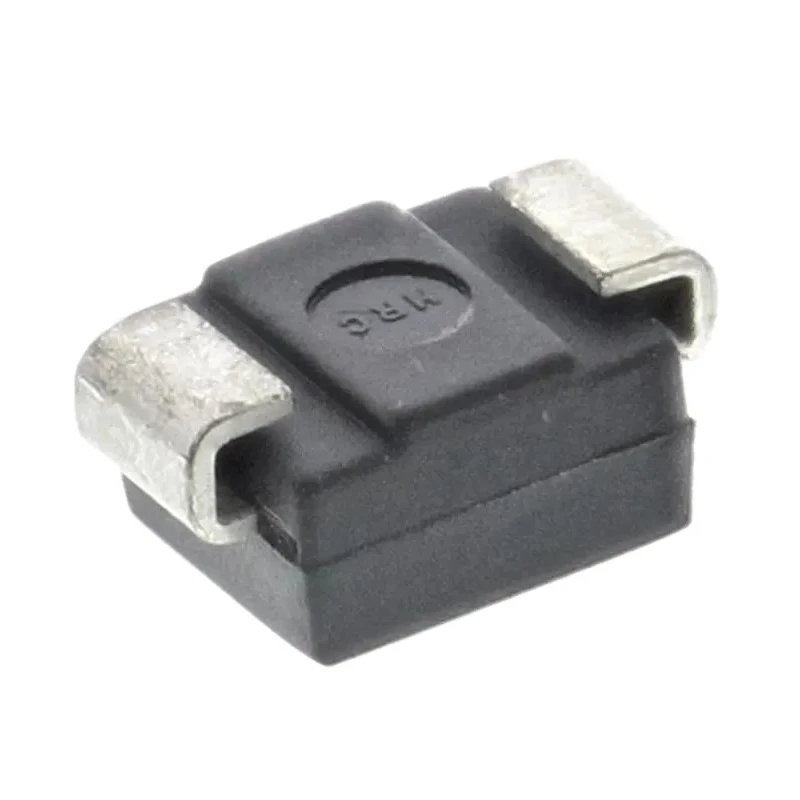

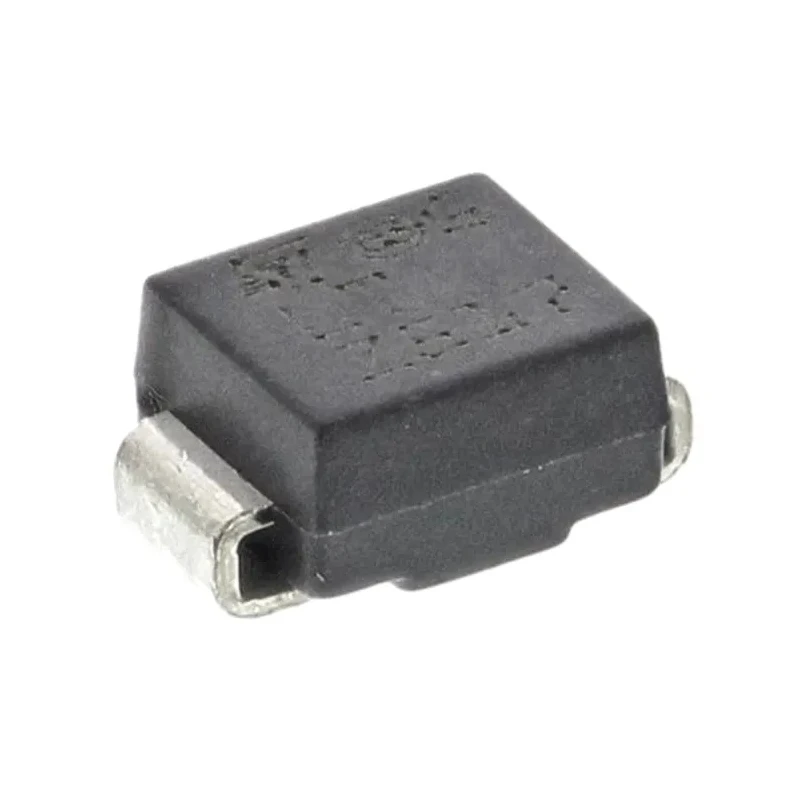

STMicroelectronics TVS Diode 1-Element Bi-Directional 600 W 2-Pin DO-214 SM6T12CA

STMicroelectronics SM6T12CA is a high-performance 1-element bi-directional transient voltage suppressor (TVS) diode designed for protection of sensitive electronic components against voltage spikes and transients. The device offers a peak pulse power dissipation capability of 600 W, ensuring robust transient voltage suppression in a compact DO-214 surface mount package.

This TVS diode features a single-element configuration to provide bidirectional voltage protection, making it suitable for circuits subject to voltage surges from both polarities. The minimum breakdown voltage (Vbr) is 11.4 V with a maximum reverse stand-off voltage (Vwm) of 10.2 V, designed to clamp transient voltages effectively up to the specified peak pulse power rating.

Electrical characteristics include a maximum peak pulse current (Ippm) of 184 A and a clamping voltage (Vc) of 21.7 V, ensuring that voltage spikes are suppressed quickly to protect downstream components. The device maintains a minimal maximum reverse leakage current of 200 nA at rated voltages, optimizing energy efficiency and reducing leakage loss.

Physically, the diode comes in a DO-214 package with dimensions of approximately 4.6 mm length, 3.95 mm width, and 2.45 mm height, facilitating compact PCB designs and easy automated placement. It operates reliably across a broad temperature range from -55°C to 150°C, suitable for use in various industrial, electronic, and communication applications requiring transient voltage protection.

While not certified to automotive standards, the SM6T12CA is ideal for protecting electronic assemblies in consumer electronics, industrial control systems, power supplies, and lighting systems. This TVS diode offers reliable surge protection to extend equipment life and reduce failure rates due to electrical overstress.

This product includes a single 1-element bi-directional TVS diode in a DO-214 surface mount package. Its compact size and high-energy absorption capability make it suitable for dense PCB layouts and harsh electrical environments.

Typical applications include power line protection, signal line transient suppression, and overvoltage protection for electronic modules. Explore STMicroelectronics products and other high-quality TVS Diodes available in the EnvMart electronics components category to find the perfect fit for your application needs.
