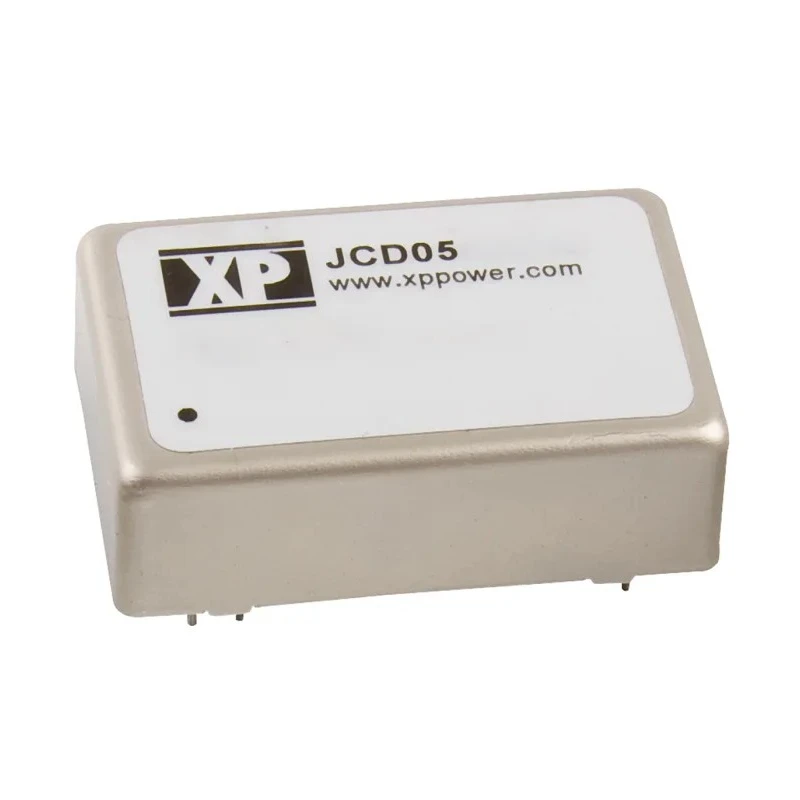

XP Power DC/DC Converter 24V DC Output 208mA 36V/18V Input 5W Through Hole DIP Package JCD0524S24
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCD DC/DC Converter, 24V dc/ 208 mA, 36V |
| Brand | XP Power |
| Efficiency | 84% |
| Length | 31.75mm |
| Model | JCD0524S24 |
| Depth | 10.4mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCD |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 5W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 208mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- It provides high isolation voltage of 1.6kV DC for safety.
- The device is designed to operate efficiently with 84% efficiency up to 100°C ambient temperature.
- Compact dimensions of 31.75mm length, 20.32mm width, and 10.4mm depth enable easy board mounting.
- It supports a continuous short circuit protection and has a mean time between failures (MTBF) of 1.1 million hours.
- Operating temperature range is from -40°C to +100°C, suitable for harsh environments.
- The product complies with RoHS standards for environmental safety.
- Its DIP package with 24 pins ensures secure through-hole mounting.
Product Description
XP Power JCD0524S24 DC/DC Converter is a highly reliable and efficient power supply component designed for converting input voltages between 18V and 36V DC to a regulated 24V DC output at 208mA with 5W maximum power.
This through-hole mount converter is packaged in a DIP type with 24 pins, measuring 31.75mm length, 20.32mm width, and 10.4mm depth, making it ideal for compact and standard industry circuit board layouts.
The converter supports a 2:1 input voltage range and provides isolation voltage up to 1.6kV DC, ensuring electrical safety and noise reduction in industrial and electronic applications. With a high efficiency rating of 84%, it delivers power effectively while minimizing heat dissipation.
Designed for robust performance, the device supports continuous short circuit protection and operates within a wide temperature range from -40°C to +100°C, enabling use in challenging industrial environments.
It is compliant with RoHS standards, reflecting adherence to environmental and safety regulations. The unit has a proven reliability with a mean time between failures (MTBF) of 1,100,000 hours, enhancing its suitability for mission-critical applications.
Typical applications include industrial power supplies, communication equipment, instrumentation, and embedded systems requiring isolated, efficient DC/DC voltage conversion. This device features a 2:1 input voltage ratio for flexible input requirements.
High isolation voltage of 1.6kV DC ensures safety and signal integrity. Continuous short circuit protection increases device reliability. Operating temperature range of -40°C to +100°C suits harsh environments. Compact DIP package enables easy integration into PCB designs.
Rated for 5W maximum output power at 24V and 208mA output current. High efficiency reduces power loss and thermal output. Compliance with RoHS environmental standards. Explore the Electronics & Electricals category at EnvMart for a wide selection of DC/DC Converters and power supply solutions from trusted manufacturers like XP Power.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is between 18V and 36V DC.
This unit has a maximum output power of 5W.
It provides a regulated output voltage of 24V DC at a current of 208mA.
The efficiency rating is 84%, which helps minimize heat dissipation during operation.
The dimensions of the DIP package are 31.75mm in length, 20.32mm in width, and 10.4mm in depth.
It offers a high isolation voltage of 1.6kV DC, ensuring safety and noise reduction.
The operating temperature range is from -40°C to +100°C, making it suitable for harsh environments.
Yes, this model supports continuous short circuit protection to enhance reliability.
The DIP package features 24 pins for secure through-hole mounting.
The mean time between failures (MTBF) is rated at 1.1 million hours, indicating high reliability.
Yes, it complies with RoHS standards for environmental safety.
Typical applications include industrial power supplies, communication equipment, and embedded systems requiring isolated DC/DC voltage conversion.
