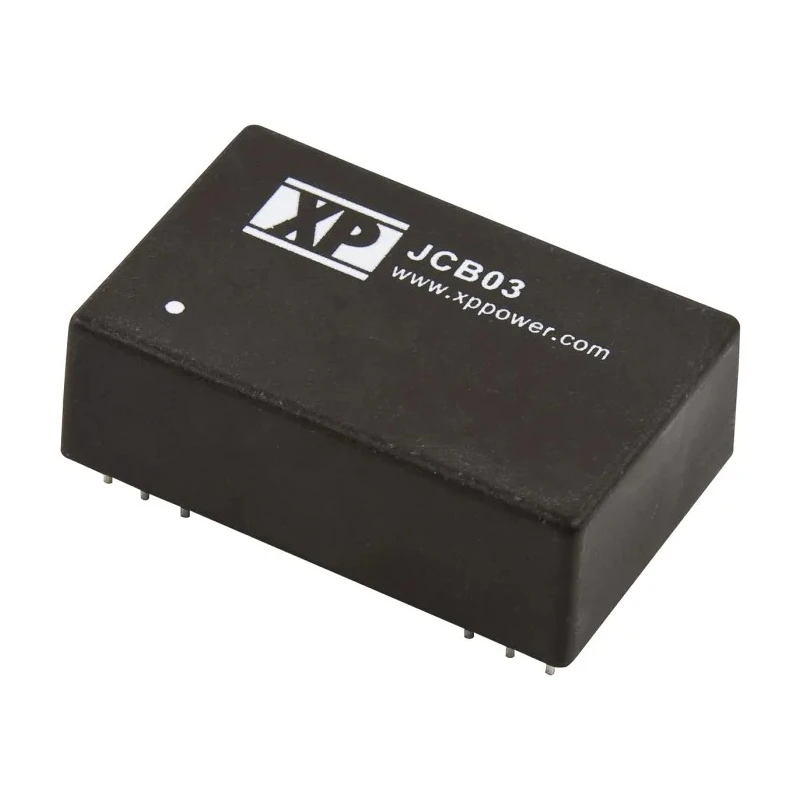

XP Power 3W Isolated DC/DC Converter, 24V DC Output, 130mA, 18V/9V DC Input, Through Hole Mount, DIP Package JCB0312S24
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCB DC/DC Converter, 24V dc/ 130 mA, 18V |
| Brand | XP Power |
| Efficiency | 79% |
| Length | 31.75mm |
| Model | JCB0312S24 |
| Depth | 10.16mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCB |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 24 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 130mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Offers 3 watts maximum output power with an output current of 130mA.
- Provides isolation voltage of 1.5kV DC ensuring electrical isolation between input and output.
- Compact design with dimensions 31.75mm length, 20.32mm width, and 10.16mm depth.
- High mean time between failure (MTBF) of 2,000,000 hours for reliable long-term operation.
- Features a standard DIP package suitable for through-hole mounting on circuit boards.
- Operating temperature range is from -40°C minimum to 100°C maximum for harsh environments.
- Efficiency of 79% ensures minimized power loss during conversion.
- Single output converter from the JCB series designed for industrial, power supply, and embedded applications.
Product Description
XP Power model JCB0312S24 is a precision-engineered 3W isolated DC/DC converter designed for efficient voltage regulation and power conversion. This device delivers a reliable 24V DC output at a current of 130mA, compatible with input voltages of both 18V and 9V DC, thanks to its 2:1 input voltage ratio. Packaged in a compact DIP through-hole mount form factor with 24 pins, it integrates seamlessly into a variety of electronic assemblies.
The converter offers robust isolation with a typical 1.5kV DC isolation voltage, ensuring safe operation between input and output circuitry. Its high MTBF rating of 2 million hours highlights its durability and resilience in industrial applications. Operating efficiently at 79%, it minimizes heat dissipation while maximizing power usage.
Designed to perform within a wide temperature range from -40°C to +100°C, it is suitable for demanding environments, including industrial and power management systems. The converter’s compact dimensions (31.75mm length × 20.32mm width × 10.16mm depth) allow flexible integration in space-constrained designs.
This JCB series DC/DC converter from XP Power is used extensively in industrial electronic equipment, telecommunications, measurement instruments, and embedded systems requiring reliable isolated voltage conversion.
Maximum output power of 3W ensures efficient power delivery for low-power systems. Through-hole DIP packaging facilitates easy soldering and maintenance on printed circuit boards. The isolation voltage of 1.5kV DC provides excellent protection against electrical faults.
Wide operating temperature range accommodates harsh environment applications. High MTBF guarantees extended operational life and reliability. Efficiency up to 79% reduces energy waste and thermal load. Single output configuration suits specialized application requirements.
Compact and industry standard package supports versatile industrial designs.
Choose XP Power JCB0312S24 to ensure dependable, efficient power conversion in your electronics projects and industrial applications. Browse more DC/DC Converters and power supply components at EnvMart to find the ideal fit for your power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 3 watts.
It supports input voltages of 9V to 18V DC, with a 2:1 input voltage ratio.
The output current is 130mA.
The isolation voltage is 1.5kV DC, ensuring electrical isolation between input and output.
The dimensions are 31.75mm in length, 20.32mm in width, and 10.16mm in depth.
The efficiency of this converter is 79%, which minimizes power loss during conversion.
It operates within a temperature range of -40°C to +100°C.
This model has a single output configuration.
It features a through-hole mounting type, suitable for circuit boards.
The MTBF is rated at 2,000,000 hours, indicating a reliable long-term operation.
The country of origin for this model is Taiwan.
It is designed for industrial, power supply, and embedded applications requiring reliable isolated voltage conversion.
