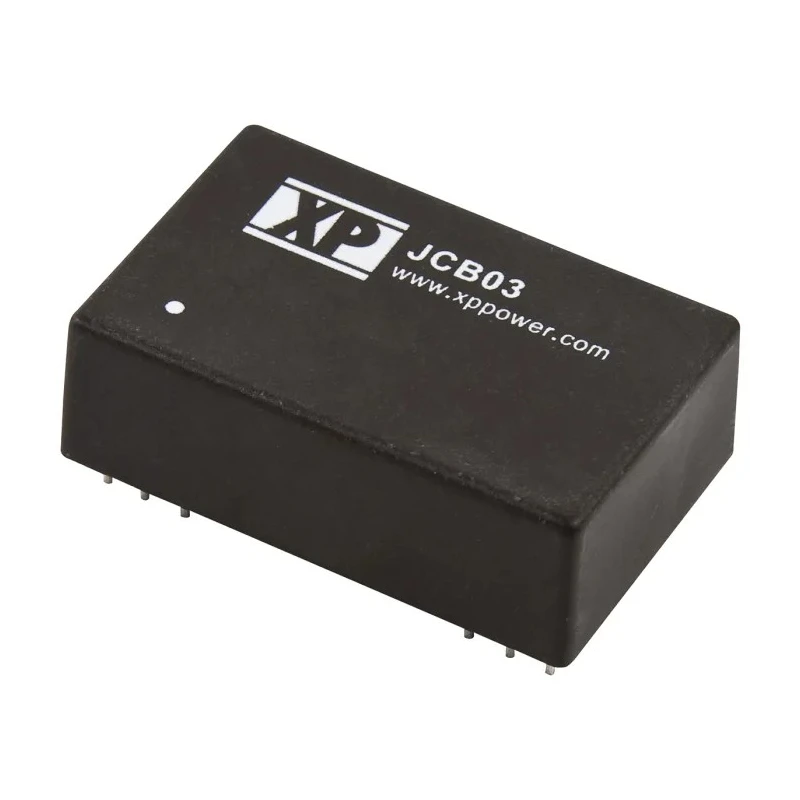

XP Power Isolated 3W Through Hole DC/DC Converter 5V 300mA 18-36V Input JCB0324D05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCB DC/DC Converter, 5V dc/ 300 mA, 36V d |
| Brand | XP Power |
| Efficiency | 78% |
| Length | 31.75mm |
| Model | JCB0324D05 |
| Depth | 10.16mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCB |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 300mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Provides isolated 5V DC output at 300mA.
- Supports wide input voltage range from 18V to 36V DC.
- Compact DIP package with 24 pins and through hole mount type.
- High reliability with MTBF of 2,000,000 hours.
- Isolation voltage rated at 1.5kV DC ensuring electrical isolation.
- Operating temperature range from -40°C to +100°C for harsh environments.
- Efficiency of 78% maintaining low power loss.
- Suitable for industrial and electronic applications requiring stable isolated power supply.
Product Description
XP Power JCB0324D05 is a reliable isolated DC/DC converter delivering 3W power with a standard 5V DC output at 300mA. Designed for through hole mounting, it provides robust electrical isolation at 1.5kV DC, making it suitable for sensitive electronic circuits.
Featuring a wide input range of 18V to 36V DC, this converter adapts to varying power supply conditions while maintaining efficient operation with 78% efficiency. Its compact DIP package (31.75mm x 20.32mm x 10.16mm) accommodates use on space-constrained PCBs.
The converter is rated to operate in harsh temperature environments from -40°C up to +100°C, ensuring performance stability in industrial applications such as instrumentation, communications, and control systems.
With a mean time between failures (MTBF) of 2,000,000 hours, the JCB series by XP Power exemplifies durability for continuous operation. Isolation voltage of 1.5kV DC ensures protection against electrical noise and faults.
Provides isolated 5V DC output at 300mA. Supports a 2:1 input voltage ratio from 18V to 36V DC. Packaged in a standard DIP with 24 pins. High MTBF of 2,000,000 hours for reliable use. Isolation voltage of 1.5kV DC for safety and noise reduction.
Operating temperature range from -40°C to +100°C. Compact dimensions ideal for dense electronic assemblies. Efficient power conversion with 78% efficiency. Ideal for industrial, telecommunications, power supplies, and instrumentation.
This DC/DC converter series is produced in Taiwan (Province of China) and meets industry standards for isolated power modules. It is an excellent solution for applications demanding steady and safe DC voltage transformation under demanding conditions.
Discover more DC/DC Converters and power supply solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a 5V DC output at a current of 300mA.
This model supports a wide input voltage range from 18V to 36V DC.
The efficiency of this converter is rated at 78%.
It has an isolation voltage rated at 1.5kV DC, providing electrical isolation.
The dimensions are 31.75mm in length, 20.32mm in width, and 10.16mm in depth.
It operates within a temperature range from -40°C to +100°C.
This unit features a total of 24 pins in its DIP package.
The MTBF for this converter is 2,000,000 hours, indicating high reliability.
It is designed for through hole mounting.
It is suitable for industrial and electronic applications requiring stable isolated power supply.
This model is part of the JCB series by XP Power.
This DC/DC converter is produced in Taiwan (Province of China).
