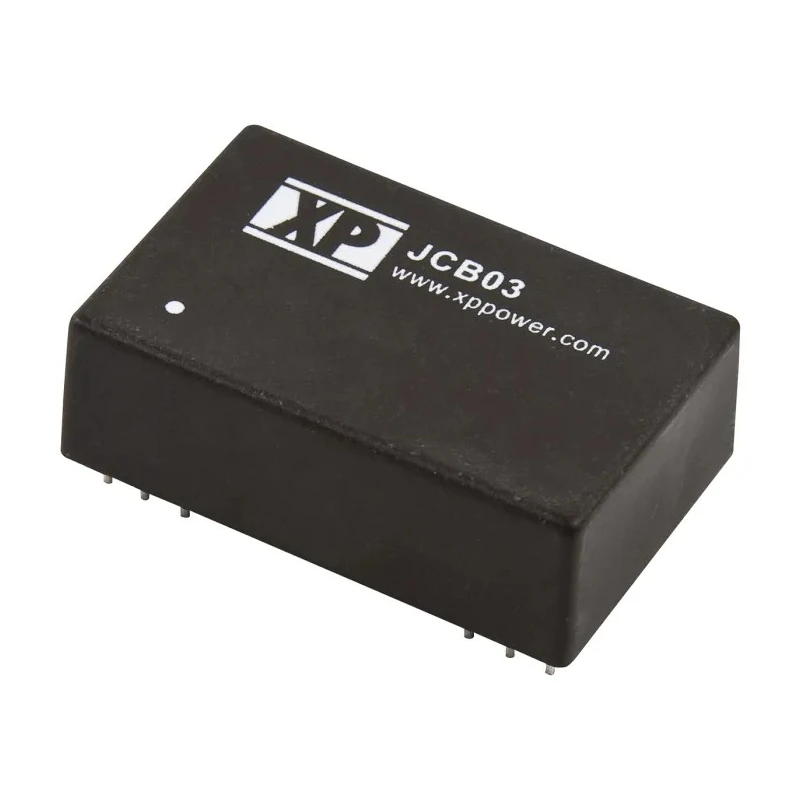

XP Power Isolated DC/DC Converter 24V 630mA Through Hole 3W JCB0312D24
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCB DC/DC Converter, 24V dc/ 630 mA, 18V |
| Brand | XP Power |
| Efficiency | 78% |
| Length | 31.75mm |
| Model | JCB0312D24 |
| Depth | 10.16mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCB |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 24 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 630mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Provides high isolation voltage of 1.5kV DC, ensuring electrical safety and noise reduction.
- Features a compact DIP package with 24 pins and through-hole mounting.
- Operating temperature range from -40°C to 100°C allows for reliable performance in harsh environments.
- High reliability with a mean time between failure (MTBF) of 2,000,000 hours.
- Efficiency rating of 78% maximizes power conversion performance.
- Physical dimensions are 31.75mm length, 20.32mm width, and 10.16mm depth.
- Designed for board mount applications with optional metal case availability.
- Suited for industrial, electronic components, power supply, and transformer applications.
Product Description
XP Power JCB0312D24 is a high-reliability isolated DC/DC converter providing a stable 24V DC output at 630mA with a maximum power of 3W. It supports a 2:1 input voltage ratio accepting inputs from 9V to 18V DC, making it highly adaptable for various power supply designs.
This device is packaged in a compact DIP through-hole mount suitable for printed circuit board integration, featuring 24 pins. Its isolation voltage of 1500V DC ensures safety and noise isolation in sensitive electronic equipment. The converter is designed to operate efficiently at 78%, balancing power consumption and heat dissipation.
The operating temperature range from -40°C to 100°C allows use in challenging industrial and commercial environments. With an impressive MTBF of 2,000,000 hours, this DC/DC converter offers dependable long-term operation.
Physical dimensions measure 31.75 mm in length, 20.32 mm width, and 10.16 mm depth, facilitating compact system integration. The JCB0312D24 series also provides optional metal case packaging for enhanced durability and electromagnetic compatibility.
Offers a 2:1 input voltage range with minimum 9V and maximum 18V inputs. High isolation voltage rating of 1.5kV DC to ensure safe operation and noise immunity. Compact DIP package with through-hole mounting for board-level applications.
Wide operating temperature from -40°C to 100°C supports harsh environments. Efficiency rating up to 78% for optimal power conversion performance. Mean time between failure (MTBF) of 2,000,000 hours guarantees long life.
This converter series is ideal for use in industrial electronics, power supply modules, transformer applications, and specialized electronic equipment requiring compact, reliable isolated DC power conversion.
Explore the comprehensive range of XP Power DC/DC Converters at EnvMart for reliable performance and efficient industrial power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 24V DC with an output current of 630mA.
It accepts a 2:1 input voltage range from 9V to 18V DC.
The efficiency rating is 78%, optimizing power conversion performance.
The dimensions are 31.75mm in length, 20.32mm in width, and 10.16mm in depth.
It features a high isolation voltage of 1.5kV DC, ensuring electrical safety and noise reduction.
The operating temperature range is from -40°C to 100°C, allowing for reliable performance in harsh environments.
The mean time between failure (MTBF) is 2,000,000 hours, indicating high reliability.
It is designed for through-hole mounting, suitable for printed circuit board integration.
This model has 24 pins, facilitating its connection in various applications.
It is ideal for industrial electronics, power supply modules, transformer applications, and specialized electronic equipment.
It comes in a compact DIP package, with optional metal case availability for enhanced durability.
The maximum output power of this converter is 3W.
