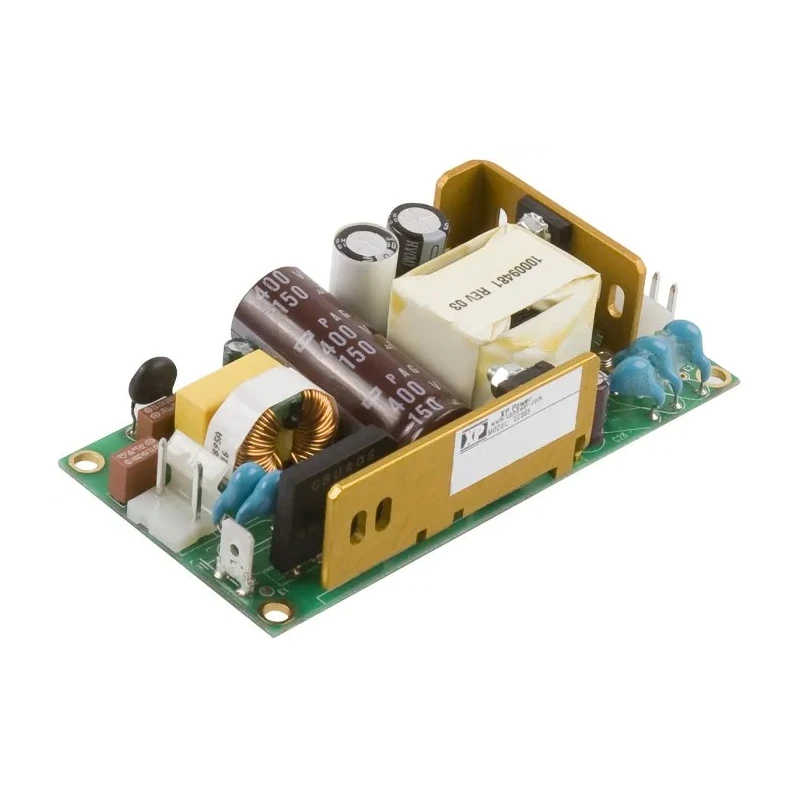

XP Power 65W 12V DC Switching Power Supply, Chassis Mount, ECS65US12

XP Power ECS65US12 Switching Power Supply is a medical and IT approved 65W AC-DC power converter designed for industrial and commercial use. It features a compact chassis mount form factor measuring 101.6mm length, 50.8mm width, and 23.2mm depth.

The power supply operates over a wide input voltage range from 120V to 264V AC, delivering a regulated 12V DC output at 5.4A current with up to 90% efficiency. It is convection cooled and supports ambient temperatures from -20°C to +70°C to ensure reliable operation in harsh environments.

Its construction features low leakage current and very low no load input power under 0.3W, making it energy efficient and compliant with stringent safety standards such as TUV 60601-1 and UL 60950-1. Certifications extend to compliance with EN and IEC standards including EMC, CB report, and medical safety.

This power supply is suitable for various industrial applications, including laboratory equipment, medical devices, manufacturing machinery, and IT systems. The ECS series emphasizes compact size with a small 2" x 3" footprint and an ultra-low profile height for easy integration.

Compact and convection-cooled chassis mount design. Operating temperature range from -20°C to +70°C for reliable performance. High efficiency up to 90% reduces energy waste. Single output providing 5.4A DC current. Supports wide input voltage range 120V to 264V AC.

Complies with multiple safety and medical standards including TUV and UL. Low leakage current and very low no load input power below 0.3W. Lightweight at 175 grams and compact 101.6 x 50.8 x 23.2 mm size. Ideal for IT, medical, industrial, and commercial power needs.
