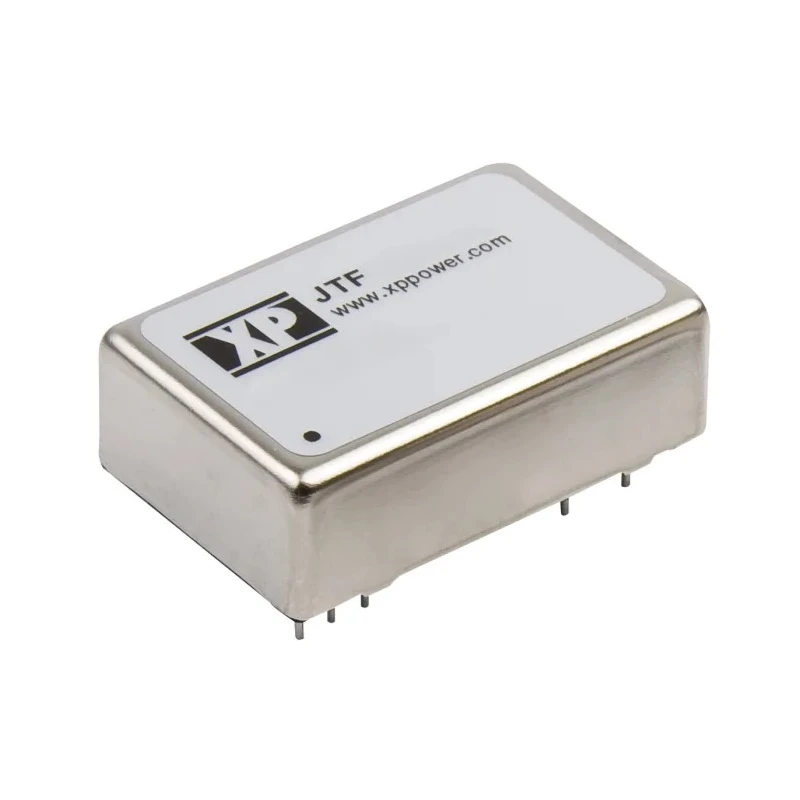

XP Power Isolated 8W Through Hole DC/DC Converter 5V Output 1.5A Input 9-36V JTF0824S05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JTF DC/DC Converter, 5V dc/ 1 |
| Brand | XP Power |
| Efficiency | 86% |
| Length | 31.75mm |
| Model | JTF0824S05 |
| Depth | 10.16mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JTF |
| Maximum Operating Temperature | +105°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 1 |
| Maximum Output Power | 8W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Number of Pins | 9 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 1.5A |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
| Wide 4 | 1 input range |
Key Features
- Wide input voltage range from 9V to 36V DC accommodates various power sources.
- High isolation voltage of 1600V DC ensures electrical safety and noise reduction.
- Operating temperature range from -40°C to +105°C suitable for harsh industrial environments.
- Efficiency up to 86% reduces power loss and heat generation.
- Compact design with dimensions 31.75mm length, 20.32mm width, and 10.16mm depth for PCB mounting.
- Single output with 1.5A current capacity supports stable power delivery.
- Standard remote on/off control for flexible power management.
- Manufactured under RoHS standards ensuring compliance with environmental regulations.
Product Description
XP Power JTF0824S05 is a high reliability isolated DC/DC converter featuring a single 5V output at 1.5A with an 8 watt maximum power rating delivered through a compact, industry standard DIP through-hole package.
This DC/DC converter accepts a wide input voltage range from 9V minimum up to 36V maximum, enabling versatile usage in various electrical and industrial applications.
The unit provides an impressive isolation voltage of 1600V DC, ensuring robust electrical isolation between input and output circuits, which enhances safety and reduces noise interference in sensitive equipment.
Designed to operate reliably within harsh environments, the converter supports a broad temperature range of -40°C to +105°C, ideal for industrial, laboratory, manufacturing, telecommunications, and power supply applications.
With operational efficiency reaching 86%, the device minimizes wasted energy and heat generation, contributing to improved system efficiency and longevity. Physical dimensions are compact and suitable for PCB mounting with a length of 31.75mm, width of 20.32mm, and depth of 10.16mm, and it employs a 9-pin DIP package configuration.
This model supports standard remote on/off control, facilitating integration into complex systems for power management and energy conservation. The JTF08 series is compliant with RoHS standards, promoting environmentally friendly manufacturing practices.
The mean time between failures (MTBF) rate is rated at 1,000,000 hours, reflecting high durability and reliability for continuous industrial operation. Wide 4:1 input voltage ratio enabling flexible power source compatibility.
1600 VDC isolation voltage for safety and noise immunity. Compact DIP through-hole package for easy PCB mounting. Operating temperature range supports extreme industrial conditions. High efficiency reduces power loss and cooling requirements.
Standard remote on/off for flexible system control. Robust construction suited for industrial and laboratory power supplies.
This XP Power DC/DC Converter is an ideal choice for applications needing reliable voltage conversion, isolation, and power efficiency including industrial automation, telecommunications, instrumentation, and power supply modules. Browse EnvMart electronics components for compatible converters and power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 8W.
It supports a wide input voltage range from 9V to 36V DC.
The isolation voltage is 1600V DC, providing robust electrical isolation between input and output circuits.
This unit has an efficiency rating of up to 86%, which helps reduce power loss and heat generation.
The dimensions are 31.75mm in length, 20.32mm in width, and 10.16mm in depth.
It operates within a temperature range of -40°C to +105°C, suitable for harsh industrial environments.
This model features a single output.
The output current capacity is 1.5A.
It uses a through-hole mounting type, suitable for PCB installation.
This model is compliant with RoHS standards, ensuring it meets environmental regulations.
The MTBF is rated at 1,000,000 hours, indicating high reliability for continuous operation.
Yes, it supports standard remote on/off control for flexible power management.
