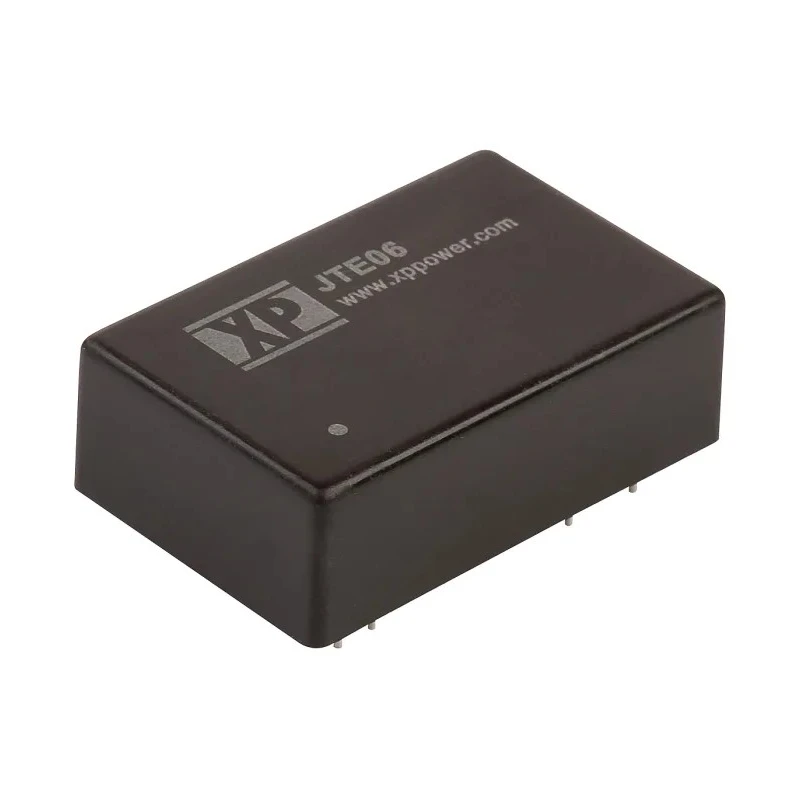

XP Power 6 W Isolated DC-DC Converter, 12V DC Output, 500 mA, 36V DC Max Input, 9V Min Input, Through Hole DIP-24 JTE0624S12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JTE DC/DC Converter, 12V dc/ 500 mA, 36V |
| Brand | XP Power |
| Efficiency | 84% |
| Length | 31.75mm |
| Model | JTE0624S12 |
| Depth | 10.4mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JTE |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP-24 |
| Minimum Operating Temperature | -40°C |
| MTBF | 800000h |
| Number of outputs | 1 |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 500mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
| Wide 4 | 1 input range |
Key Features
- This converter provides a 12V DC output voltage with 500 mA current.
- Maximum input voltage is 36V DC with a minimum input voltage of 9V.
- The device features a through-hole DIP-24 package suitable for board mounting.
- Operating temperature ranges from -40°C to 100°C, supporting industrial applications.
- It offers 1500 VDC isolation voltage ensuring electrical isolation and safety.
- The converter achieves an efficiency of 84%, optimizing power usage.
- MTBF rating is 800,000 hours, indicating high reliability and long lifespan.
- Compact dimensions measuring 31.75 mm length, 20.32 mm width, and 10.4 mm depth.
Product Description
XP Power JTE0624S12 is a 6W isolated DC-DC converter designed for reliable power conversion with a single 12V DC output and 500 mA output current. It supports a wide input voltage range from 9V to 36V DC, making it versatile for various input power sources.
Constructed in an industry-standard DIP-24 through-hole package, it ensures easy PCB mounting. The device operates efficiently with an 84% efficiency rating and provides 1500 VDC isolation for enhanced electrical safety and interference reduction.
Boasting a wide operating temperature range of -40°C up to 100°C, this converter suits demanding industrial and commercial environments. It has a high MTBF of 800,000 hours for dependable long-term service.
The compact size with dimensions 31.75 mm (L) x 20.32 mm (W) x 10.4 mm (D) allows integration into space-constrained designs. Its robust isolation and temperature tolerance make it ideal for industrial automation, telecommunications, instrumentation, and power supply applications.
This converter provides a 12V DC output voltage with 500 mA current. Maximum input voltage is 36V DC with a minimum input voltage of 9V. The device features a through-hole DIP-24 package suitable for board mounting. Operating temperature ranges from -40°C to 100°C, supporting industrial applications.
It offers 1500 VDC isolation voltage ensuring electrical isolation and safety. The converter achieves an efficiency of 84%, optimizing power usage. MTBF rating is 800,000 hours, indicating high reliability and long lifespan.
Compact dimensions measuring 31.75 mm length, 20.32 mm width, and 10.4 mm depth. Ideal for use in industrial, laboratory, and commercial power supply applications. It complies with standard industrial design and suitability criteria but has no additional approvals listed.
Suitable for industrial power supply systems, telecommunications equipment, laboratory devices, and other demanding electronics environments. Explore a wide selection of DC/DC Converters and related power supply components on EnvMart for your industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 12V DC output voltage with a current of 500 mA.
The maximum input voltage is 36V DC, while the minimum input voltage is 9V DC.
It achieves an efficiency of 84%, optimizing power usage.
The converter offers an isolation voltage of 1500 VDC, ensuring electrical isolation and safety.
The dimensions are 31.75 mm in length, 20.32 mm in width, and 10.4 mm in depth.
It operates within a temperature range of -40°C to 100°C, suitable for industrial applications.
This model has one output.
It features a through-hole DIP-24 package suitable for board mounting.
The mean time between failures (MTBF) rating is 800,000 hours, indicating high reliability.
It is suitable for industrial power supply systems, telecommunications equipment, and laboratory devices.
The input ratio is 4:1, allowing for a wide input voltage range.
The country of origin for this model is Taiwan.
