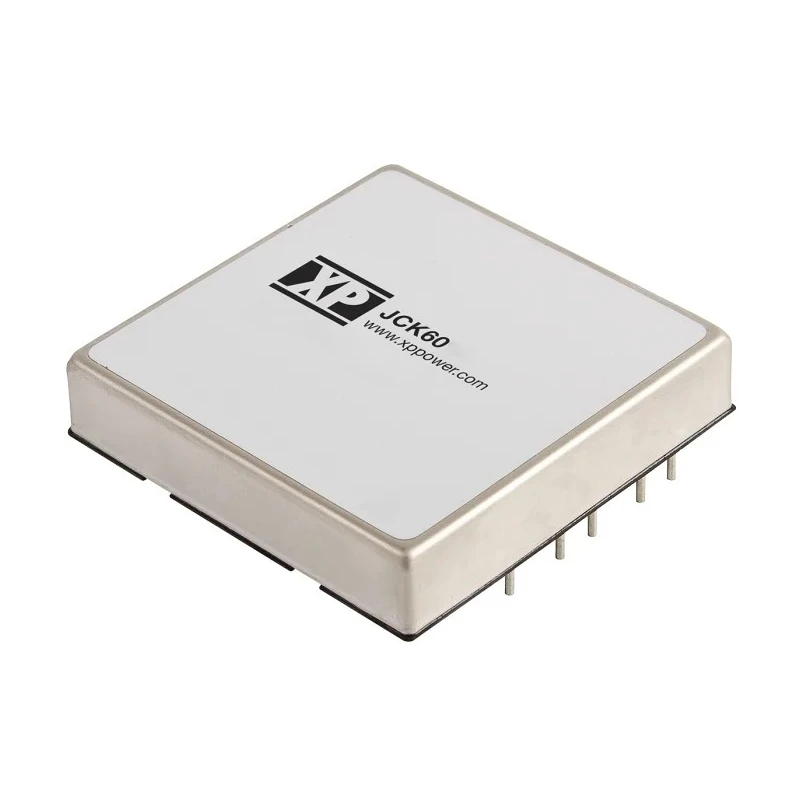

XP Power JCK Series DC/DC Converter 15V 2.67A 36V/18V Input Through Hole 40W 70°C Max -40°C Min JCK6024S12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCK DC/DC Converter, 15V/ 2 |
| Brand | XP Power |
| Efficiency | 92% |
| Length | 50.8mm |
| Model | JCK6024S12 |
| Depth | 10.16mm |
| Width | 50.8mm |
| Mount Type | Through Hole |
| Series | JCK |
| Maximum Operating Temperature | 70°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 330000h |
| Number of outputs | 1 |
| Maximum Output Power | 40W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 15V |
| Output Current 1 | 2.67A |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Compact 50.8mm x 50.8mm DIP package suitable for PCB mounting.
- Operating temperature range from -40°C to 70°C ensures robust performance.
- 1600 VDC isolation voltage providing safety and noise reduction.
- High efficiency up to 92% to minimize power loss and heat generation.
- Features remote on/off functionality for flexible power management.
- Designed for industrial and commercial power supply applications.
- Single output with output voltage adjustable between 18 V and 36 V input levels.
- 6-pin package supports easy integration in electronic circuits.
Product Description
XP Power JCK6024S12 is an isolated DC/DC Converter delivering 40 W power with a 15 V output voltage and a current of 2.67 A. It supports a wide input voltage range of 18 V to 36 V DC, making it suitable for various industrial and electronic power supply applications.
This through-hole mounted converter is housed in a standard DIP package measuring 50.8 mm square with a depth of 10.16 mm. It operates efficiently up to 92% and features a high isolation voltage of 1600 VDC, ensuring safety and noise immunity in sensitive environments.
The JCK60 series from XP Power supports remote on/off control, allowing flexible power management in complex systems. With an operating temperature range between -40°C and 70°C, this converter is well-suited for harsh industrial conditions.
Reliability is assured with an MTBF of 330,000 hours, and the unit includes built-in protections against overcurrent (OCP), overvoltage (OVP), and overtemperature (OTP) conditions. Its single output and compact form factor enable easy integration on printed circuit boards.
Compact industry standard DIP package for easy PCB mounting. High isolation voltage of 1600 VDC for safety and performance. Wide input voltage range from 18 V to 36 V DC supports flexible applications. High efficiency up to 92% to reduce energy loss.
Operating temperature range of -40°C to 70°C for harsh environments. Remote on/off control for advanced power management capabilities. Long MTBF of 330,000 hours ensures dependable operation. Includes protection features: OCP, OVP, and OTP for device safety.
Ideal for industrial, commercial, laboratory, and manufacturing power supplies.
This product is from XP Power's JCK series of isolated DC/DC converters, designed to meet demanding industrial power supply requirements. It is suitable for assembly in power distribution, control circuits, communication systems, and other electronic equipment requiring stable DC power conversion.
Explore more high-quality power products and DC/DC Converters at EnvMart to enhance your projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a single output voltage of 15V with a maximum output current of 2.67A.
The input voltage range for the JCK6024S12 is from 18V to 36V DC.
This unit has a maximum output power of 40W.
The converter is housed in a DIP package measuring 50.8mm x 50.8mm with a depth of 10.16mm.
The JCK6024S12 operates with an efficiency of up to 92%.
This model features an isolation voltage of 1600 VDC, ensuring safety and noise immunity.
The operating temperature range is from -40°C to 70°C, making it suitable for harsh environments.
Yes, it includes built-in protections against overcurrent (OCP), overvoltage (OVP), and overtemperature (OTP).
This model has a single output.
The MTBF for the JCK6024S12 is 330,000 hours.
It supports through-hole mounting, making it easy to integrate into PCB designs.
This DC/DC converter is designed for industrial and commercial power supply applications, including control circuits and communication systems.
