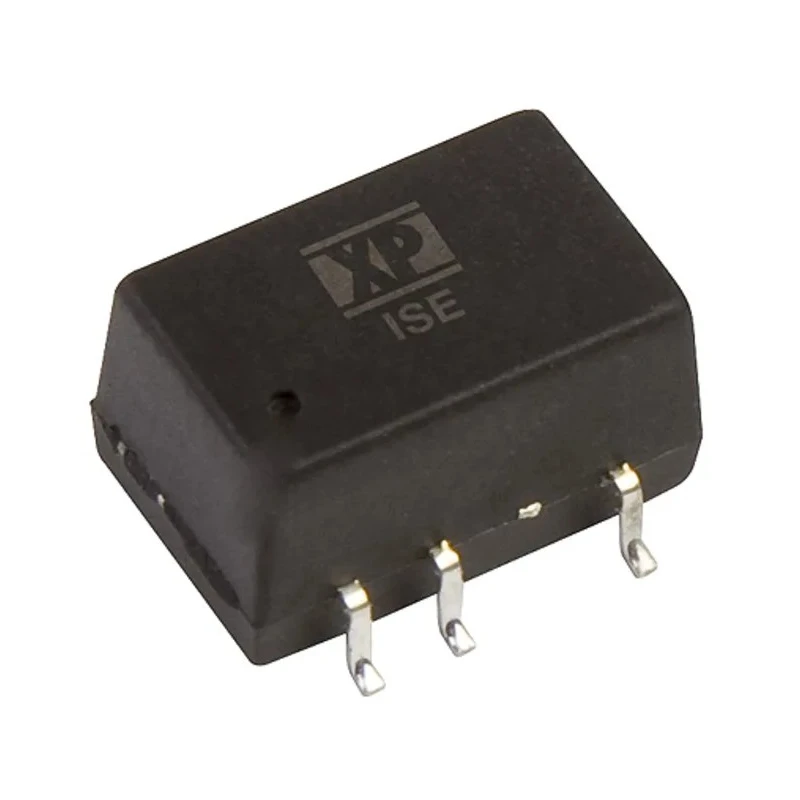

XP Power Isolated DC/DC Converter 5V DC 200mA Input 13.5-16.5V Surface Mount 1W 105°C ISE1505A
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power ISE DC/DC Converter, 5V dc/ 200 mA, 16 |
| Brand | XP Power |
| Efficiency | 80% |
| Length | 12.7mm |
| Model | ISE1505A |
| Depth | 7mm |
| Gross Weight | 1.5g |
| Width | 8.3mm |
| Mount Type | Surface Mount |
| Series | ISE |
| Maximum Operating Temperature | 105°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 3500000h |
| Number of outputs | 1 |
| Ripple and Noise | 30mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 16.5V dc |
| Standards/Approvals | UKCA, UL, CE |
| Minimum Input Voltage | 13.5V |
| Number of Pins | 8 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1.5kV dc |
Key Features
- Provides isolated 5V DC output with 200mA current capacity.
- Operates from 13.5V to 16.5V DC input voltage range.
- Compact surface mount design measuring 12.7mm x 8.3mm x 7mm.
- High efficiency of up to 80% suitable for board-level mounting.
- Wide operating temperature range from -40°C to 105°C ensures reliability in various conditions.
- Isolation voltage rating of 1.5kV DC for safety and noise reduction.
- Single output design with low ripple and noise of 30mV peak-to-peak.
- Certified with UKCA, UL, and CE standards.
Product Description
XP Power ISE1505A is an isolated DC/DC converter designed for reliable power conversion in industrial and commercial electronics. Delivering a regulated 5V DC output at 200mA with a power rating of 1W, this converter supports input voltages ranging from 13.5V to 16.5V DC. The compact surface mount device features dimensions of 12.7mm in length, 8.3mm width, and 7mm depth, making it suitable for board-level mounting in space-limited applications.
This converter provides up to 80% efficiency and an isolation voltage of 1.5kV DC, ensuring safety and signal integrity in noisy environments. Designed to operate reliably between -40°C and +105°C, it withstands demanding temperature conditions.
With a low ripple and noise performance of 30mV peak-to-peak, the ISE1505A is ideal for sensitive electronics requiring clean power. Its single output configuration simplifies design integration. The product complies with UKCA, UL, and CE certifications, confirming quality and regulatory standards.
Weighing just 1.5 grams and featuring a robust MTBF of 3.5 million hours, this XP Power series converter is tailored for industrial power supply applications, instrumentation, telecommunications, and embedded systems.
Its small footprint and surface mount package facilitate automated assembly and efficient PCB layouts, making it suitable for modern electronic equipment production lines. The high isolation and wide temperature rating enhance performance in industrial automation and control boards.
Provides isolated 5V DC output with 200mA current capacity. Operates from 13.5V to 16.5V DC input voltage range. Compact surface mount design measuring 12.7mm x 8.3mm x 7mm. High efficiency of up to 80% suitable for board-level mounting.
Wide operating temperature range from -40°C to 105°C ensures reliability in various conditions. Isolation voltage rating of 1.5kV DC for safety and noise reduction. Single output design with low ripple and noise of 30mV peak-to-peak.
Certified with UKCA, UL, and CE standards. Mean time between failure (MTBF) rated at 3,500,000 hours for long-term durability. Lightweight unit weighing only 1.5 grams, ideal for space-constrained applications. Explore XP Power DC/DC Converters and other power management solutions on EnvMart for industrial, laboratory, and electronic manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 5V DC with a current capacity of 200mA.
It operates from a minimum input voltage of 13.5V to a maximum of 16.5V DC.
The converter has a compact surface mount design measuring 12.7mm in length, 8.3mm in width, and 7mm in depth.
The ISE1505A has an efficiency rating of up to 80%.
It features an isolation voltage rating of 1.5kV DC, which helps ensure safety and reduce noise.
This unit can operate reliably within a temperature range of -40°C to +105°C.
The ISE1505A has a low ripple and noise specification of 30mV peak-to-peak.
This model is certified with UKCA, UL, and CE standards, confirming its compliance with regulatory requirements.
The MTBF for the ISE1505A is rated at 3.5 million hours, indicating its reliability over time.
This unit weighs only 1.5 grams, making it suitable for space-constrained applications.
It is designed for surface mount applications, facilitating efficient PCB layouts.
This converter features a single output design, simplifying integration into electronic systems.
