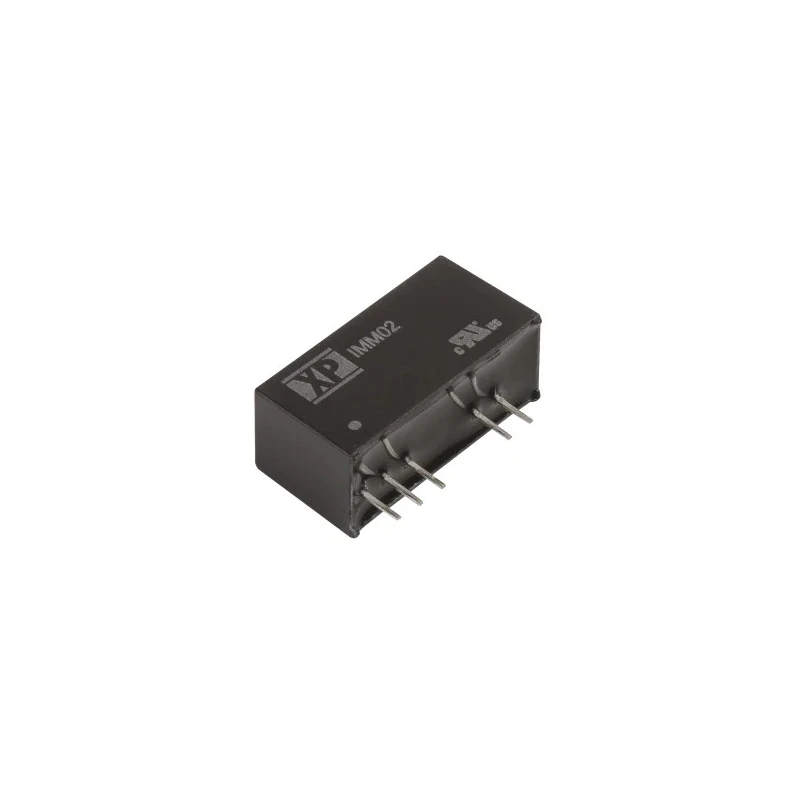

XP Power DC/DC Converter SIP8 Package 3.3V DC Output 300 mA 18V DC Input 2W Through Hole IMM0212D03
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | XP Power |
| Efficiency | 79% |
| Length | 21.85mm |
| Model | IMM0212D03 |
| Depth | 11.1mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | IMM |
| Maximum Operating Temperature | 100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -20°C |
| MTBF | 1000000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 300mA |
| Isolation Voltage | 1.5kV ac |
Key Features
- Offers a maximum output power of 2W with 79% efficiency.
- Features 1.5kV AC isolation for enhanced safety and performance.
- Designed to operate in temperatures ranging from -20 °C to +100 °C.
- Includes 2 outputs with a total of 8 pins for versatile circuit integration.
- Compact dimensions of 21.85mm length, 9.2mm width, and 11.1mm depth.
- High MTBF rating of 1,000,000 hours ensures excellent reliability.
- Compact SIP package suitable for through-hole mounting on PCBs.
- Manufactured in Taiwan, Province Of China.
Product Description
XP Power IMM0212D03 DC/DC Converter is part of the IMM02 series which offers high reliability isolated DC-DC converters delivering 2W output power. This converter features a compact SIP8 package with through-hole mount technology, enabling easy integration into PCB layouts.
The device supports a 3.3V DC output at 300 mA from input voltages between 9V and 18V DC. Isolation voltage capability is 1.5kV AC, providing strong electrical isolation suitable for sensitive electronic circuits and medical applications.
Rated to operate over an extensive temperature range from -20°C up to +100°C, this converter provides robust thermal performance while maintaining efficiency at 79%. Its high MTBF of 1,000,000 hours confirms its dependability for continuous industrial use.
The IMM0212D03 is equipped with 8 pins and 2 outputs, packaged in a compact footprint measuring 21.85mm by 9.2mm by 11.1mm, perfect for space-constrained applications. Although it has no formal standards or approvals listed, the series is medically approved worldwide, making it ideal for medical, industrial, and commercial power supply systems.
This converter is extensively used in industrial power supplies, laboratory equipment, medical devices, and other electronic systems requiring isolated DC power conversion for noise reduction and safety isolation.
Offers 3.3V DC output voltage at 300 mA. Wide input voltage range of 9V to 18V DC. High isolation voltage of 1.5kV AC for safety. Compact SIP8 through-hole package. Wide operating temperature range (-20°C to +100°C). Excellent reliability with 1 million hours MTBF.
79% efficiency ensuring energy savings. Compact dimensions suiting tight spaces on PCBs. Manufactured in Taiwan, Province Of China. Explore the wide range of XP Power DC/DC Converters available on EnvMart for your industrial and commercial power supply needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 2W.
This unit has an efficiency rating of 79%.
It supports an input voltage range from 9V to 18V DC.
The converter provides a 3.3V DC output voltage.
This model features 2 outputs.
It has an isolation voltage capability of 1.5kV AC.
The dimensions of the SIP8 package are 21.85mm in length, 9.2mm in width, and 11.1mm in depth.
It operates within a temperature range of -20°C to +100°C.
The mean time between failures (MTBF) rating is 1,000,000 hours.
This model uses through-hole mounting technology.
It is manufactured in Taiwan, Province Of China.
It is suitable for industrial power supplies, laboratory equipment, and medical devices requiring isolated DC power conversion.
