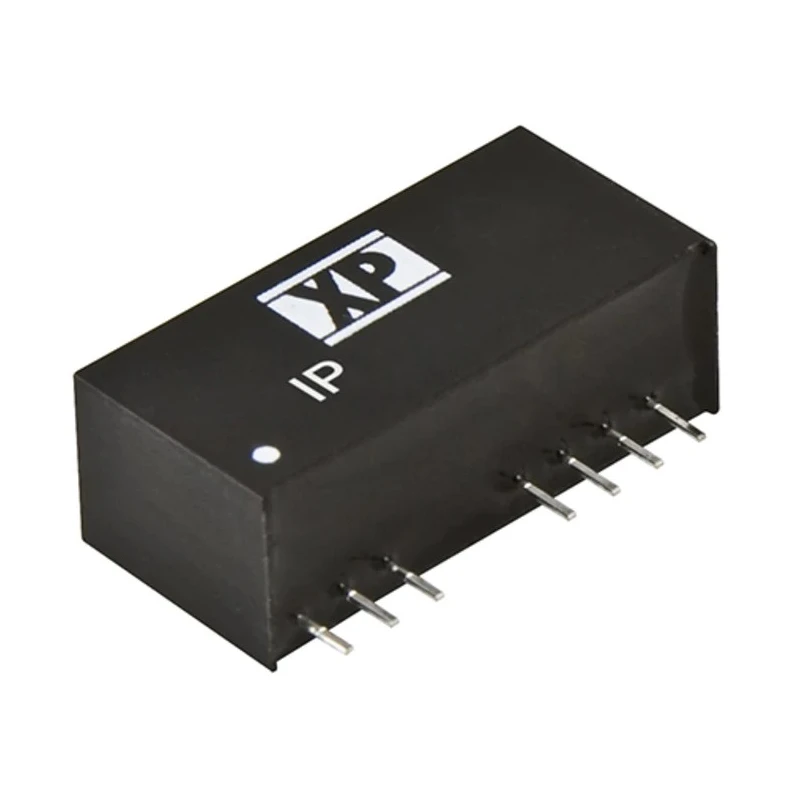

XP Power IP Series 3W Isolated DC/DC Converter 3.3V DC 700mA 18 - 75V DC Input Through Hole SIP Package IP4803SA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | XP Power |
| Efficiency | 74% |
| Length | 21.85mm |
| Model | IP4803SA |
| Depth | 11.1mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | IP |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1700000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 8 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 700mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Isolated DC/DC converter provides 3W output power for stable voltage supply.
- Wide input voltage range from 18V to 75V DC suitable for varied power sources.
- Through-hole SIP package with 8 pins enables easy PCB integration.
- Operates reliably from -40°C up to 85°C ambient temperature.
- High isolation voltage of 1.6kV DC ensures protection and noise immunity.
- Efficiency of approximately 74% optimizes power usage.
- MTBF rating of 1,700,000 hours for long-term reliability.
- Single output design for straightforward power management.
Product Description
XP Power brand IP4803SA DC/DC Converter is a highly reliable isolated power supply module that delivers 3.3V DC output at 700mA with a maximum output power of 3W. Designed for industrial and electronic power supply applications, it supports a broad DC input voltage range from 18V up to 75V, making it suitable for use with various battery and power source configurations.
This converter is packaged in a through-hole SIP form factor with 8 pins for robust mechanical and electrical connections on printed circuit boards. It provides 1.6kV DC isolation between input and output to ensure signal integrity and safety in sensitive industrial environments.
The device operates efficiently at approximately 74% efficiency and is rated to function reliably within a wide temperature range from -40°C low to a maximum of +85°C, suitable for harsh environments. The compact physical dimensions (21.85 mm length x 9.2 mm width x 11.1 mm depth) allow it to fit into space-constrained applications.
With a high MTBF of 1,700,000 hours, the IP4803SA ensures long-term operational stability and durability in mission-critical power management systems. The XP Power IP series offers continuous short circuit protection and remote on/off control options.
This DC/DC converter is ideal for industrial electronics, instrumentation, telecommunications equipment, and other applications requiring isolated low-voltage power solutions. It facilitates efficient power conversion in embedded systems, automation equipment, and data communication hardware.
Isolated 3W DC/DC converter for regulated low voltage output. Wide 18 to 75V DC input range supports diverse input supplies. Through-hole SIP package with standard pin layout for easy integration. Operating temperature range supports harsh environmental conditions.
High isolation voltage provides electrical safety and noise immunity. Compact size fits modern electronic designs and assemblies. Up to 74% efficiency reduces energy loss and thermal footprint. Long MTBF enhances reliability for industrial applications.
Includes short circuit protection and remote on/off functionality. Explore the full range of XP Power DC/DC Converters on EnvMart for reliable, efficient power management solutions in your projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output voltage of 3.3V DC and a maximum output current of 700mA.
The input voltage range for this unit is from 18V to 75V DC.
It operates with an efficiency of approximately 74%.
The isolation voltage is rated at 1.6kV DC, ensuring protection and noise immunity.
The dimensions are 21.85mm in length, 9.2mm in width, and 11.1mm in depth.
It operates reliably within a temperature range of -40°C to +85°C.
This converter has a single output design.
It uses a through-hole SIP package for mounting.
The mean time between failures (MTBF) is rated at 1,700,000 hours.
It is suitable for industrial electronics, instrumentation, telecommunications equipment, and embedded systems.
This model includes continuous short circuit protection and remote on/off control options.
The maximum output power is 3W.
