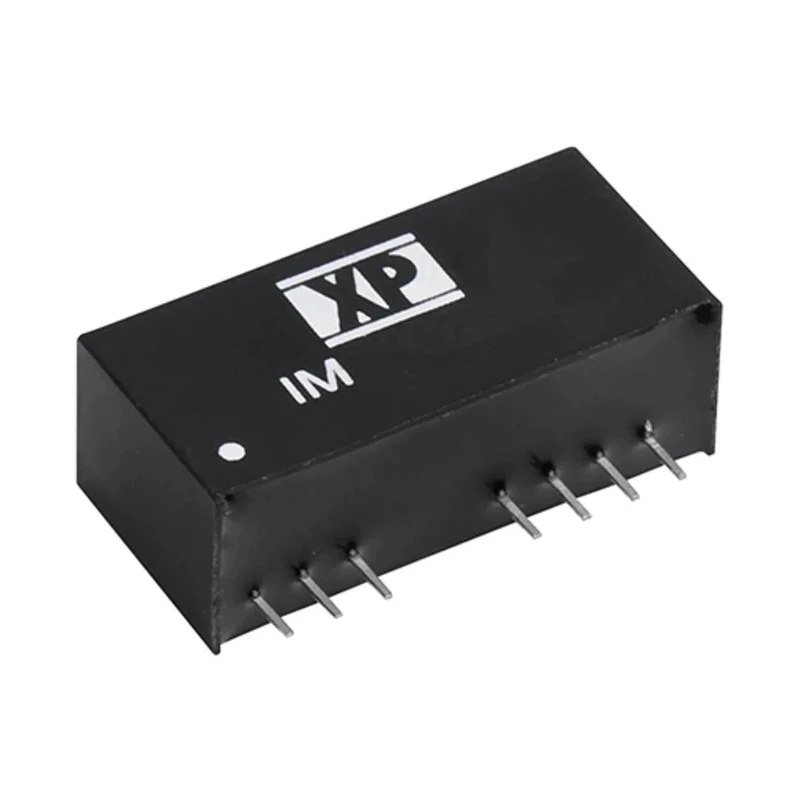

XP Power 2W Isolated Dual Output DC/DC Converter 15 V, -15 V, 65 mA, 9-36 V Input IM2415S

XP Power IM2415S is a highly reliable, isolated dual output DC/DC converter rated at 2 watts. It delivers 15 V and -15 V outputs with a maximum output current of 65 mA each, accommodating inputs ranging from 9 V to 36 V DC. Packaged in an industry-standard single inline package (SIP) with through-hole mounting, it ensures easy integration into electronic circuit boards.

Designed to operate efficiently with an 82% efficiency rating, the device provides continuous short circuit protection and remote on/off capabilities enhancing system safety and control. Its wide 4:1 input voltage range enables versatile application across varying input power scenarios.

The unit supports an isolation voltage of 1.5 kV DC facilitating safe electrical separation between input and output. It maintains reliable operation over a temperature span from -40°C to 100°C, suitable for demanding industrial and electronic applications.

With a high MTBF of 1.2 million hours, the IM2415S converter offers long-term durability for mission-critical equipment. Its compact dimensions (26 mm x 9.2 mm x 12.5 mm) allow for space-efficient PCB layouts.

This converter is ideal for industrial, laboratory, and communication equipment requiring isolated dual voltage rails. The through-hole SIP package supports both manual and automated PCB assembly. Its robust design supports continuous operation in environments with temperature extremes.

The device is part of XP Power's IM Series, known for quality and reliability in power electronics. Applications include instrumentation, control systems, and embedded computing solutions. Country of origin is Taiwan, Province Of China. Product condition is new.
