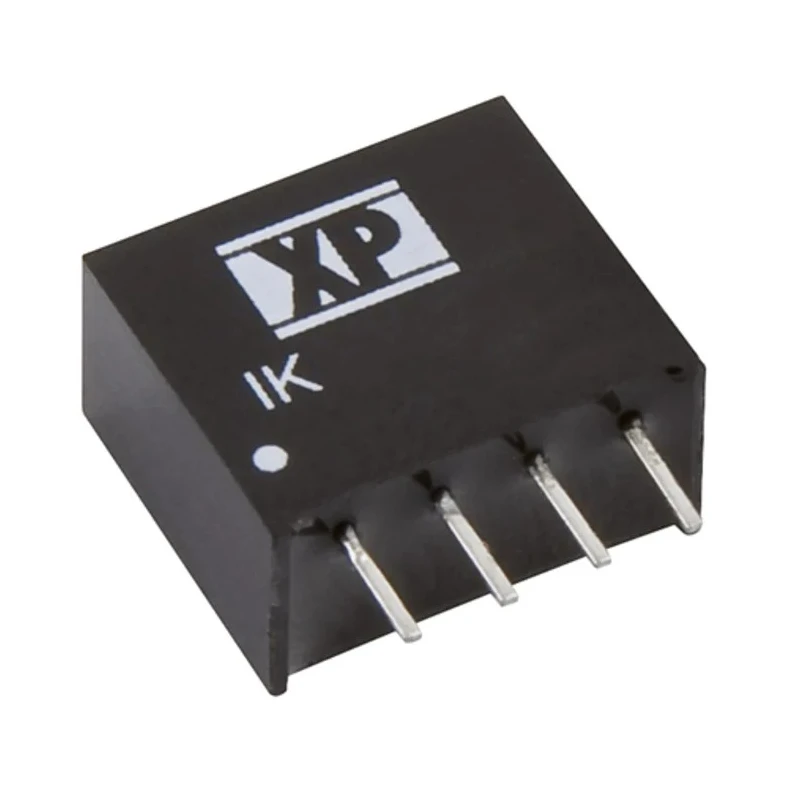

XP Power Isolated DC-DC Converter 24 V DC Output, 10.41 mA, 4.5 - 5.5 V DC Input, 0.25 W, Through Hole SIP Package IK0524SA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IK DC/DC Converter, 24V dc/ 10 |
| Brand | XP Power |
| Efficiency | 70% |
| Length | 11.68mm |
| Model | IK0524SA |
| Depth | 10.15mm |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | IK |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 0.25W |
| Maximum Input Voltage | 5.5V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 4 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 10.41mA |
| Isolation Voltage | 1kV dc |
Key Features
- Designed for reliable isolated power conversion with 1 kV DC isolation voltage.
- Compact SIP package measuring 11.68 mm length, 6 mm width, and 10.15 mm depth.
- Wide operating temperature range from -40°C to 85°C for harsh environments.
- High mean time between failures (MTBF) of 1,100,000 hours ensures long service life.
- Efficiency rated at up to 70% for energy conscious applications.
- Single output converter suitable for various electronic and industrial equipment.
- Industry standard through-hole mounting facilitates PCB integration.
- Package type SIP with 4 pins for robust installation.
Product Description
XP Power IK0524SA is a highly reliable isolated DC-DC converter offering a single 24 V DC output at 10.41 mA. It accepts an input voltage range from 4.5 V to 5.5 V DC delivering a maximum output power of 0.25 W. The device features 1 kV DC isolation, enhancing system safety and noise reduction in sensitive electronic and industrial applications.
Housed in a compact SIP (Single In-line Package) through-hole mounting type, the converter measures 11.68 mm in length, 6 mm in width, and 10.15 mm in depth, making it ideal for space-constrained designs. It operates efficiently up to 70% with a wide ambient temperature range of -40°C to 85°C, making it suitable for demanding environments including industrial automation, instrumentation, embedded systems, and communications equipment.
The robust design supports a high MTBF of 1,100,000 hours, ensuring dependable long-term operation. With a 4-pin configuration, installation on printed circuit boards is straightforward and reliable. This product is manufactured in Taiwan, Province Of China, and does not carry any specific certifications or approvals.
Reliable isolated power conversion with 1 kV DC isolation voltage. Compact and industry-standard SIP through-hole packaging. Wide temperature range from -40°C to 85°C. High MTBF rating ensures extended operational reliability.
Efficiency of up to 70% for energy efficient designs. Single output suitable for diverse electronic applications. 4-pin configuration for stable PCB mounting. Manufactured in Taiwan, Province Of China.
This DC-DC converter by XP Power is a trusted component in power management within industrial, embedded, and communication system applications. It provides efficient isolation and voltage regulation to protect sensitive circuits and improve system stability.
Explore more power converters and related electronic components at EnvMart for your professional industrial and laboratory requirements.
Explore more products in our DC/DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 24 V DC.
It accepts an input voltage range from 4.5 V to 5.5 V DC.
The maximum output power of this unit is 0.25 W.
This model has an efficiency rating of up to 70%.
The SIP package measures 11.68 mm in length, 6 mm in width, and 10.15 mm in depth.
The isolation voltage of the IK0524SA is 1 kV DC.
It operates within a temperature range of -40°C to 85°C.
This DC-DC converter has a single output.
The MTBF for this model is rated at 1,100,000 hours.
It features through-hole mounting, which facilitates PCB integration.
The package has 4 pins for installation.
This product is manufactured in Taiwan, Province Of China.
