XP Power 1W Isolated DC/DC Converter, 9V DC Output, 10mA, 24V DC Input, SIP Package, Through Hole Mount, -40°C to IV2409S

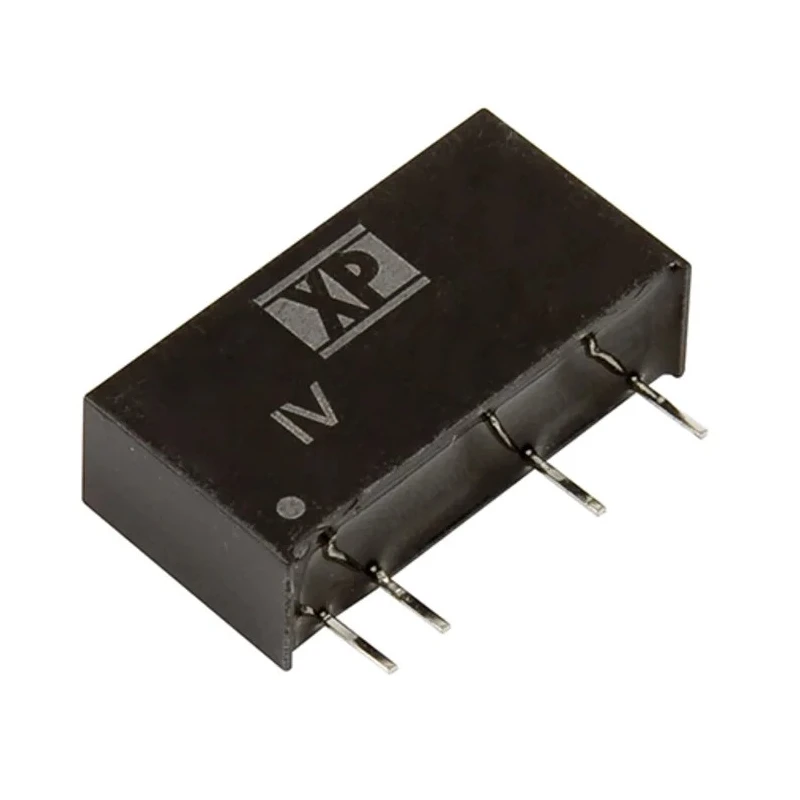

XP Power IV2409S is a compact and highly reliable 1 watt isolated DC/DC converter that provides 9V DC output at 10mA with a maximum input voltage of 24V DC. Packaged in a SIP form factor and designed for through hole mounting, this device offers robust electrical isolation of 3000 VDC between input and output, crucial for safety and noise reduction in electronic circuits.

Operating efficiently at 75%, the converter supports a wide temperature range from -40°C to 85°C, making it suitable for industrial and commercial applications. Its small dimensions (19.5mm length, 9.5mm depth, and 6mm width) allow for dense PCB layouts and space-saving designs.

The IV2409S model supports dual output configurations and includes an output voltage adjustment range of 0 to 24 V, giving designers flexibility in power regulation. The product meets RoHS environmental directives, ensuring compliance with global standards.

This DC/DC converter is ideal for use in industrial automation, telecommunications, instrumentation, and power management systems requiring isolated power supplies with reliable long-term performance. The Mean Time Between Failures (MTBF) is rated at 1,100,000 hours, highlighting its durability.

This converter offers a maximum output power of 1 watt with high reliability. It features a 3000 VDC isolation voltage for enhanced safety and signal integrity. The device operates efficiently with an efficiency rating of 75%.

The operating temperature range spans from -40°C up to 85°C, allowing for use in diverse environments. Designed for through hole mounting with a compact SIP package measuring 19.5mm x 9.5mm x 6mm (LxDxW). Suitable for industrial, commercial, and laboratory DC power conversion needs requiring isolated supply.

Includes 2 outputs and operates with an output current of 10mA at 9V DC. Offers wide input voltage range from 0V to 24V DC for flexible application. Complies with RoHS standards for environmental safety. Manufactured in Taiwan, Province Of China, ensuring quality production standards.

Explore the XP Power range of DC/DC Converters at EnvMart, ideal for your next industrial power supply design project.
