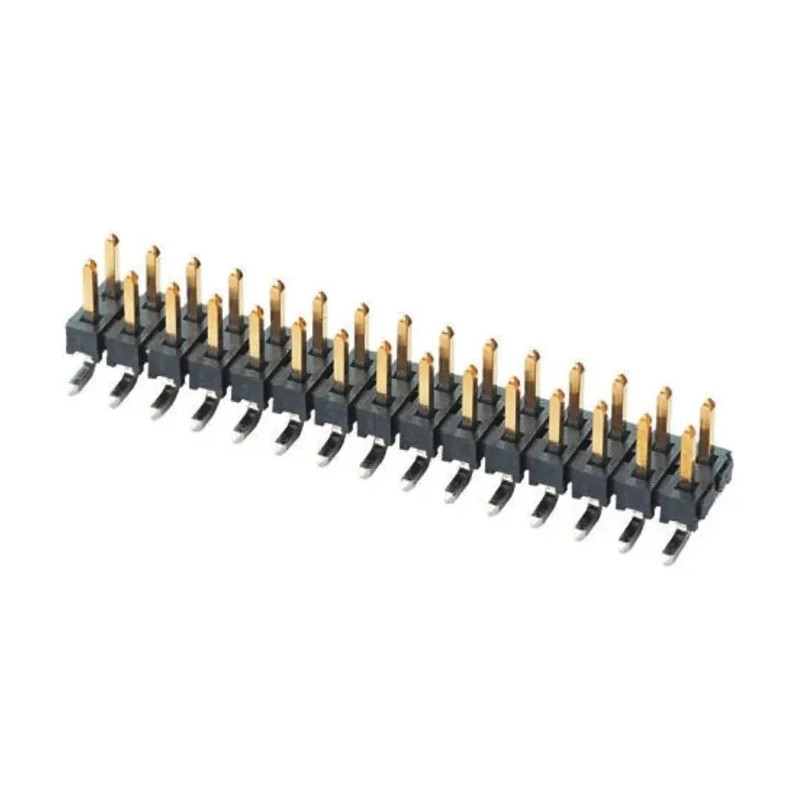

Samtec TMM Series Straight Surface Pin Header 30 Contacts 2 mm Pitch 2 Row Unshrouded TMM-115-01-L-D-SM-N

The Samtec TMM-115-01-L-D-SM-N is a high-quality, straight surface mount pin header designed for advanced electronic component interconnections. This 2 mm pitch, 30 contact, 2-row, unshrouded header is engineered to provide reliable board-to-board and wire-to-board connections in industrial and commercial electronics applications.

Featuring phosphor bronze contacts with gold plating, this connector ensures excellent electrical conductivity and corrosion resistance. The contact pins are 3.2 mm long with a 0.5 mm square cross-section, optimizing both mechanical and electrical performance. The housing is manufactured from black liquid crystal polymer (LCP), offering excellent thermal stability and durability, with an operating temperature range from -55°C to 125°C when gold plated.

The low-profile design with a height of 2.77 mm facilitates compact PCB layouts while maintaining robustness. The solder termination type allows for secure placement on PCB surfaces using surface mount technology (SMT). Rated for a maximum current of 3.9 A and voltage of 500 V, it is suitable for demanding electronic circuits.

Samtec’s TMM Series headers are known for their precision and compatibility with a variety of Samtec socket series such as SQT, SQW, TLE, SMM, and MMS, enabling modular and flexible assembly. The unshrouded configuration provides ease of inspection and soldering during manufacturing processes.

Typical industrial applications include electronics manufacturing, telecommunications, computing devices, and instrumentation. The connector’s durable materials and reliable contact plating make it ideal for use in harsh environments and critical equipment.

Constructed with phosphor bronze contacts plated with gold for improved conductivity. Operating temperature range from -55°C to 125°C with gold plating for durability. Mount type is surface mount technology (SMT) for versatile PCB assembly.

Insulator made of black liquid crystal polymer (LCP) ensuring high performance. Contact pins have a length of 3.2 mm and a square cross-section of 0.5 mm. Rated for current up to 3.9A and voltage up to 500V suitable for various electronics applications.

Compatible with Samtec Sockets series such as SQT, SQW, TLE, SMM, and MMS for reliable mating connections. Unshrouded design enables easy inspection and soldering on printed circuit boards. Low profile SMT header with height of 2.77 mm supports compact device designs.
