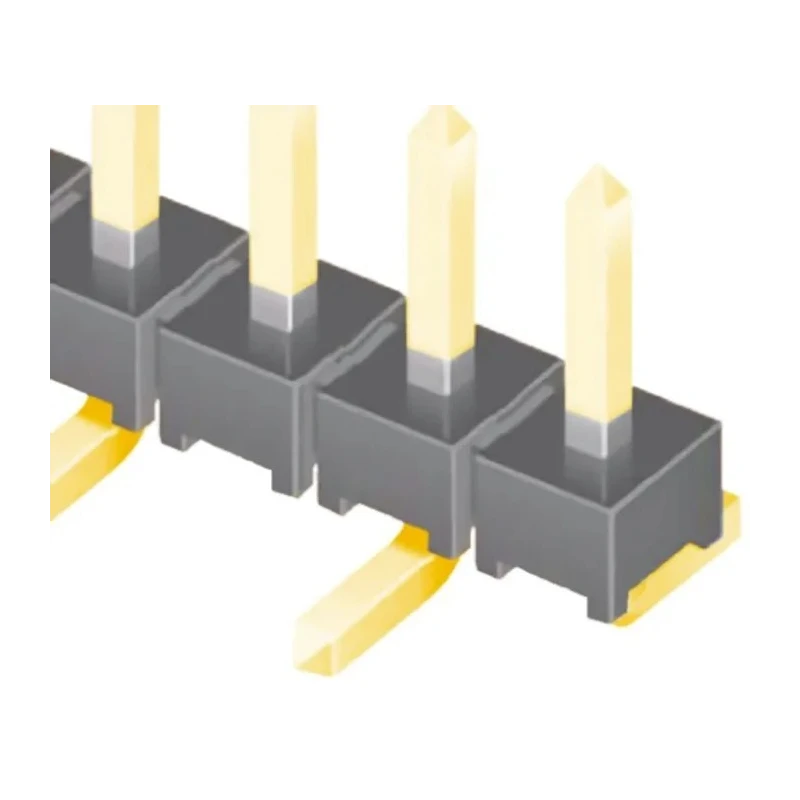

Samtec TMM Series Straight Surface Pin Header 4 Contacts 2 mm Pitch 1 Row Unshrouded TMM-104-01-G-S-SM

Samtec TMM-104-01-G-S-SM is a Straight Surface Pin Header from the TMM Series, featuring 4 contacts spaced at a 2 mm pitch in a single row configuration. This unshrouded connector is engineered for low-profile SMT PCB applications, with a profile height of approximately 2.77 mm. Its construction includes phosphor bronze contacts plated with gold to ensure excellent electrical performance and long-term reliability.

The black Liquid Crystal Polymer (LCP) housing provides outstanding mechanical strength and thermal stability, suitable for operating temperatures ranging from -55°C to +125°C. This pin header supports both board-to-board and wire-to-board connector systems, with solder termination and male contact gender for versatility in PCB design.

The connector is rated for a maximum current of 3.9A and a voltage of 500V, making it appropriate for demanding industrial, telecommunications, manufacturing, and electronic assembly environments. The tail pin length is 3.5 mm, and the mating pin length is 3.2 mm, designed for secure mechanical and electrical connections.

This low-profile pin header mates with a variety of Samtec socket series, including SQT, SQW, TLE, SMM, and MMS, enhancing modularity and ease of installation in complex electronic systems.

The connector features phosphor bronze contacts with gold plating for reliable conductivity and corrosion resistance. The housing is made from black Liquid Crystal Polymer (LCP) ensuring durability at elevated temperatures.

Operating temperature ranges from -55°C to 125°C, suitable for harsh environments. Designed for surface mount technology with gold plated 3.2 mm long 0.5 mm square posts. This pin header supports board-to-board and wire-to-board connections with male contact gender and solder termination.

It has a maximum voltage rating of 500V and current rating of 3.9A. The connector is unshrouded, facilitating easy mating with compatible sockets like SQT, SQW, TLE, SMM, and MMS series. Tail pin length measures 3.5 mm ensuring secure soldering to the PCB.

Ideal for industrial electronics, telecommunications, and high-reliability PCB assemblies.

This product is well suited for industrial electronic assemblies, telecommunications equipment, manufacturing machinery, and any application demanding robust and reliable PCB connector solutions. Explore more products and download technical documents for precise integration in your projects with EnvMart’s extensive electronic components catalog.
