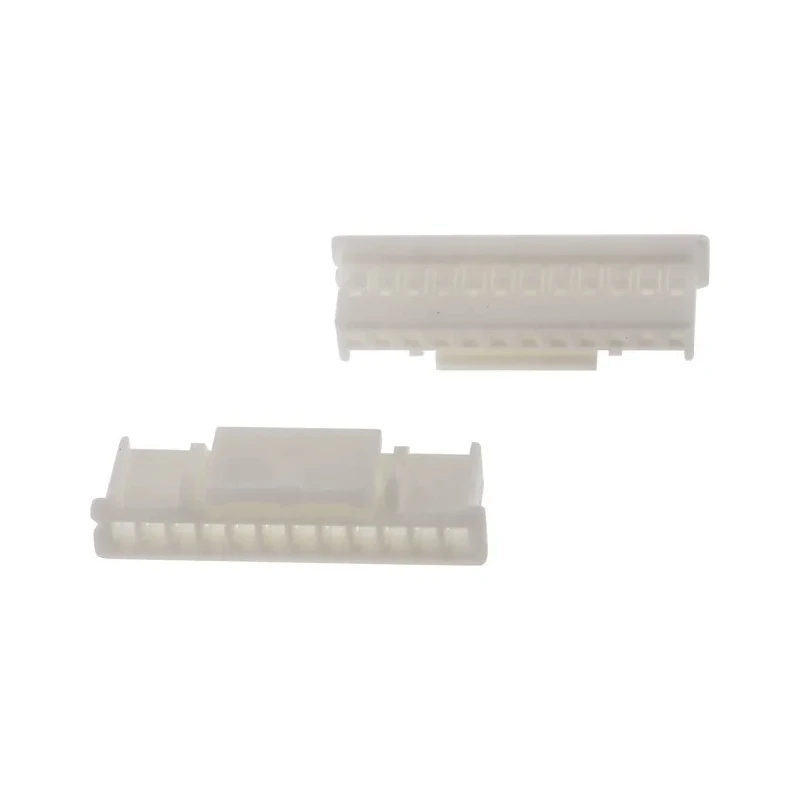

JST PA Series 2 mm Pitch 12 Way 1 Row Straight Female Connector Housing PAP-12V-S
Specifications
| Country of Origin | India |
|---|---|
| Brand | JST |
| Orientation | Straight |
| Length | 26mm |
| Model | PAP-12V-S |
| Width | 5.8mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | PA |
| Number of Rows | 1 |
| Pitch | 2mm |
| For Use With | Crimp Connector |
| Number of Contacts | 12 |
| Connector Gender | Female |
Key Features
- Features a 2 mm pitch design for precise electrical connections.
- Houses 12 contacts arranged in a single row for efficient space utilization.
- Constructed from durable nylon housing material ensuring robust performance.
- Designed for cable mount with female connector gender orientation.
- Incorporates additional locking features for secure connections.
- Ideal for industrial controls, household appliances, and networking systems.
- Straight orientation enables straightforward cable routing and assembly.
- Compact dimensions of 26 mm length and 5.8 mm width support space-constrained applications.
Product Description
JST PAP-12V-S female connector housing is part of the PA Series, designed to provide a reliable 2 mm pitch connector solution with 12 contacts arranged in a single row. This cable mount connector features a straight orientation and robust nylon housing, making it ideal for secure wire-to-board connections in various industrial and commercial applications.
The connector housing provides a compact form factor measuring 26 mm in length and 5.8 mm in width, suitable for integration in space-sensitive electronic assemblies. Its additional locking mechanism ensures vibration-resistant and secure mating with compatible fittings, making it suitable for use in household appliances, industrial controls, and storage or networking systems.
This 12-way female connector housing supports crimp connector wiring and benefits from the low insertion force header design inherent in the PA Series. While it does not specify any formal standards or approvals, the PA Series is recognized for reliable performance under typical usage conditions.
Key features include precise 2 mm pitch spacing, durable nylon construction, and a thumb depress locking mechanism that prevents accidental disconnection. The straight orientation supports straightforward assembly and cable management.
2 mm pitch design ensures precise connectivity. Durable nylon housing offers long-lasting reliability. 12 contacts arranged in one row optimize wiring density. Includes locking features to prevent accidental disconnection.
Compatible with crimp connectors for secure wire attachment. This connector housing serves well in electronics manufacturing, industrial power connectors, and networking hardware where stable, vibration-resistant connections are necessary.
Explore our wide range of Connector Housings and accessories in the Electronics & Electricals category at EnvMart to find complementary components for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The JST PAP-12V-S connector housing features a 2 mm pitch design for precise electrical connections.
This model accommodates 12 contacts arranged in a single row.
The connector housing measures 26 mm in length and 5.8 mm in width, making it compact for space-constrained applications.
It is designed for cable mount, facilitating secure wire-to-board connections.
The housing is constructed from durable nylon material, ensuring robust performance.
The connector housing has a straight orientation, which supports straightforward cable routing and assembly.
Yes, it incorporates additional locking features to ensure secure connections and prevent accidental disconnection.
This connector housing is compatible with crimp connectors for secure wire attachment.
It is ideal for use in industrial controls, household appliances, and networking systems, where stable connections are necessary.
This model features a single row for efficient space utilization.
The connector housing is manufactured in India.
It belongs to the PA Series, which is recognized for reliable performance under typical usage conditions.
