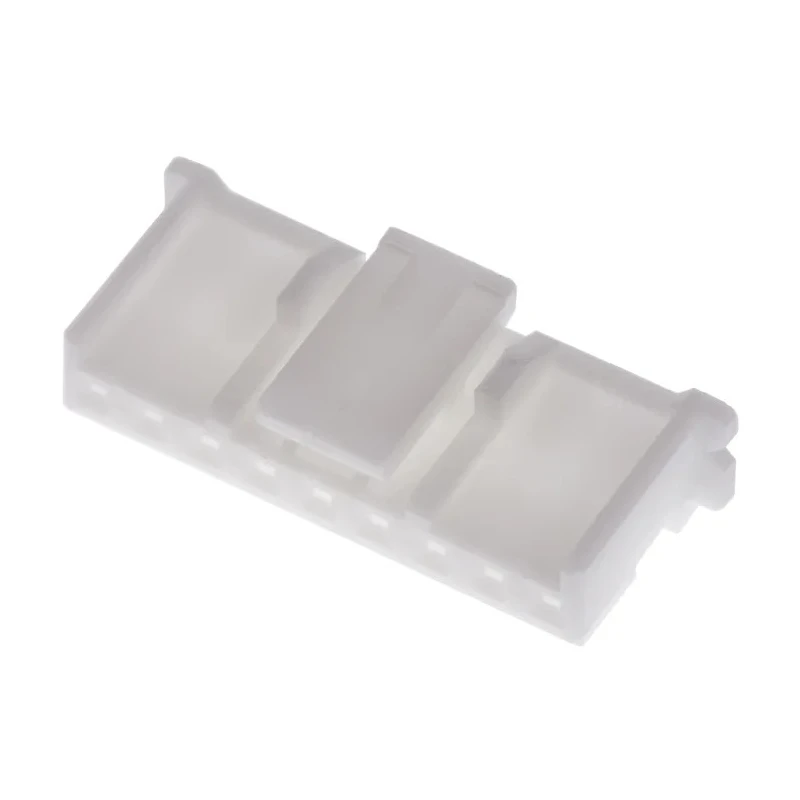

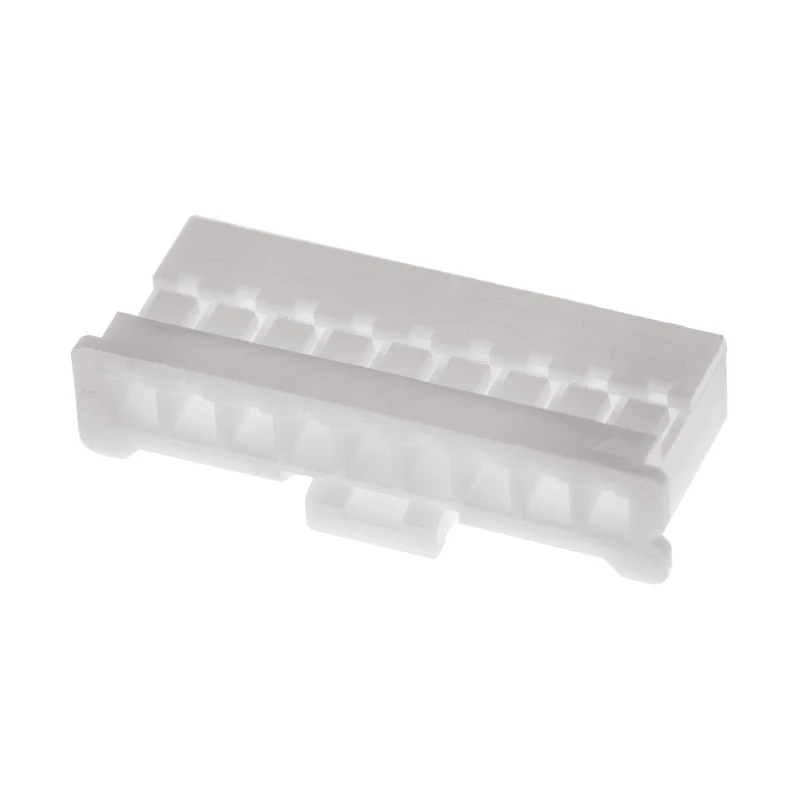

JST PA Female Connector Housing, 2 mm Pitch, 9 Way, 1 Row Straight PAP-09V-S
Specifications
| Country of Origin | India |
|---|---|
| Brand | JST |
| Orientation | Straight |
| Length | 20mm |
| Model | PAP-09V-S |
| Width | 5.8mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | PA |
| Number of Rows | 1 |
| Pitch | 2mm |
| For Use With | Crimp Connector |
| Number of Contacts | 9 |
| Connector Gender | Female |
Key Features
- Crafted from durable nylon housing for long-lasting performance.
- Designed for cable mount with a straight orientation.
- Compatible with crimp connectors offering a reliable connection.
- Compact size with 5.8 mm width and 20 mm length suitable for tight PCB layouts.
- Equipped with additional locking features to prevent accidental disconnection.
- Ensures secure anti-vibration connection for industrial and electronic applications.
- Widely used in household appliances, industrial controls, and networking systems.
- Part of the PA series offering a standard 2 mm pitch interface.
Product Description
JST PAP-09V-S female connector housing features a 2 mm pitch and 9 contacts arranged in a single row, providing a reliable and compact wire to board connection. This connector housing is molded from high-quality nylon, ensuring durability, chemical resistance, and electrical insulation.
Its cable mount type with a straight orientation makes it ideal for secure connections in electronic assemblies involving crimp connectors. The housing includes locking mechanisms to prevent accidental vibrations or disconnections, which is critical in demanding industrial environments.
Common applications include household appliances, industrial control equipment, storage systems, and network infrastructure, where vibration resistance and compact form factor are key requirements.
The PA series connectors with 2.0 mm pitch are widely respected for their secure locking and ease of use. This model includes polarizing guides for proper mating and low insertion force pins to facilitate assembly.
Materials and build quality comply with industry standards to support a long service life in harsh conditions. The JST PA Female Connector Housing is a proven solution for engineers and designers seeking dependable PCB connector housings.
Crafted from durable nylon housing for long-lasting performance. Designed for cable mount with a straight orientation. Compatible with crimp connectors offering a reliable connection. Compact size with 5.8 mm width and 20 mm length suitable for tight PCB layouts.
Equipped with additional locking features to prevent accidental disconnection. Ensures secure anti-vibration connection for industrial and electronic applications. Widely used in household appliances, industrial controls, and networking systems.
Part of the PA series offering a standard 2 mm pitch interface. Provides easy and secure insertion with polarizing guides. Explore our extensive catalog of Connector Housings and related electronic components on EnvMart for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the JST PAP-09V-S connector housing is 2 mm.
This model features 9 contacts arranged in a single row.
The connector housing is made from nylon, which provides durability and chemical resistance.
The JST PAP-09V-S has a width of 5.8 mm and a length of 20 mm.
It is designed for cable mount applications.
Yes, it is compatible with crimp connectors, ensuring a reliable connection.
The orientation of this connector housing is straight.
Common applications include household appliances, industrial control equipment, storage systems, and network infrastructure.
Yes, it includes locking mechanisms to prevent accidental disconnections and vibrations.
This connector is part of the PA series, which offers a standard 2 mm pitch interface.
The country of origin for this connector housing is India.
It features polarizing guides for proper mating and low insertion force pins to facilitate assembly.
