Recom 40W Single/Triple Output Regulated Isolated DC/DC Converter Through Hole RP40

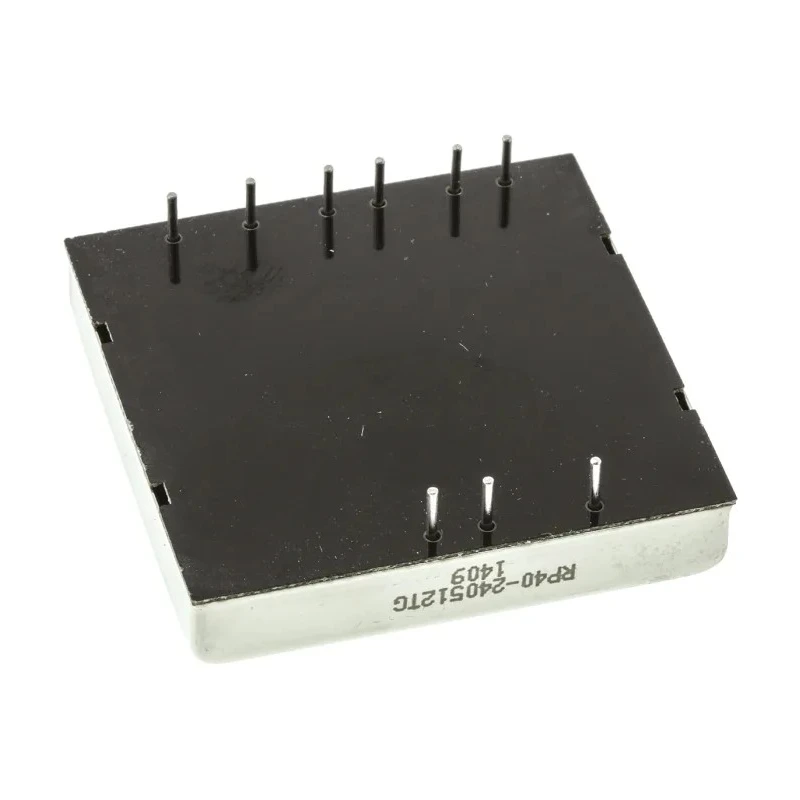

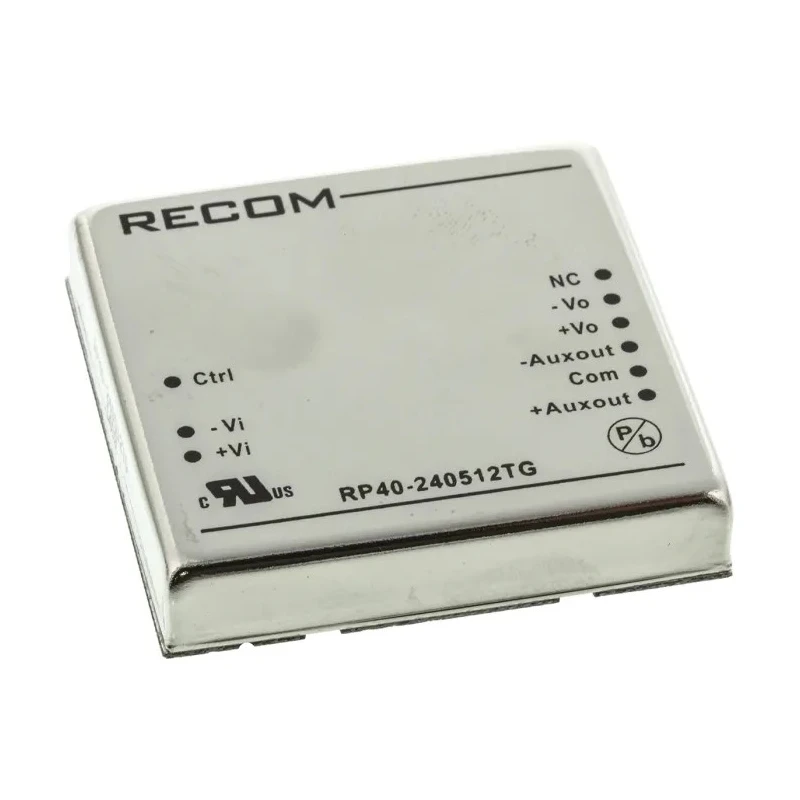

Recom RP40-240512TG is a 40W DC/DC converter in the RP40 G series, designed to deliver regulated and isolated power supply outputs of 12V dc and -12V dc with a maximum output current of 400mA. This converter features a through hole mount with a compact 2 x 2 inch metal shielded package including an insulated base to ensure safety and thermal stability.

Operating over a wide input voltage range from 18V to 24V dc, it achieves high efficiency of up to 87%, making it suitable for industrial, electronic, HVAC, manufacturing, and power management applications where precise voltage regulation and isolation are crucial.

The unit includes design features such as L-C input filters for noise reduction and a remote ON/OFF control pin for flexible operation. Built-in protections include hiccup automatic short circuit protection and overvoltage protection to prevent damage during fault conditions.

With an isolation voltage rating of 1.6kV dc and a robust Mean Time Between Failure (MTBF) of over 1.39 million hours, this DC/DC converter guarantees reliable and safe performance over a broad temperature range from -40°C to +85°C (with derating).

The 9-pin configuration and standard package size provide ease of integration onto PCBs for various power conversion needs. It is compliant with RoHS standards and recognized under UL safety approvals.

Ideal for use in electronic components, power supply units, industrial automation, and other demanding applications requiring stable DC voltage conversion and electrical isolation.

The converter supports an input voltage range from 18V dc to 24V dc. It provides regulated outputs of 12V dc and -12V dc at 400mA current each. High efficiency up to 87% ensures reduced power loss. Designed with 1.6kV dc isolation voltage for enhanced safety and noise immunity.

Compact metal shielded case with insulation provides thermal management up to 85°C maximum operating temperature. Through hole mount with 9 pins and standard 2 x 2 inch package size facilitates easy PCB integration. Includes L-C input filters and remote ON/OFF control pin for versatile circuit control.

Automatic short circuit hiccup protection and overvoltage safeguards enhance reliability. Complies with RoHS and UL recognized standards, ensuring quality and regulatory adherence. Robust Mean Time Between Failure (MTBF) of 1,398,000 hours assures long operational life.
