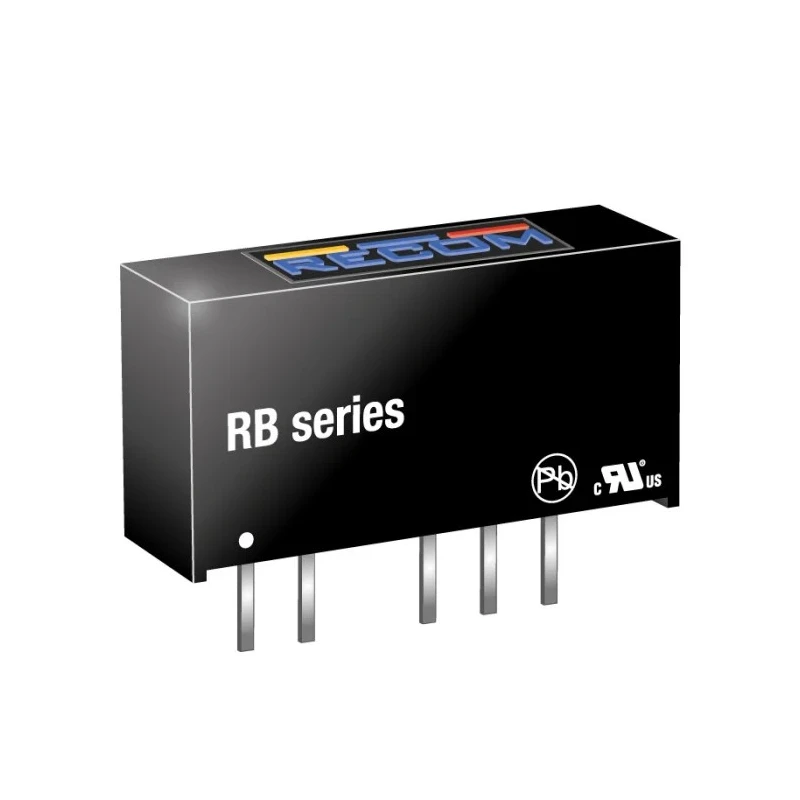

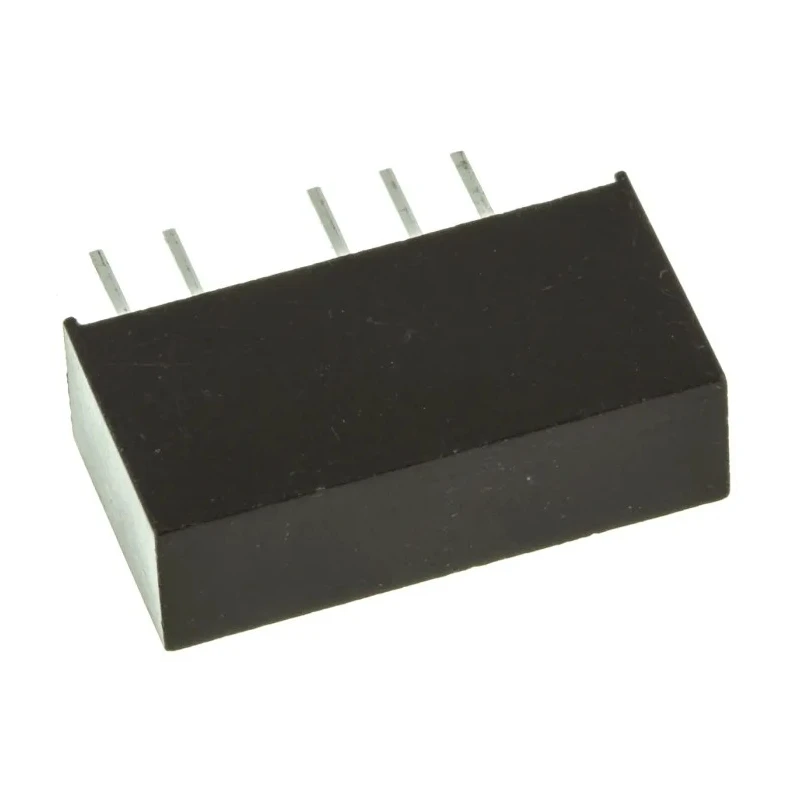

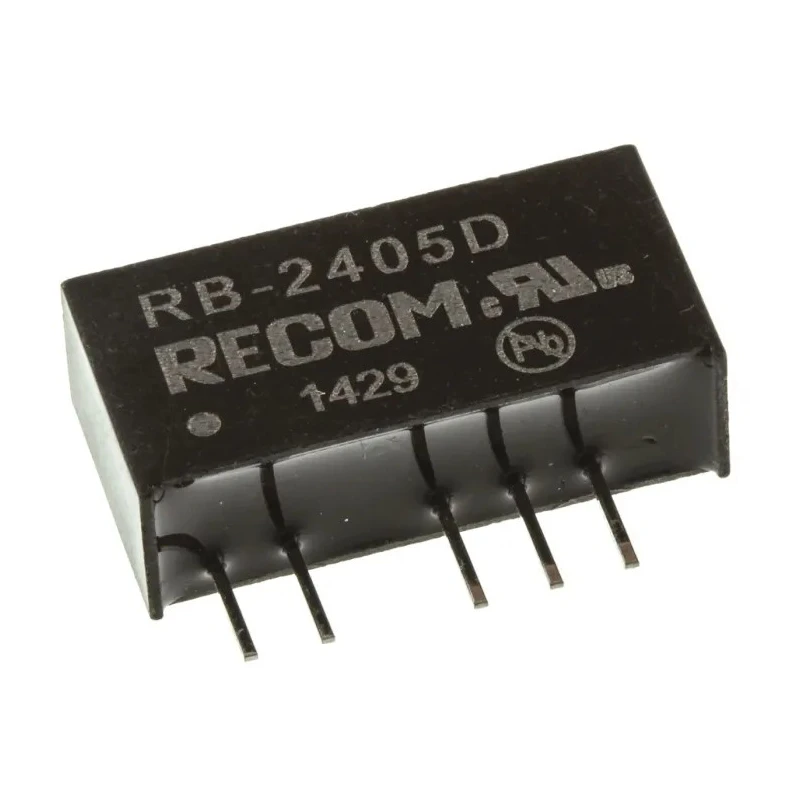

Recom DC/DC Converter, Through Hole Mount, Dual 5V and -5V Output, 100mA, 24V DC Input, 1W Power, 85% Efficiency, RB-2405D

The Recom RB-2405D DC/DC Converter is a robust electronic component designed for efficient power supply in electronic and industrial applications. Its through-hole mount design facilitates straightforward installation on printed circuit boards.

This converter operates over a wide input voltage range of 21.6V to 24V DC, maintaining a ±5% output voltage accuracy. Its typical efficiency of 85% at full load helps minimize energy wastage, promoting energy savings and thermal management. The device is engineered to perform reliably in environmental conditions ranging from a low of -40°C up to 85°C, making it suitable for demanding and industrial-grade applications.

The RB-2405D features a compact SIP package measuring 19.6mm in length and 10.2mm in both width and depth, enabling space-saving designs. It supports 7 pins and offers an isolation voltage rating of 500V AC, which provides electrical isolation for safety and noise immunity. The converter's ripple and noise level is maintained at 100mV peak-to-peak to ensure clean output power.

Its robust construction and conformance to RoHS and UR standards guarantee environmental safety and compliance with global electronics manufacturing requirements. Applications include industrial electronics, telecommunications, factory energy solutions, and other electronic services requiring stable and isolated dual-output DC power.

Key features include short-circuit protection with a 1-second response time, ability to function in high humidity up to 95%, and a mean time between failures (MTBF) of 151,000 hours, underscoring its reliability.

Through-hole mounting facilitates easy PCB integration. Dual 5V and -5V outputs with 100mA current each. Wide input voltage range of 21.6V to 24V DC. Compact SIP package with dimensions 19.6×10.2×10.2 mm. Operating temperature from -40°C to +85°C supports harsh conditions.

High efficiency of 85% reduces power dissipation. Isolation voltage of 500V AC for enhanced safety. Complies with RoHS and UR certifications.

This Recom RB-2405D DC/DC Converter is an ideal choice for professionals and engineers seeking compact, reliable power conversion solutions in industrial, telecommunications, and electronic device applications. Browse EnvMart's extensive Electronics & Electricals category for more converters and power supply options.
