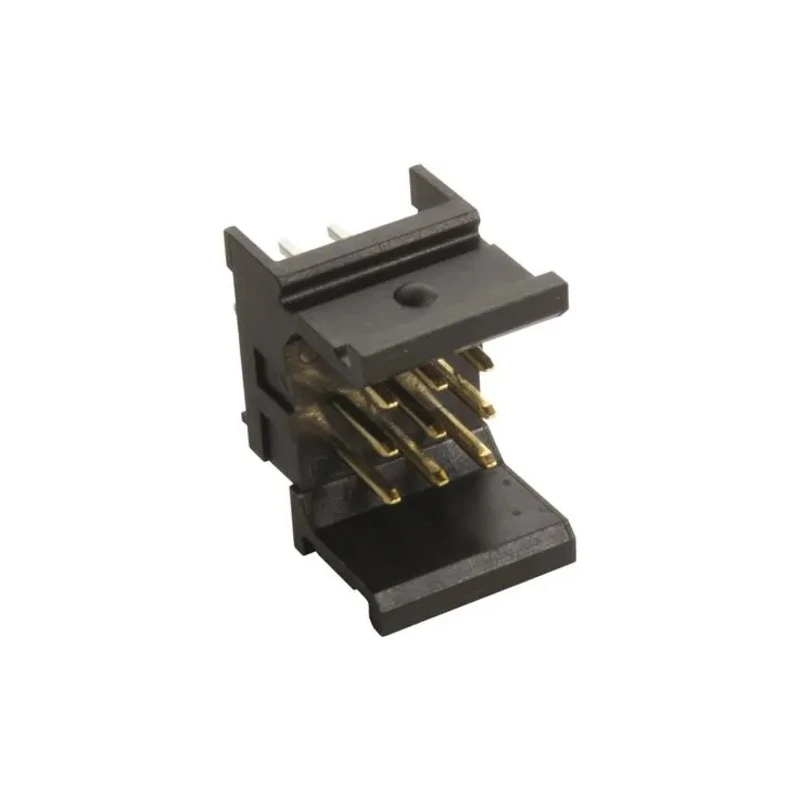

HARTING har-modular Series Straight Surface PCB Header, 9 Contacts, 2.54 mm Pitch, 3 Row, Shrouded 02539091103
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | har-modular |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Constructed with polyamide housing for durability and electrical insulation.
- Copper alloy contacts ensure reliable conductivity and resistance.
- Designed as a male connector with wave soldering termination.
- Operates reliably between -55°C to 125°C temperature range.
- Rated for 2 A current, suitable for various electronic circuit connections.
- Straight orientation facilitates easy PCB surface mounting.
- Har-modular series ensuring modular compatibility and flexibility.
- Manufactured in Romania ensuring quality production standards.
Product Description
HARTING 02539091103 har-modular Series Straight Surface PCB Header is a high-quality male connector designed for electronic component PCB applications. Featuring 9 contacts arranged in 3 rows with a 2.54 mm pitch, this shrouded header is engineered for reliable signal and power transmission.
The connector housing is made from durable polyamide which provides excellent electrical insulation and mechanical stability. Contacts are manufactured from copper alloy, offering optimal conductivity and long-lasting performance. The product supports wave soldering termination, streamlining assembly processes for PCB manufacturing.
Operating temperature ranges from -55°C to 125°C, ensuring suitability in a variety of industrial, laboratory, and commercial electronics environments. Rated for 2 A current capacity, it handles typical PCB connector current demands effectively. The straight orientation and surface mount type allow for straightforward PCB integration.
The har-modular series offers modular system compatibility, facilitating flexible and scalable connector solutions for complex PCB designs. Manufactured in Romania, this PCB header meets industrial standards and ensures quality assurance for demanding electronics applications.
Constructed with polyamide housing for durability and electrical insulation. Copper alloy contacts ensure reliable conductivity and resistance. Designed as a male connector with wave soldering termination. Operates reliably between -55°C to 125°C temperature range.
Rated for 2 A current, suitable for various electronic circuit connections. Straight orientation facilitates easy PCB surface mounting. Har-modular series ensuring modular compatibility and flexibility. Manufactured in Romania ensuring quality production standards.
This HARTING PCB Header is ideal for industrial electronics, telecommunications, computing hardware, and related applications where robust and precise connector performance is critical. Explore additional HARTING har-modular products and compatible components on EnvMart for comprehensive PCB assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this PCB header have a pitch of 2.54 mm.
This model can operate at a maximum temperature of 125°C.
It features 9 contacts arranged in 3 rows.
The PCB header is rated for a current capacity of 2 A.
The housing is made from polyamide, while the contacts are constructed from copper alloy.
It is designed for wave soldering termination.
The orientation of this model is straight, facilitating easy surface mounting on PCBs.
This PCB header is manufactured in Romania.
The minimum operating temperature is -55°C.
This model belongs to the har-modular series, which ensures modular compatibility.
This connector supports surface mounting.
It is suitable for various electronic circuit connections in industrial electronics, telecommunications, and computing hardware applications.
