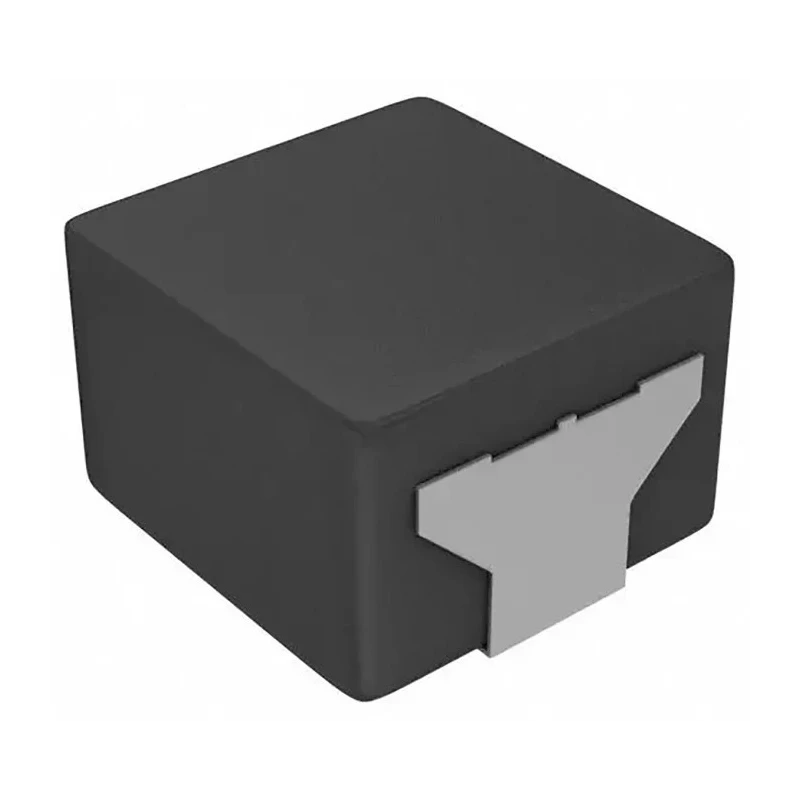

Panasonic Shielded Surface Mount Inductor with Metal Composite Core 6.8 μH Integral Construction 7.3A 0840 Package ETQP4M
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 4mm |
| Length | 8.5mm |
| Model | ETQP4M |
| Depth | 8mm |
| Packaging | Embossed Carrier Tape |
| Series | ETQP4M |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 6.8μH |
| Standards/Approvals | RoHS |
| Package/Case | 0840 |
| Maximum DC Current | 7.3A |
| Maximum DC Resistance | 24.5mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Integral Construction |
| Automotive Standard | AEC-Q200 |
Key Features
- Inductance of 6.8 μH with ±20% tolerance ensures stable performance.
- Maximum DC current rating of 7.3A supports robust electrical loads.
- Compact 0840 package with dimensions 8.5mm x 8mm x 4mm suits space-constrained applications.
- High heat resistance up to 155°C suitable for harsh automotive environments.
- Low DC resistance of 24.5mΩ enables efficient power handling.
- Approved to AEC-Q200 automotive standard for quality and reliability.
- Surface mount termination facilitates automated PCB assembly.
- Metal composite core reduces audible noise and improves efficiency.
Product Description
Panasonic ETQP4M Shielded Surface Mount Inductor with Metal Composite Core offers a low profile integral construction designed for demanding industrial and automotive applications. Featuring a stable inductance of 6.8 μH with ±20% tolerance and a maximum DC current capacity of 7.3A, this inductor supports high-performance power filtering and noise suppression.
The 0840 package dimensions of 8.5 mm length, 8 mm depth, and 4 mm height ensure compact integration into modern electronic assemblies. The use of a metal composite core delivers enhanced magnetic properties with low eddy current losses, resulting in improved efficiency and reduced audible noise during operation.
Compliant with the AEC-Q200 automotive standard, the ETQP4M series withstands high-temperature environments up to 155°C and vibrational stresses, making it an excellent choice for automotive electronics, DC/DC converters, and boost converter circuits. Its surface mount termination style supports automated pick-and-place manufacturing processes, increasing production efficiency.
Designed for industrial, automotive, and manufacturing settings, this shielded power choke coil is robust and reliable, sustaining high bias currents with low DC resistance of 24.5 mΩ. It operates effectively across a wide temperature range from -55°C to +155°C.
Inductance of 6.8 μH with ±20% tolerance ensures stable performance. Maximum DC current rating of 7.3A supports robust electrical loads. Compact 0840 package with dimensions 8.5mm x 8mm x 4mm suits space-constrained applications.
High heat resistance up to 155°C suitable for harsh automotive environments. Low DC resistance of 24.5mΩ enables efficient power handling. Approved to AEC-Q200 automotive standard for quality and reliability. Surface mount termination facilitates automated PCB assembly.
Metal composite core reduces audible noise and improves efficiency. Operational temperature range from -55°C to 155°C enables versatile industrial use. Available from EnvMart, this Panasonic ETQP4M inductor supports engineering needs for electronic component sourcing with high quality and trusted performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance of this model is 6.8 μH with a tolerance of ±20%.
It has a maximum DC current rating of 7.3A, supporting robust electrical loads.
The dimensions of the 0840 package are 8.5 mm in length, 8 mm in depth, and 4 mm in height.
This inductor operates effectively across a temperature range from -55°C to +155°C.
It features a metal composite core, which enhances magnetic properties and reduces audible noise.
Yes, it is approved to the AEC-Q200 automotive standard, ensuring quality and reliability for automotive applications.
The maximum DC resistance is 24.5 mΩ, enabling efficient power handling.
It uses a surface mount termination style, facilitating automated PCB assembly.
The inductor is packaged in an embossed carrier tape.
This inductor is designed for industrial, automotive, and manufacturing settings, particularly in power filtering and noise suppression.
The metal composite core reduces eddy current losses, resulting in improved efficiency and lower audible noise during operation.
The country of origin for this inductor is Japan.
