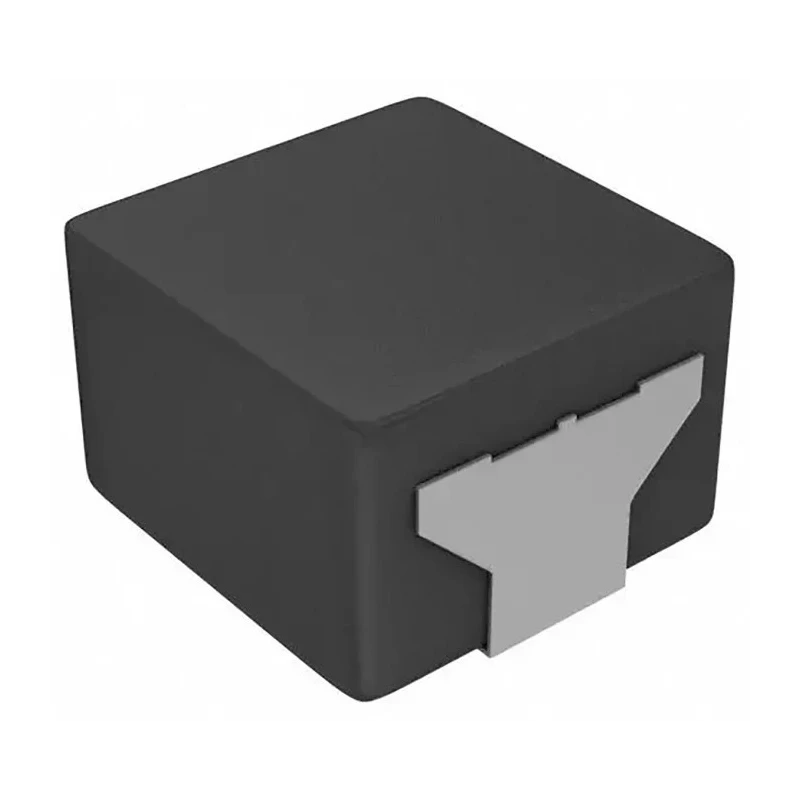

Panasonic 22 μH Surface Mount Inductor with Metal Composite Core 4.1 A IDC Integral Construction ETQP4M
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 4mm |
| Length | 8.5mm |
| Model | ETQP4M |
| Depth | 8mm |
| Packaging | Embossed Carrier Tape |
| Series | ETQP4M |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 0840 |
| Maximum DC Current | 4.1A |
| Maximum DC Resistance | 78.4mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Integral Construction |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a 22 microhenry inductance with ±20 % tolerance for precise performance.
- Utilizes a metal composite core for high heat resistance and durability.
- Designed for surface mount applications with an 0840 package size.
- Supports a maximum DC current of 4.1 amperes, suitable for automotive and industrial use.
- Operates efficiently within a temperature range of -55°C to 155°C.
- Complies with AEC-Q200 automotive standards ensuring high reliability.
- Offers low DC resistance of 78.4 milliohms to minimize power loss.
- Integral construction reduces audible noise (buzz) for quieter operation.
Product Description
Panasonic ETQP4M Surface Mount Inductor is a low profile power choke coil featuring a 22 μH inductance with integral construction built around a metal composite core. This inductor is designed to handle a high DC current of up to 4.1 A, making it ideal for demanding automotive and industrial electronic circuits.
Its 0840 surface mount package allows compact PCB layout without compromising electrical performance. The use of metal composite core technology confers excellent heat resistance with operational temperatures ranging from -55°C to 155°C, and ensures mechanical robustness against vibration and thermal stresses commonly encountered in harsh environments.
With a tolerance of ±20 %, inductance stability is maintained over varying temperature ranges, supported by a low DC resistance of 78.4 mΩ which aids in minimizing energy losses and improving efficiency. This coil complies with the AEC-Q200 automotive standard, ensuring high reliability and longevity for automotive power supply filters and noise suppression applications.
The integral construction design results in very low audible noise, enhancing user experience in noise-sensitive environments. Panasonic ETQP4M series is widely applied in DC/DC buck and boost converters, as noise filters in drive circuitry, and in numerous other power management systems within automotive and industrial electronic modules.
The product comes packaged on embossed carrier tape for reliable automated handling during assembly and is manufactured in Japan, reflecting premium quality and stringent manufacturing standards.
22 μH inductance with ±20 % tolerance. High DC current rating of 4.1 A. Metal composite core for superior heat resistance. Compact 0840 surface mount package. AEC-Q200 qualified for automotive applications. Low DC resistance of 78.4 mΩ.
Operates between -55°C and 155°C. Integral construction reduces buzz noise. Designed for surface mount PCB integration. Manufactured in Japan ensuring quality.
Explore the Panasonic range of Surface Mount Inductors on EnvMart for reliable, high-performance electronic component solutions suitable for automotive, industrial, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ETQP4M inductor features an inductance value of 22 microhenries (μH) with a tolerance of ±20%.
This model supports a maximum DC current of 4.1 amperes (A).
The dimensions of the ETQP4M inductor are 8.5mm in length, 8mm in depth, and 4mm in height.
The inductor utilizes a metal composite core, which provides high heat resistance and durability.
It operates efficiently within a temperature range of -55°C to 155°C.
The integral construction reduces audible noise (buzz), contributing to quieter operation in applications.
This inductor complies with AEC-Q200 automotive standards, ensuring high reliability for automotive applications.
The inductor has a low DC resistance of 78.4 milliohms (mΩ), which helps minimize power loss.
The product is packaged on embossed carrier tape for reliable automated handling during assembly.
This model is widely applied in DC/DC buck and boost converters, as well as noise filters in drive circuitry.
The termination style of the ETQP4M inductor is surface mount, designed for compact PCB integration.
It is manufactured in Japan, reflecting premium quality and stringent manufacturing standards.
