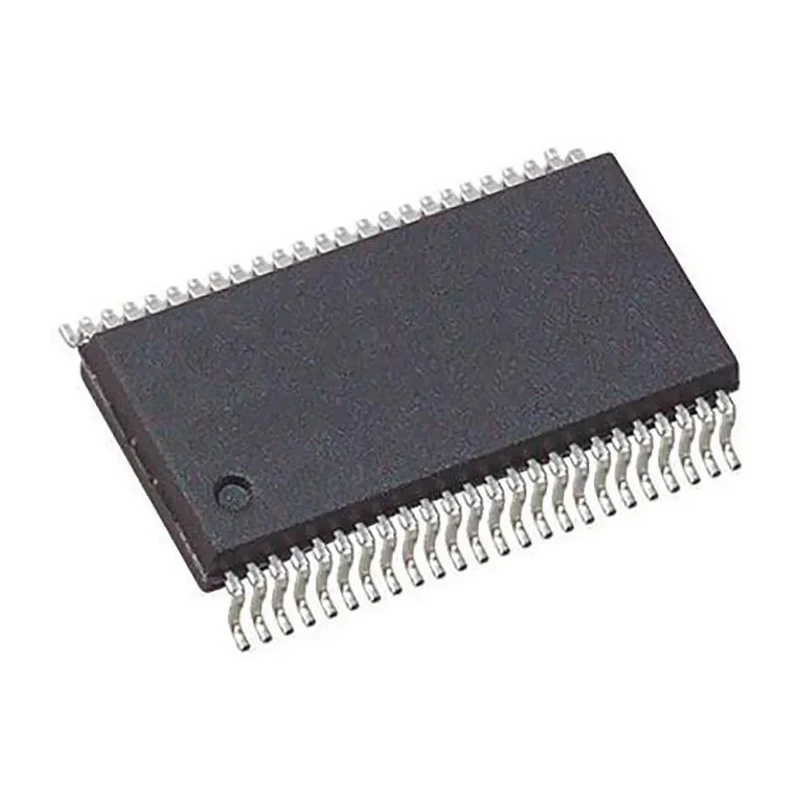

Texas Instruments 16-Bit Non-Inverting LVTTL Bus Transceiver 1.65-3.6V 48-Pin TSSOP SN74LVC16245ADGGR

Texas Instruments SN74LVC16245ADGGR is a high-performance 16-bit bus transceiver IC designed using silicon gate CMOS technology optimized for low voltage applications. It operates at supply voltages between 1.65V and 3.6V, which facilitates significant power savings compared to traditional 5V logic circuits. The device supports non-inverting logic operations and includes separate input and output logic levels compatible with LVTTL, TTL, and CMOS standards, making it versatile for numerous electronic designs.

This 48-pin TSSOP package delivers 16 data channels and three-state outputs, allowing for efficient data bus management and multiplexing in electronic systems. The bus transceiver supports 5 nanoseconds maximum propagation delay, enabling high-speed data transfer with minimal latency. It is designed to operate reliably over a wide industrial temperature range from -40°C to 85°C, suiting tough environmental conditions.

Additional features include robust latch-up immunity exceeding 250mA, and superior electrostatic discharge (ESD) protection compliant with JESD 227 standards, enhancing device durability and long-term reliability in electronic circuits. The maximum output current ratings are -24mA (high level) and 24mA (low level), enabling sufficient drive capabilities for typical digital signal transmission.

This transceiver device is widely used in industrial, computing, and communications applications where low voltage, high speed, and reliable bus management are essential. Its surface mount TSSOP packaging supports compact PCB layouts in modern electronics manufacturing.

Operates at supply voltages from 1.65V to 3.6V for low power consumption. Features 16 channels with compatible input/output logic levels. Comes in 48-pin TSSOP surface mount package. Provides high speed operation with 5ns propagation delay.

Wide operating temperature range of -40°C to 85°C for industrial use. Latch-up immunity and ESD protection enhance reliability. Output current capability supports typical bus signal driving requirements. Explore the full Texas Instruments range of semiconductor logic ICs and Bus Transceivers on EnvMart for your industrial, laboratory, and electronic design requirements.
