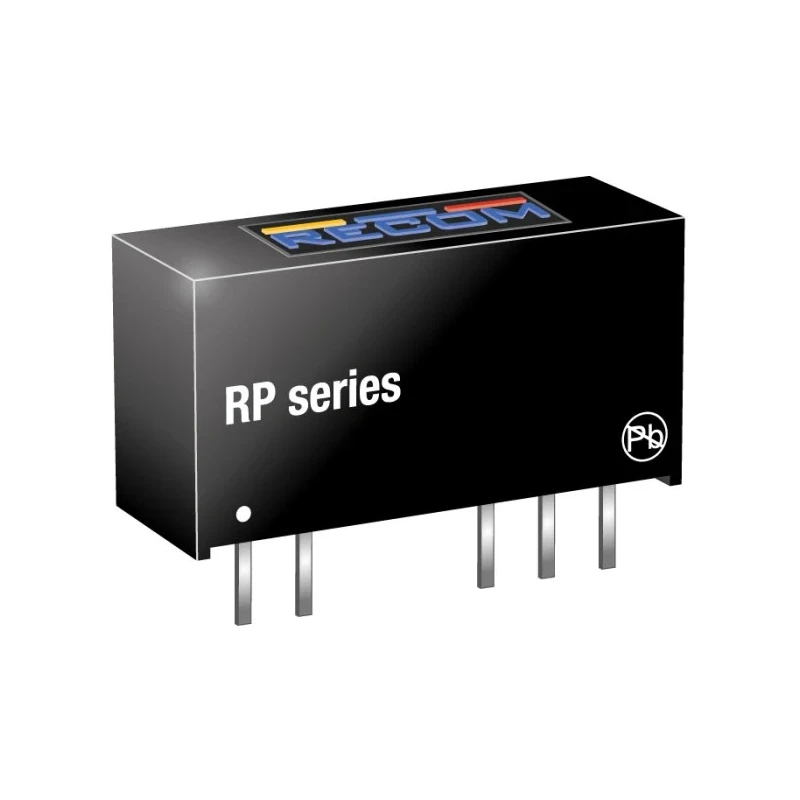

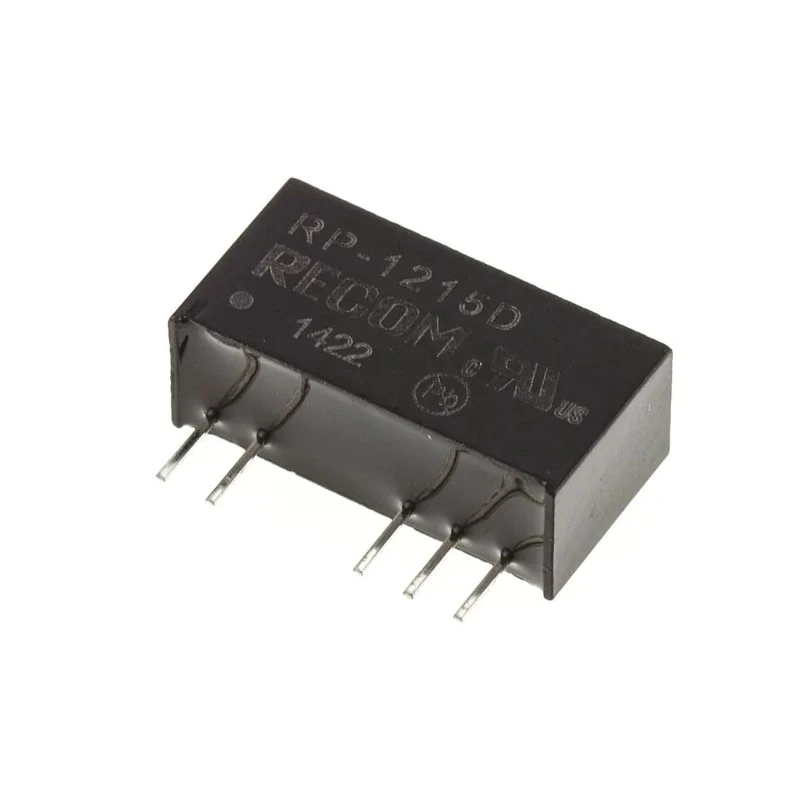

Recom DC/DC Converter 15 V DC Output 33 mA 10.8-13.2 V DC Input 1 W Power Through Hole RP-1215D

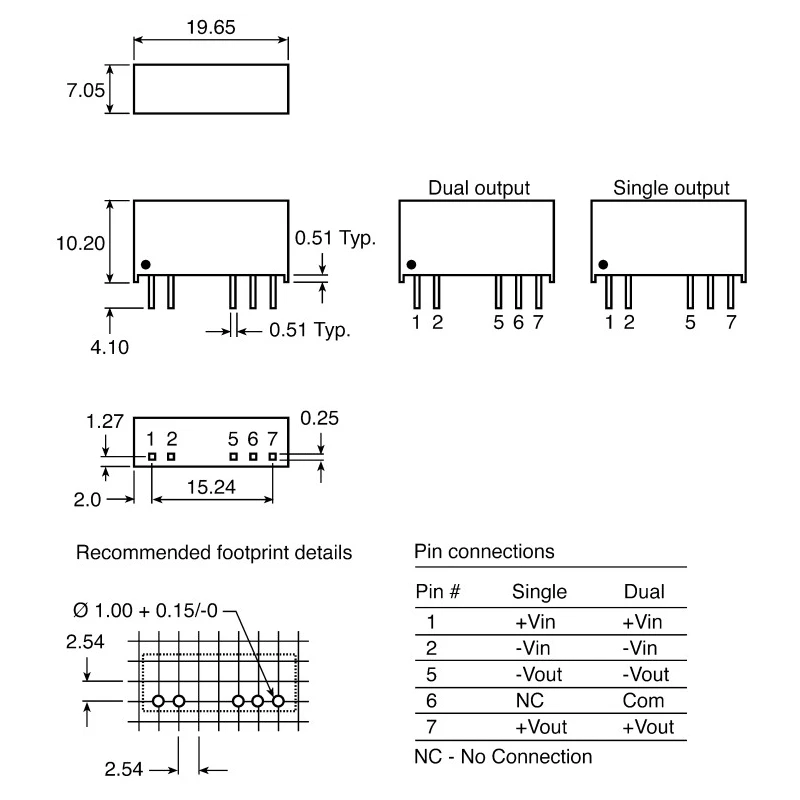

Recom presents the RP-1215D DC/DC Converter, designed to provide safe and reliable voltage isolation and level shifting for sensitive electronic components. This converter accepts a DC input voltage ranging from 10.8 to 13.2 V and produces regulated dual output voltages of ±15 V DC at a current of 33 mA, with a power output rating of 1 watt. Its through-hole single in-line package (SIP) format with dimensions of 19.65 mm length, 7.05 mm width, and 10.2 mm depth ensures easy mounting on printed circuit boards.

Engineered to withstand harsh industrial environments, the RP-1215D operates reliably within temperatures from -40 degrees Celsius to 85 degrees Celsius. The unit features an isolation voltage of 2.6 kV AC for protection against electrical hazards and noise, with a low output ripple and noise specification for minimal interference. Its efficiency rating of 82% helps reduce power consumption and heat generation, increasing overall system longevity.

Key features include industry-standard pin-out with seven pins for seamless integration, a robust MTBF rating of 18.4 million hours indicating exceptional reliability, and pre-drilled mounting holes for quick installation without additional preparation.

Isolates input and output voltages for safety and noise reduction. Operates efficiently with up to 82% energy conversion. Supports wide temperature range from -40 °C to +85 °C for industrial use. Compact SIP package for ease of installation and space-saving.

Industry-standard pin configuration ensures compatibility. High MTBF for extended operational life. Stable output voltage with ±5% accuracy for precision control.

This DC/DC Converter is well-suited for applications in robotics, medical devices, railway systems, and aviation electronics where reliable, isolated power supplies are critical. Its robust construction and performance metrics make it an ideal choice for designers and engineers working on complex electronic subsystems requiring stable voltage regulation and isolation.
