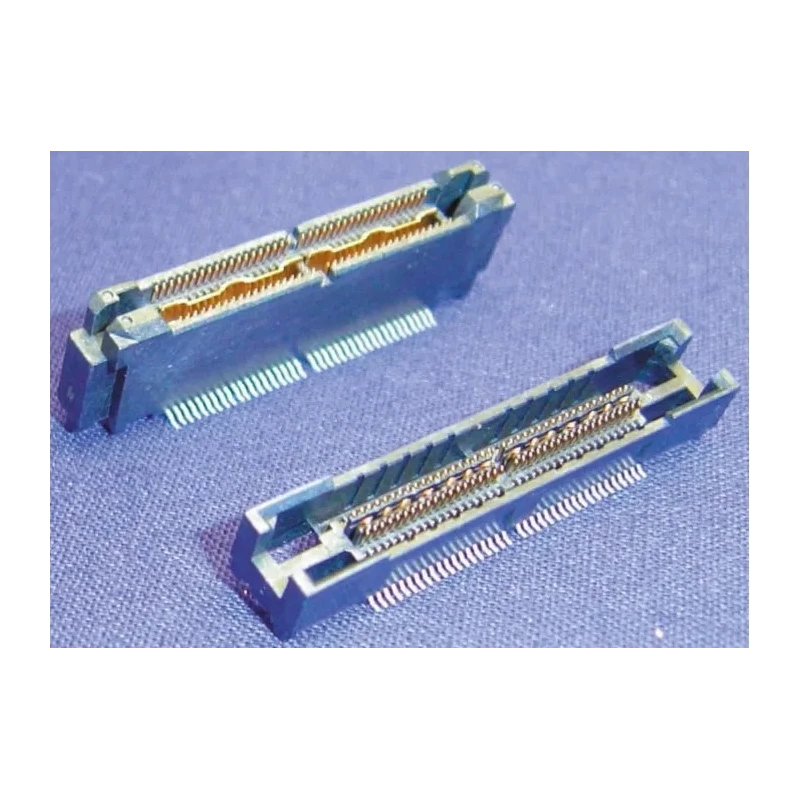

TE Connectivity MICTOR Series Straight Surface Mount PCB Header, 38 Contacts, 0.64 mm Pitch, 2 Row, Shrouded 5767005-8

TE Connectivity 5767005-8 MICTOR Series Straight Surface Mount PCB Header is engineered for high-speed data switching applications. This shrouded, 2-row PCB header connectors 38 contacts at a pitch of 0.64 mm, designed to support excellent electrical performance and reliability.

The connector employs a microstrip design with two rows of signal contacts separated by a centre ground plane to enable operation beyond 10 Gbit/s. Each contact is made of copper alloy with gold plating to ensure low resistance and durability. The connector system is board-to-board, using surface mount termination with soldering for robust and automated assembly compatibility.

MICTOR connectors feature polarized housings to prevent mismating and PCB retention features to ensure secure connections. The shrouded design protects contacts while supporting a voltage rating of 30 volts and a current rating of 1.0 ampere, making it suitable for high-speed telecommunications, enterprise network switching, and storage area networks.

These connectors are modular, providing increments of 38 contacts and scalable to sizes from 38 to 266 signal lines. The high-density configuration of 76 signal pins per linear inch supports compact layouts and high signal integrity.

The connector provides a redundant dual beam contact design to ensure high electrical reliability. Polarization and PCB retention features enhance connection security and prevent misalignment during installation. Suitable for use in high-speed custom platforms, telecommunications, and enterprise data communication equipment.

Designed for automated assembly processes, offering cost-effective manufacturing efficiency. Constructed and developed in the United States, ensuring compliance with high manufacturing standards.

The TE Connectivity MICTOR series PCB header is ideal for applications requiring reliable, high-speed connections in industrial, telecommunications, and data communication environments. Explore more products in the PCB Headers category on EnvMart for advanced electronic components and connectors.
