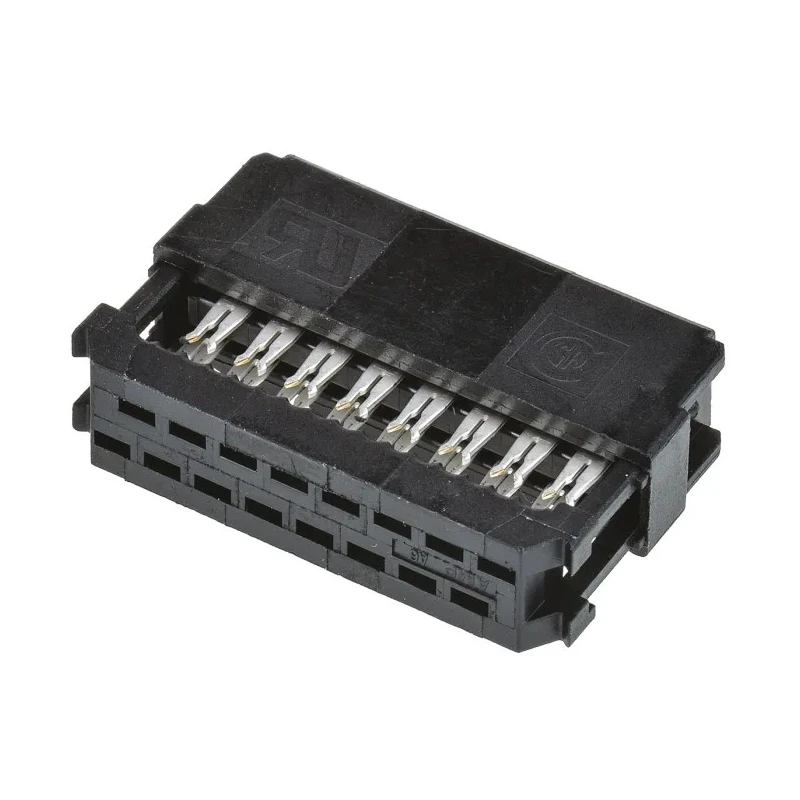

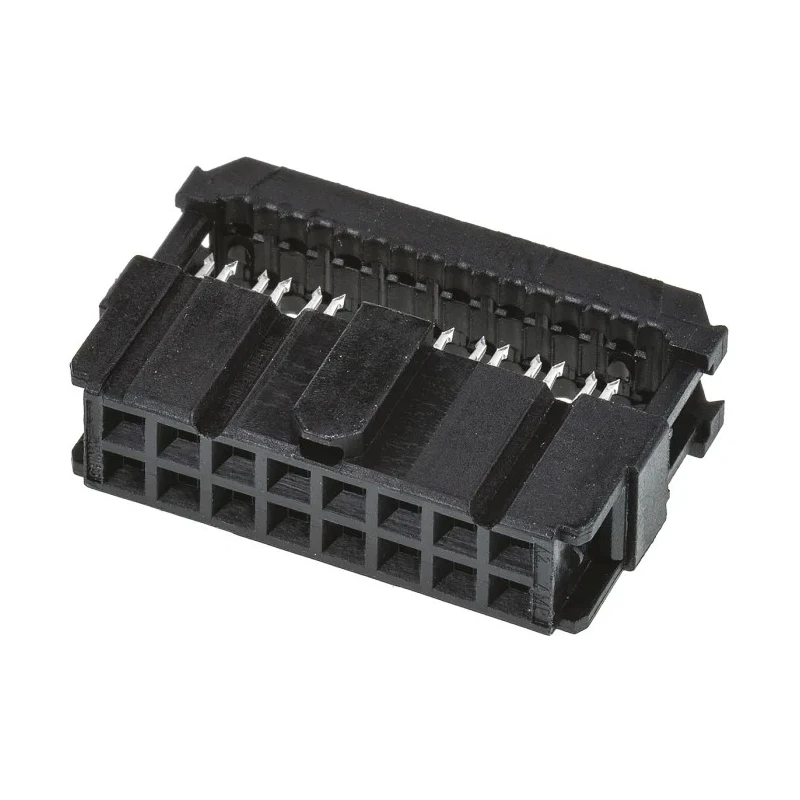

TE Connectivity 16-Way IDC Connector Female Cable Mount Right Angle 250V 1A AMP-LATCH Novo Series 1658621-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH Novo |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| 3M 16-Way IDC Connector Female for Cable, 2 RowBrand | 3M |
Key Features
- Operates at 250V voltage rating and 1A current capacity.
- Features a shrouded connector design for protection and safety.
- Gold over nickel plating ensures reliable contact performance.
- Housing made from UL 94V-0 rated thermoplastic for flame retardance.
- Designed to accept wire sizes 28-26 AWG using insulation-displacement termination.
- Operating temperature range from -65°C to 105°C for diverse environments.
- Manufactured as part of the AMP-LATCH Novo series with tuning fork style contacts.
- Meets standards DIN 41651, DIN EN 60352-3//4 for quality and compatibility.
Product Description
TE Connectivity 1658621-3 is a 16-Way IDC (Insulation-Displacement Connector) female cable connector designed for secure and reliable wire-to-board connections. This AMP-LATCH Novo series connector features two rows of duplex tuned fork style contacts, suitable for wire sizes of 28-26 AWG and a 2.54mm pitch. The right angle orientation and shrouded design provide mechanical protection and ease of assembly for ribbon cable applications.
Constructed with UL 94V-0 thermoplastic housing, this connector offers excellent flame retardance and durability. The gold over nickel contact plating assures corrosion resistance and enhanced conductivity. The connector operates efficiently in temperature ranges from -65°C up to 105°C, making it suitable for demanding industrial or telecommunications environments.
This IDC connector complies with DIN 41651 and DIN EN 60352-3//4 standards, guaranteeing compatibility with industry-standard ribbon cable systems. It includes a connector cover supply and offers optional strain reliefs, enhancing mechanical stability and longevity.
The 1658621-3 model is ideal for creating cable assemblies for electronic components, power connectors, and PCB interconnections in industrial, laboratory, telecommunications, and manufacturing fields where secure, high-density connections are critical.
Operates at 250 volts and supports 1 ampere current for standard ribbon cable applications. Features military-approved tuning fork contacts for cost-effective, dependable latching. Two-row 16-contact female connector with right angle mounting for compact cable layouts.
Insulation displacement design simplifies wiring by piercing wire insulation during assembly. Housing thermoplastic material rated UL 94V-0 ensures safety and endurance under working stresses. Compatible with 2.54mm pitch flat ribbon cables, unleveled for versatility in wiring harnesses.
Gold over nickel plating improves contact longevity and eliminates signal degradation. Connectors are shrouded to protect contacts from mechanical damage and environmental interference. Includes a cover to secure the contacts and optional strain relief for cable stability.
Explore EnvMart's wide range of IDC Connectors and related electrical components for your industrial and electronic assembly requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector operates at a voltage rating of 250V and a current capacity of 1A.
The connector features 16 contacts arranged in two rows with a pitch of 2.54mm.
It operates efficiently within a temperature range of -65°C to 105°C.
This model uses insulation-displacement termination (IDC) for secure connections.
The housing is made from UL 94V-0 rated thermoplastic, and the contacts are made of phosphor bronze with gold over nickel plating.
Yes, it is designed to accept wire sizes of 28-26 AWG and is compatible with flat ribbon cables.
This connector complies with DIN 41651 and DIN EN 60352-3//4 standards for quality and compatibility.
This connector features a right angle orientation, which facilitates compact cable layouts.
Yes, it includes a connector cover for securing the contacts and offers optional strain reliefs for enhanced stability.
It is suitable for electronic components, power connectors, and PCB interconnections in various fields including industrial and telecommunications.
It features military-approved tuning fork style contacts for reliable latching and connection.
The connector is manufactured in India.
