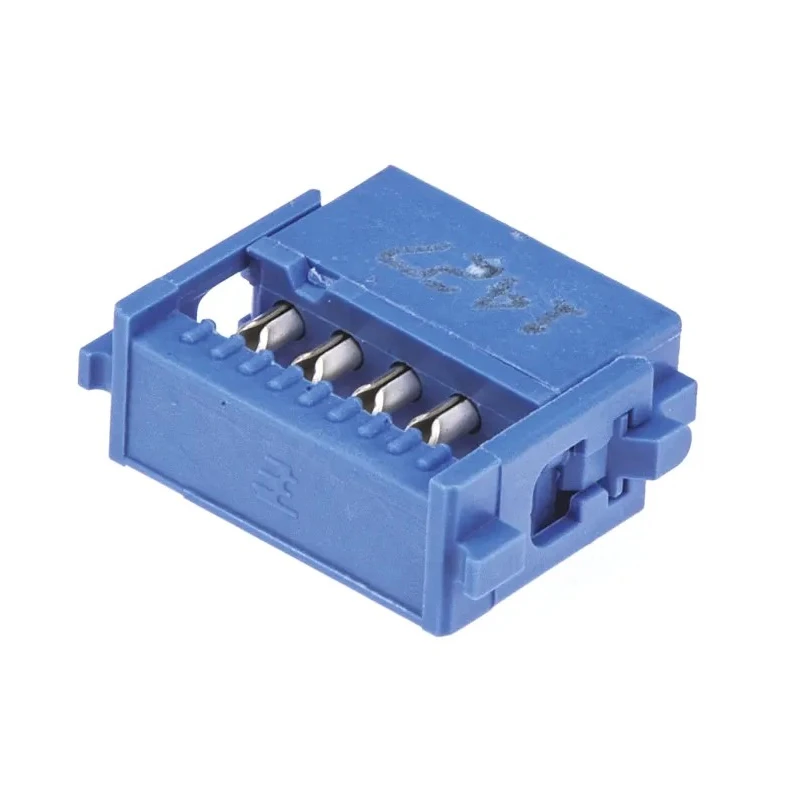

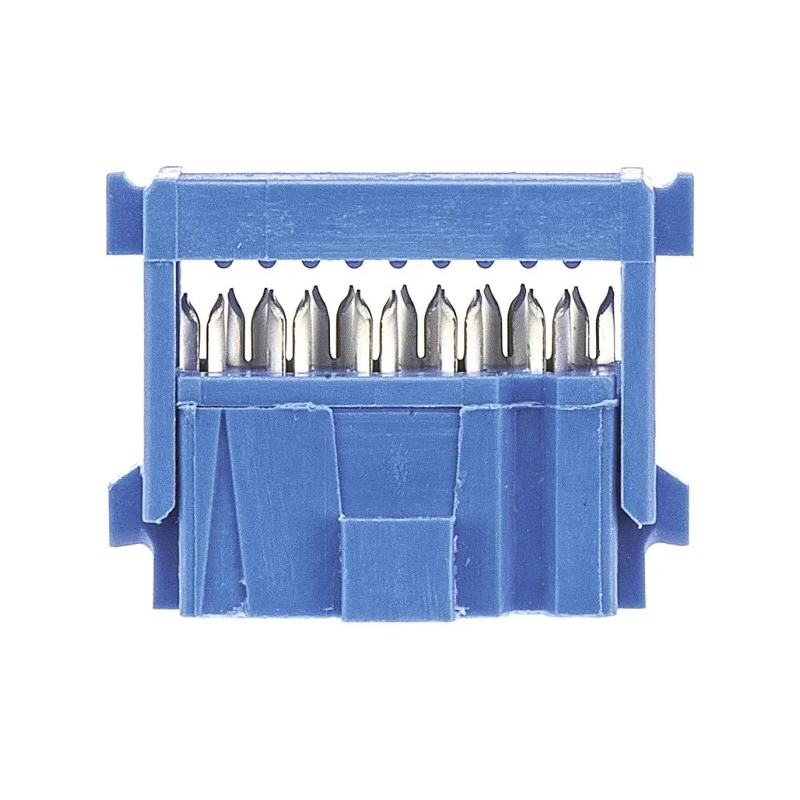

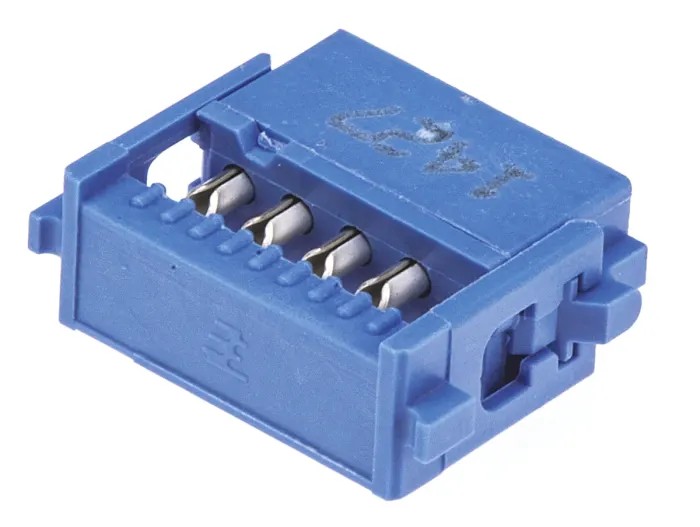

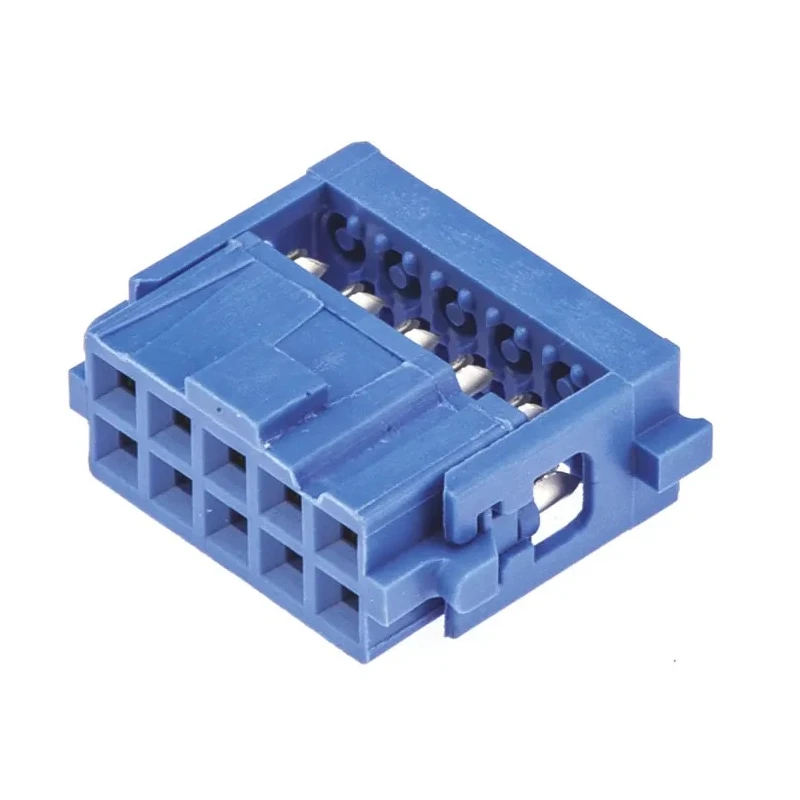

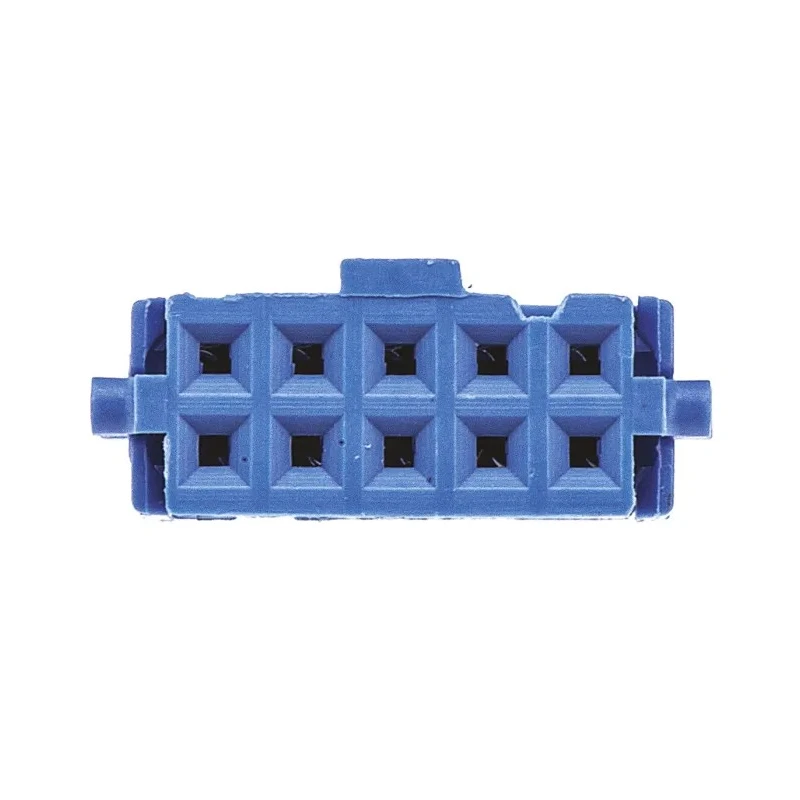

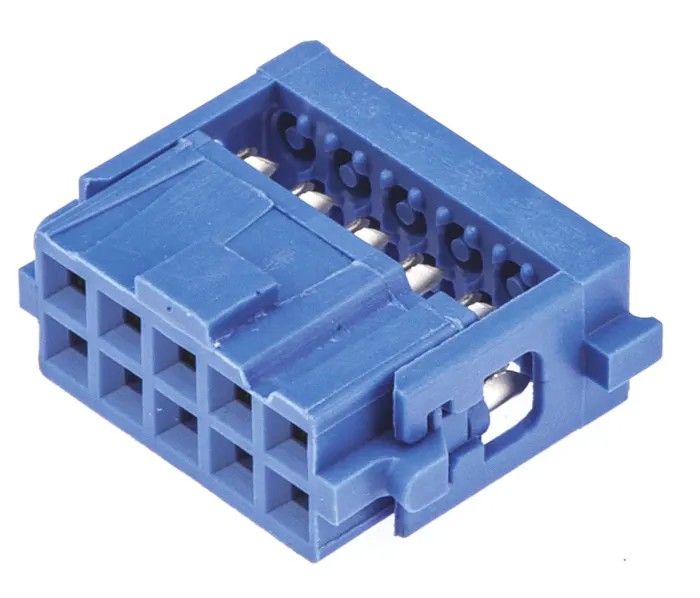

TE Connectivity 10-Way IDC Connector Female for Cable 2 Row 250V 1A AMP-LATCH 609 1658526-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Beryllium Copper |
| Series | AMP-LATCH 609 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Features 10 gold-over-nickel plated contacts for superior conductivity.
- Shrouded, right-angle female connector designed for cable mounting.
- Operates reliably between -55°C and 125°C temperature range.
- Uses 2.54 mm pitch with 1 amp current rating and supports up to 250V.
- Constructed with beryllium copper contacts and UL 94V-0 thermoplastic housing for durability.
- Military-approved tuning fork contact design ensures uniform latching and reliable connections.
- Offers centre and military polarization to prevent mis-mating.
- Available with optional strain relief for enhanced mechanical strength.
Product Description
TE Connectivity 1658526-5 IDC Connector Female 10-Way 2 Row 250V 1A AMP-LATCH 609 series is a high-quality cable-mount connector designed for fast and economical mass termination of ribbon cables. It utilizes insulation displacement contact (IDC) technology, eliminating the need for wire stripping or preparation.
The ribbon cable socket features tuning fork-shaped contacts with a military-approved design that ensures uniform latching and optimal connectivity. The contacts are plated with gold over nickel to provide excellent conductivity and corrosion resistance. The housing is made from flame-retardant UL 94V-0 thermoplastic material, ensuring safety and durability in industrial environments.
Operating temperature ranges from -55°C to 125°C, making it suitable for harsh and varied environments. This 2-row connector uses a 2.54mm pitch and supports 1 amp current at voltages up to 250V. It is shrouded and right angled for ease of cable routing and connection.
The AMP-LATCH 609 series also offers military and centre polarization to prevent incorrect mating and versions with strain relief to provide additional mechanical support when required.
Applications for this IDC connector include network equipment, industrial automation controls, electrical and medical testing devices, home and industrial appliances, consumer electronics, and automotive systems due to its secure connection and robust design.
Features 10 gold-over-nickel plated contacts for superior conductivity. Shrouded, right-angle female connector designed for cable mounting. Operates reliably between -55°C and 125°C temperature range. Uses 2.54 mm pitch with 1 amp current rating and supports up to 250V.
Constructed with beryllium copper contacts and UL 94V-0 thermoplastic housing for durability. Military-approved tuning fork contact design ensures uniform latching and reliable connections. Offers centre and military polarization to prevent mis-mating.
Available with optional strain relief for enhanced mechanical strength. Commonly used in network equipment, industrial controls, electrical and medical testing, appliances, consumer electronics, and automotive applications.
Explore the range of IDC Connectors and other electronic components at EnvMart to find reliable connectors to suit your industrial and technical projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector supports a voltage rating of up to 250V.
It has a current rating of 1A.
The connector operates reliably within a temperature range of -55°C to 125°C.
This model utilizes insulation displacement contact (IDC) technology for termination.
The contacts are made of beryllium copper and the housing is constructed from UL 94V-0 thermoplastic material.
It features 10 contacts.
The pitch size for this IDC connector is 2.54mm.
Yes, it is specifically designed for cable mounting.
This model has a right-angle orientation.
Yes, it offers both centre and military polarization to prevent mis-mating.
It is commonly used in network equipment, industrial automation controls, electrical and medical testing devices, and consumer electronics.
The country of origin for this connector is India.
