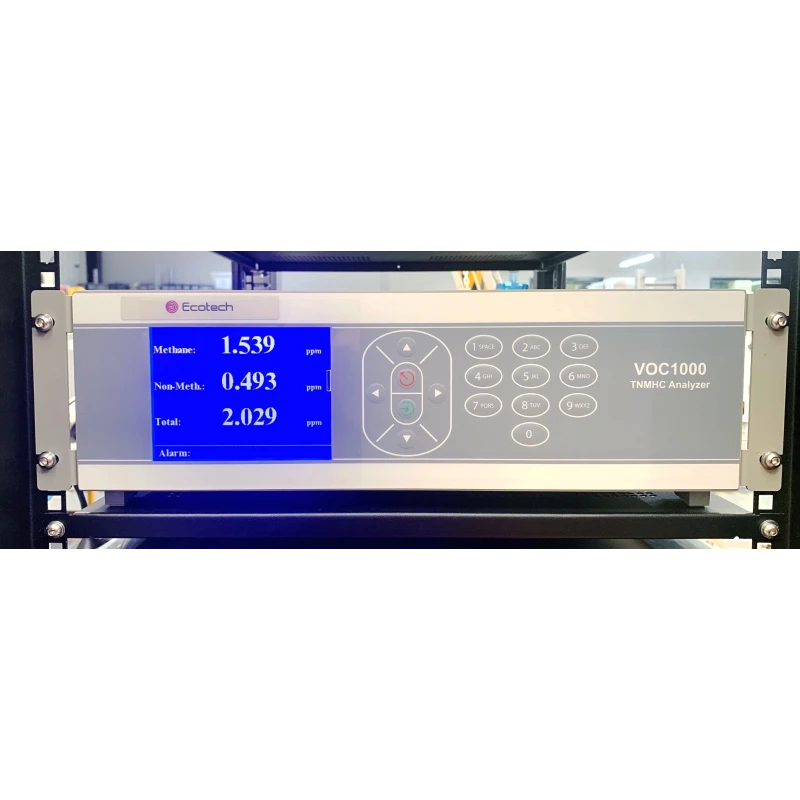

Ecotech Ambient Toxic/Hydrocarbon analyser VOC 1000
Specifications
| Repeatability | +/- 1 % full scale |
|---|---|
| Operating Humidity | 0 - 95 % non condensing |
| Display | 8.6 x 11.4 cm graphical display |
| Range | 0 - 200 ppm (0 - 1000 ppm optional) |
| Power | 90 - 240 VAC 50/60 Hz| 3A |
| Operating Temperature | 0 - 40 C |
| Dimensions | 48.3 x 36.2 x 13.3 cm |
| Drift | +/- 1 % of full scale (24 hours) |
| Relay outputs | 5 programmable form A relays rated to 3A @ 230 VAC |
| Digital outputs | RS232| Ethernet |
| Analog outputs | 1 programmable 0 - 20 or 4 - 20 mA isolated output (optional 3 analog output board) |
| Connections | 1/4 tube fitting connectors |
| Detector | Flame Ionisation Detector (FID) |
| Oxidiser | Non-methane gases |
| Response | T90 Less Than 30 seconds |
| Support gases | Hydrogen 35 cc/min Air 175 cc/min |
| Weight | 9 kg |
Key Features
- Flame ionization detector
- Hydrocarbon detection from sub-ppm to 1000 ppm (Methane)
- Automatic calibration at user-defined intervals
- Electronic control of fuel, air and sample
- Electronic back-pressure regulator with sample bypass system ensures fast response
Product Description
ECOTECH VOC 1000 is designed tomeasure total, methane and non-methanehydrocarbon gases providing accurateand reliable measurement data.VOC 1000 analyser provides unparalleled flexibility and offerscontinuous, fully automated gas analysis over a broadrange of concentrations.The analyser is based on a Flame Ionisation Detector (FID) withelectronic control that delivers a small portion of the sample gasto the detector flame. During the combustion process, organic orhydrocarbon-based gases in the sample are ionised, then they aredetected by the instrument and reported as a concentration.BENEFITS Hydrocarbon detection from sub-ppm to 1000 ppm (methane) Programmable automatic calibration at user-defined intervalsor manual calibration Electronic control of fuel, air and sample Electronic back-pressure regulator with sample bypass systemensures fast response Programmable analog output ranges Automatic FID ignition, with automatic shut-off of sample,fuel and combustion air Graphical display and easy to use menu system Internal single or multipoint modules, with or without samplepump for pre-filtered (< 0.1 microns), non-condensing samples Multilevel concentration and fault alarms that result in an audibleand visually displayed alarm. Alarms may also be mapped torelays to control external equipment Supports hydrogen 35 cc/min (blend 100 cc/min), air 175 cc/min.Hydrocarbon content must be < 1 ppm.
- Programmable analog output ranges
- Automatic FID ignition, with automatic shut-off of sample, fuel and combustion air
- Graphical display and easy to use menu system
Frequently Asked Questions
The Ecotech VOC 1000 can detect hydrocarbons from sub-ppm levels up to 200 ppm, with an optional range extending to 1000 ppm.
The analyser allows for programmable automatic calibration at user-defined intervals, ensuring consistent accuracy without manual intervention.
The VOC 1000 utilizes a Flame Ionisation Detector (FID) for precise hydrocarbon detection.
The VOC 1000 operates on 90 - 240 VAC at 50/60 Hz with a maximum current of 3A.
The Ecotech VOC 1000 weighs approximately 9 kg.
The VOC 1000 has a response time (T90) of less than 30 seconds, allowing for quick analysis.
Yes, the VOC 1000 operates in humidity levels of 0 - 95% non-condensing, making it suitable for various environments.
The dimensions of the Ecotech VOC 1000 are 48.3 x 36.2 x 13.3 cm.
The VOC 1000 supports various outputs including RS232, Ethernet, and programmable analog outputs (0-20 or 4-20 mA).
For inquiries or to purchase the Ecotech VOC 1000, please contact our sales team through the website or customer service number provided.
