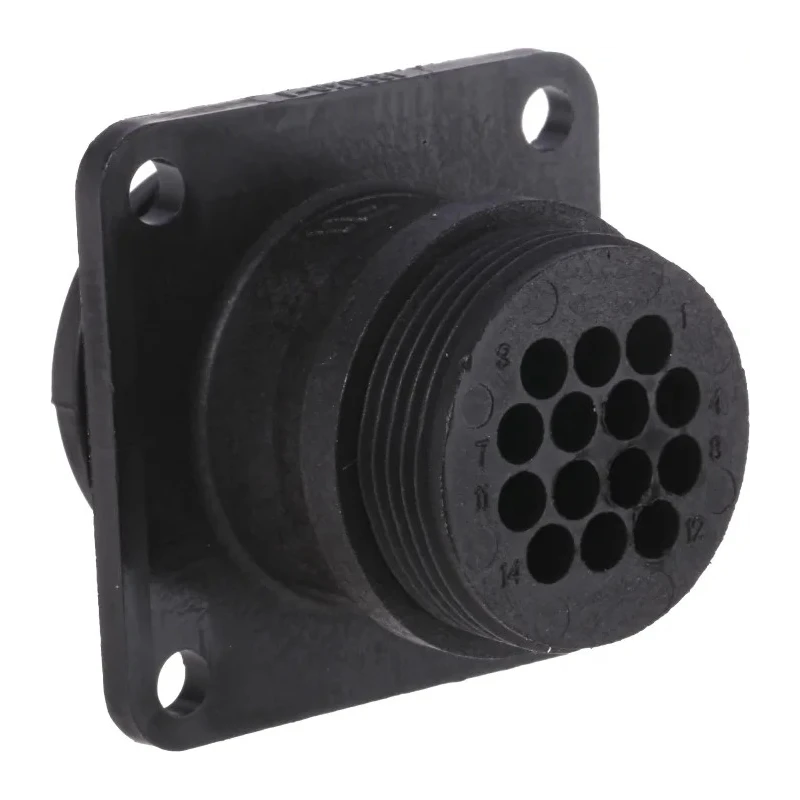

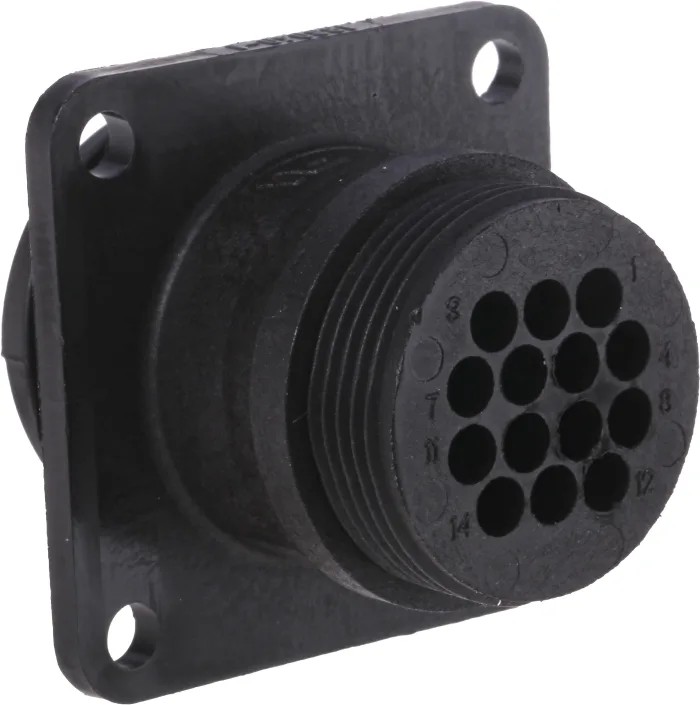

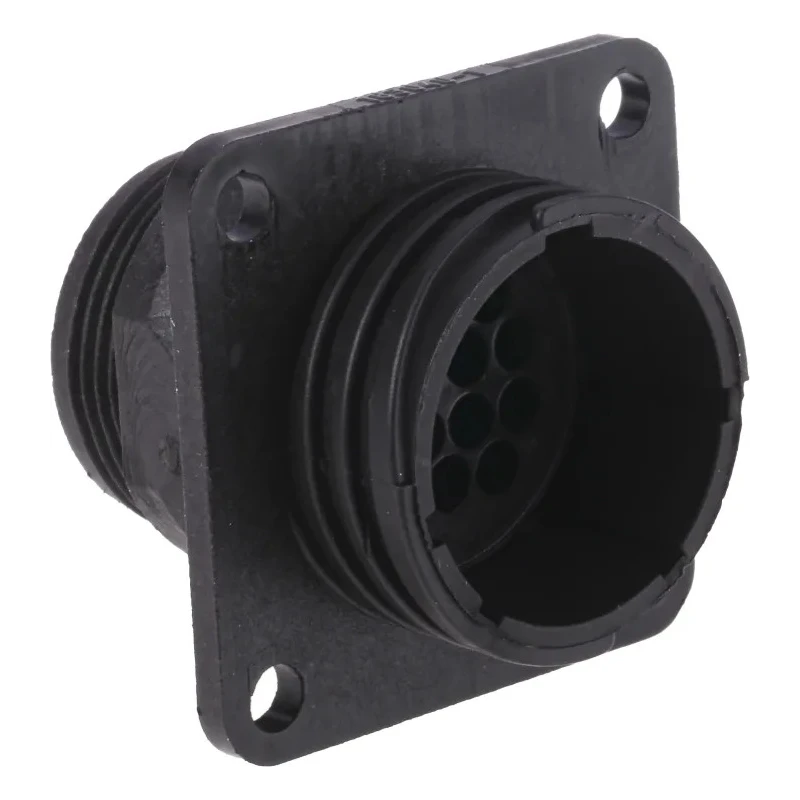

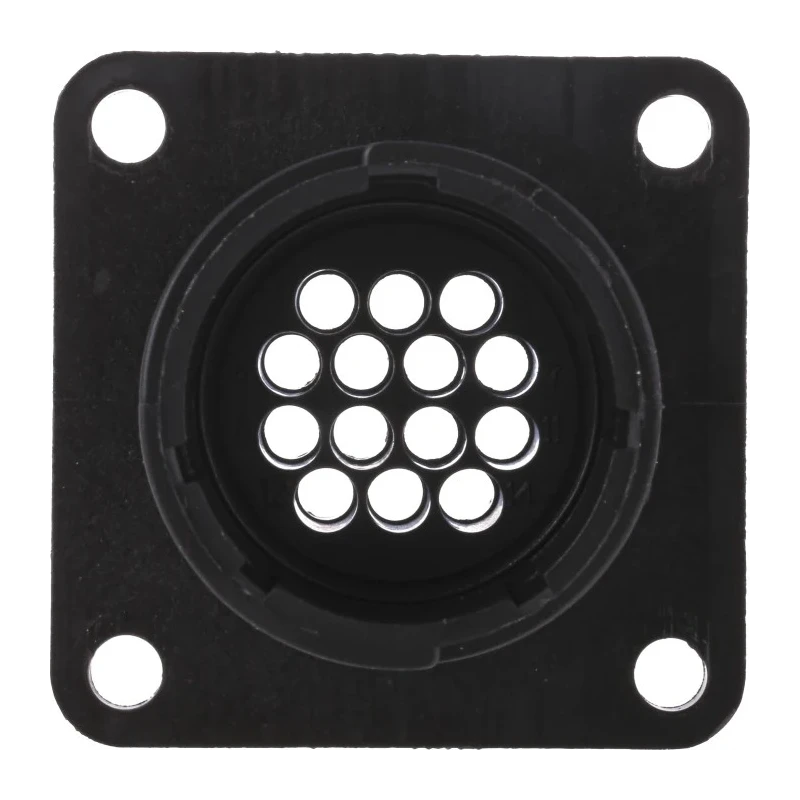

TE Connectivity Circular Connector, 14 Contacts, Panel Mount, Standard Connector, Plug, Male, IP67, 600V, 5A 183040-1

TE Connectivity 183040-1 Circular Connector is a panel mount plug type connector with 14 male contacts, designed for signal and low power current applications. It is part of the CPC Series, providing rugged and reliable connections with IP67 ingress protection, making it ideal for harsh industrial environments. The connector has a thermoplastic housing rated UL94V-0 for heat resistance and is suitable for a wide range of industrial sectors including machinery, instrumentation, agricultural equipment, HVAC, process control, industrial automation, lighting, and automotive use.

The connector supports an operating voltage of 600V and a current rating of 5A, with a temperature range from -55°C minimum to 105°C maximum. Its keyed mating and polarized housing ensure correct alignment and secure locking to prevent accidental disengagement during operation. The crimp termination style allows on-site assembly and easy contact removal for repair, minimizing downtime in critical applications.

These series 1 connectors are designed with standard density, offering a pole format range from 4 to 37 contacts and signals up to 13A. The shell size is 17 with a straight orientation, suitable for panel mounting. This connector provides a lightweight and cost-effective alternative to metal versions while maintaining robustness and durability in demanding industrial settings.

Constructed with UL94V-0 rated thermoplastic housing for heat resistance. Rated for 600V operating voltage and 5A current capacity. Features crimp termination and keyed mating to prevent incorrect connection. Designed for harsh environments with shock and vibration resistance.

Suitable for industrial machinery, instrumentation, HVAC, automotive, and process control applications. Operates within temperature range of -55°C to 105°C. Lightweight and polarized for easy and secure connection assembly.

Contacts are removable facilitating easy repair and maintenance. Complies with CPC Series specifications supporting 4 to 37 poles with signals up to 13A. Panel mount style with shell size 17 and straight orientation. Explore additional TE Connectivity circular connectors in the industrial and electronics categories on EnvMart for compatible components and accessories.
