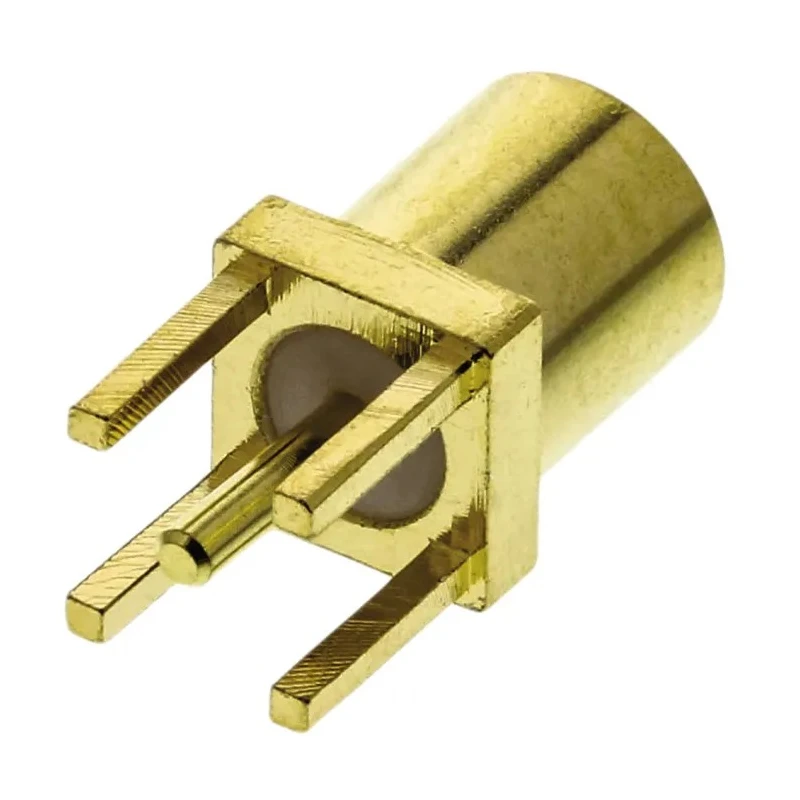

RS PRO MMCX Series Coaxial Connector Through Hole Female MCX 50 Ω Straight Body Solder 1-1634009-0
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Mount Type | Through Hole |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper |
| Series | MMCX |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
| RS PRO Coaxial Connector PCB Female MCX, 50 Ω, Straight Body SolderBrand | RS PRO |
Key Features
- Supports an impedance of 50 Ω ensuring signal integrity.
- Features a female connector gender with a straight orientation.
- Gold plated body and contacts for excellent conductivity and corrosion resistance.
- Operates reliably within a temperature range from -65°C to 165°C.
- Designed for through-hole PCB mounting with solder termination.
- Operates up to a frequency of 6 GHz suitable for RF applications.
- Contact material is beryllium copper providing good electrical and mechanical properties.
- Standard size with a 4.5mm PCB height ensures compatibility with common PCB designs.
Product Description
TE Connectivity 1-1634009-0 MMCX Series Coaxial Connector is a precision electronic component engineered for high-frequency and reliable RF connections in industrial and commercial applications. It is a through-hole mounted female MCX coaxial connector with a straight body designed for solder tail termination.
This connector supports a 50 Ω impedance and operates at frequencies up to 6 GHz, making it suitable for communications, instrumentation, and other RF systems. The body is gold plated for enhanced conductivity and corrosion resistance while the contacts are made from beryllium copper with gold plating, ensuring excellent electrical performance and durability.
Its operating temperature span from -65°C to 165°C allows use in harsh environmental conditions. The connector's standard size and 4.5mm PCB height facilitate ease of integration on printed circuit boards for various electronic devices and assemblies.
The product is specifically designed for through-hole PCB mounting with solder termination, providing strong mechanical stability and reliable electrical contact. The normal polarity design ensures compatibility within the MMCX series connector system.
Supports 50 Ω impedance for impedance matching and signal efficiency. Female connector with straight orientation for standard connection scenarios. Gold plating on both body and contact surfaces for durability and electrical integrity.
Wide operating temperature range from -65°C to 165°C for industrial reliability. Through-hole mount with solder termination for secure PCB attachment. Operates up to 6 GHz frequency, suited for RF and high-speed data applications.
Beryllium copper contacts ensure mechanical strength and conductivity. Standard size with 4.5mm PCB height enabling versatile PCB designs. Normal polarity ensures interoperability with MMCX series connectors.
This MMCX coaxial connector is ideal for industrial electronics, telecommunications, manufacturing equipment, testing instrumentation, and other commercial RF connector needs. It combines robust materials and precision design to support reliable signal transmission over PCB mount platforms.
Explore more TE Connectivity Coaxial Connectors and related electronic components on EnvMart for quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a maximum frequency of 6 GHz, making it suitable for RF applications.
This model supports an impedance of 50 Ω, ensuring effective signal integrity.
It operates reliably within a temperature range from -65°C to 165°C.
This connector is designed for through-hole PCB mounting with solder termination.
The contacts are made from beryllium copper, providing good electrical and mechanical properties.
It features a straight orientation, which is standard for many connection scenarios.
Both the body and contacts are gold plated for enhanced conductivity and corrosion resistance.
It has a standard size with a PCB height of 4.5mm, ensuring compatibility with common PCB designs.
Yes, it features normal polarity, ensuring interoperability within the MMCX series connector system.
It is ideal for industrial electronics, telecommunications, manufacturing equipment, and testing instrumentation.
This model has a female connector gender, designed for standard connection scenarios.
The country of origin for this connector is India.
