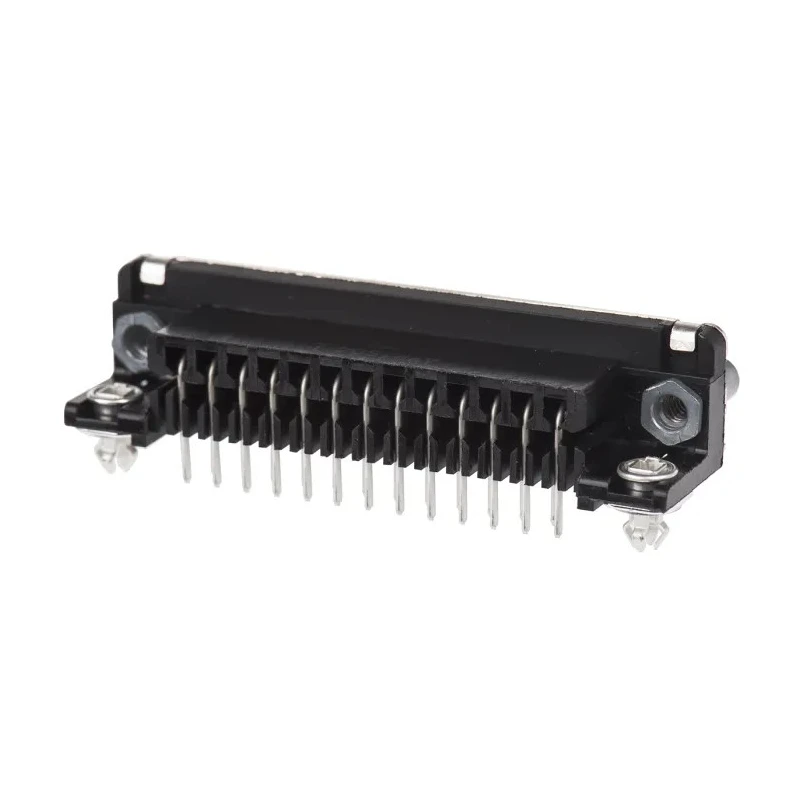

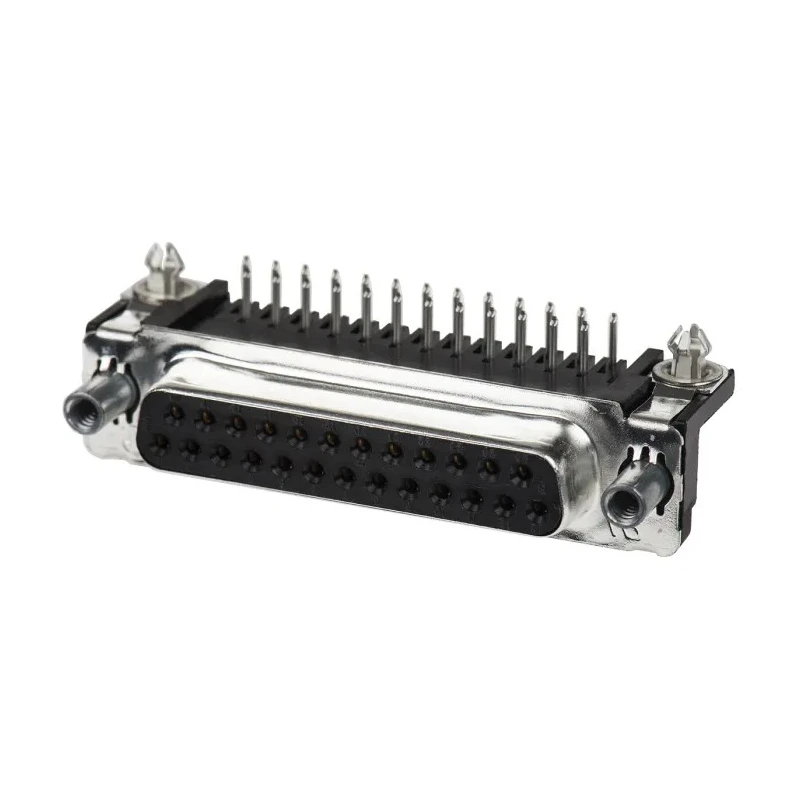

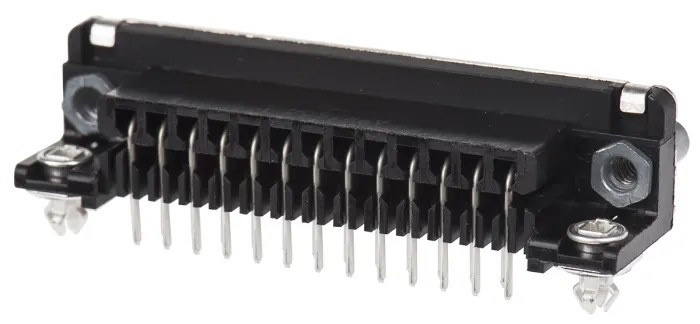

TE Connectivity AMPLIMITE HD-20 25 Way Right Angle 2.75 mm Pitch Through Hole D-Sub Connector 5747846-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HD-20 |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.75mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 25 |
| Contact Gender | Female |
| Connector Gender | Female |
| D-Sub Shell Size | D |
Key Features
- The connector features 25 female contacts ensuring reliable signal transmission.
- It is built with a thermoplastic housing rated 94V-0 for flame resistance.
- Gold over nickel plating on phosphor bronze contacts provides corrosion resistance and excellent conductivity.
- The connector includes 4 to 40 UNC screw lock mounting hardware for secure attachment.
- Suitable for operating temperatures from -55°C up to 105°C.
- Right angle orientation allows for space-efficient PCB layout configurations.
- Termination is solder type, compatible with standard PCB soldering processes.
- Shell size is D type with a robust tin-plated steel front shell.
Product Description
TE Connectivity 5747846-6 AMPLIMITE HD-20 25 Way Right Angle 2.75 mm Pitch Through Hole D-Sub Connector is engineered for reliable industrial and electronic applications requiring robust connections on PCBs. Its thermoplastic housing with a 94V-0 rating ensures flame retardancy, while the tin-plated steel front shell offers mechanical protection.
The connector is designed with right angle female contacts that are phosphor bronze with gold over nickel plating, optimizing both electrical performance and durability. The solder termination enables secure and durable PCB soldering.
Mounting is secured using 4 to 40 UNC screw locks that provide reliable mechanical fixation. This D-subminiature connector is suitable for challenging environments with operating temperatures ranging from -55°C to 105°C.
The AMPLIMITE HD-20 series offers an 8.08 mm footprint with boardlocks available optionally to ensure stability on PCBs of recommended thickness 1.58 mm to 2.36 mm. Zinc plated female screwlocks and tin plated brass eyelets further enhance mounting durability.
This connector is ideal for industrial, manufacturing, telecommunications, computing, and electronic instrumentation applications, where signal integrity and mechanical ruggedness are critical.
The connector features 25 female contacts ensuring reliable signal transmission. The housing is flame retardant thermoplastic rated 94V-0. Gold plated contacts provide corrosion resistance and improved conductivity. The mounting uses 4 to 40 UNC screw locks for secure attachment.
Right angle orientation allows efficient PCB configurations. Operating temperature ranges from -55°C to 105°C. Tin-plated steel front shell and brass eyelets provide mechanical strength. Solder termination type designed for PCB mounting.
Compatible for industrial and electronic manufacturing sectors. Part of the AMPLIMITE HD-20 series designed for precision and durability. Explore more industrial connectors and components in the Power Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 105°C.
This model uses a solder termination type designed for PCB mounting.
It features 25 female contacts for reliable signal transmission.
The pitch size of this D-Sub connector is 2.75 mm.
The housing is made of thermoplastic, while the contacts are made of phosphor bronze with gold over nickel plating.
It includes 4 to 40 UNC screw lock mounting hardware for secure attachment.
This connector has a right angle orientation, allowing for space-efficient PCB layout configurations.
The minimum operating temperature for this connector is -55°C.
The D-Sub shell size of this connector is classified as D.
This connector is suitable for industrial, manufacturing, telecommunications, computing, and electronic instrumentation applications.
Yes, it has optional boardlocks available to ensure stability on PCBs of recommended thickness 1.58 mm to 2.36 mm.
The connector is manufactured in India.
