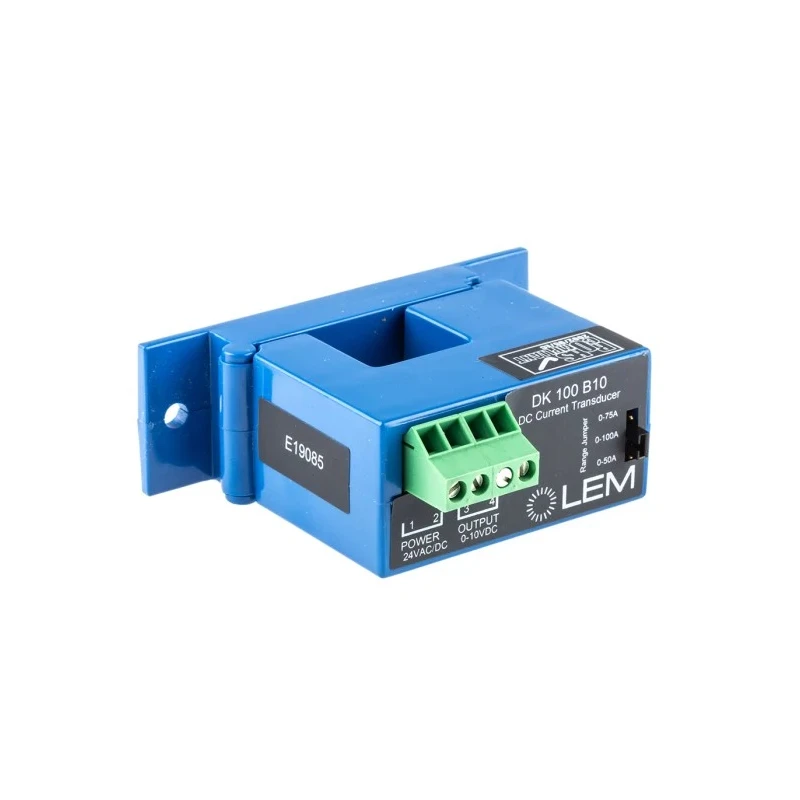

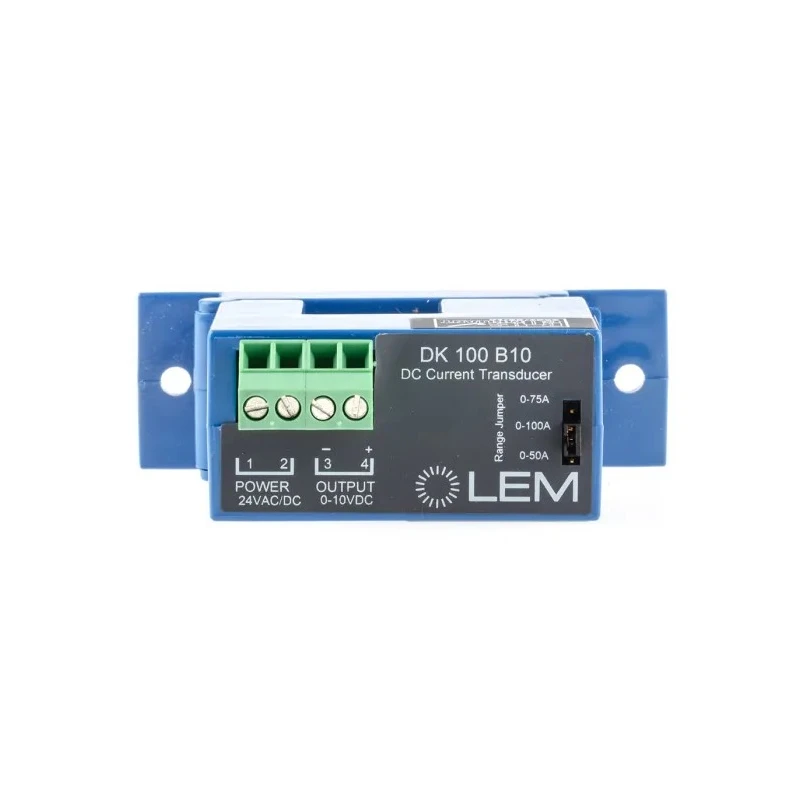

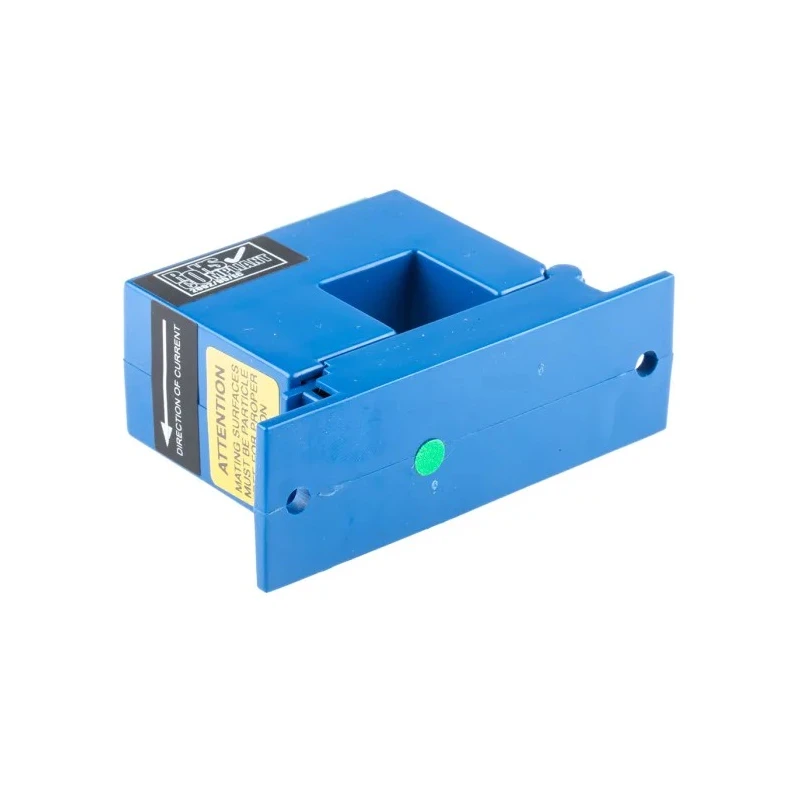

LEM DK-B10 Series Current Transformer 100 A 20V dc, 50 V dc 21.7mm Bore DK 100 B10

LEM DK 100 B10 Current Transformer from the DK-B10 series is designed for precise measurement of DC currents up to 100 A. It features a large 21.7mm bore diameter facilitating easy insertion of conductors without signal losses. The device operates at supply voltages of 20V and 50V dc, with an accuracy of ±1%, making it ideal for industrial automation, process control, and electrical measurement applications where reliable current sensing is required.

The transformer is built for panel mounting with a screw terminal interface that ensures secure electrical connections. Its compact dimensions (57.2 mm height, 30 mm width, 89.7 mm depth) enable installation in constrained spaces. Operating temperature range from -20°C to 50°C suits varied environmental conditions encountered in industrial environments.

Compliance with Safety IEC 61010-1 standards guarantees safe operation within electrical installations. The lightweight construction, approximately 120 grams, supports integration into existing systems without significant weight burden.

This current transformer is optimal for industrial use cases including electrical measurement in manufacturing plants, automation systems, and process control loops. Its design negates insertion losses, preserving signal integrity and enhancing system performance.

The unit is manufactured in the United States, ensuring adherence to stringent quality controls and product reliability standards common in high-end electrical transformer markets.

The DK-B10 series permits easy panel mounting with screw terminals. It maintains ±1% accuracy for precise current measurements. Operating temperature ranges from -20°C up to 50°C for versatility. Supplied voltage options include 20V and 50V dc for flexible installation.

The transformer weighs approximately 120 grams for convenient handling. Dimensions are 57.2 x 30 x 89.7 mm optimizing space utilization. Complies with Safety IEC 61010-1 ensuring operational safety. Manufactured in the United States with high-quality standards.
