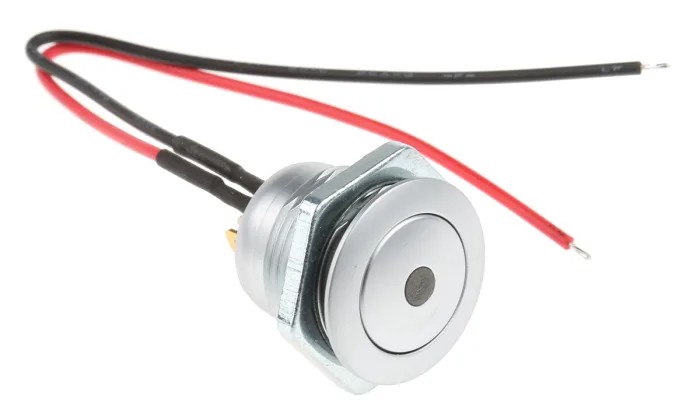

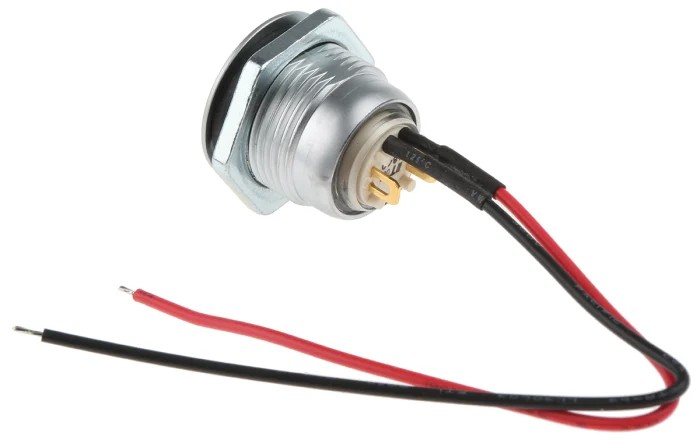

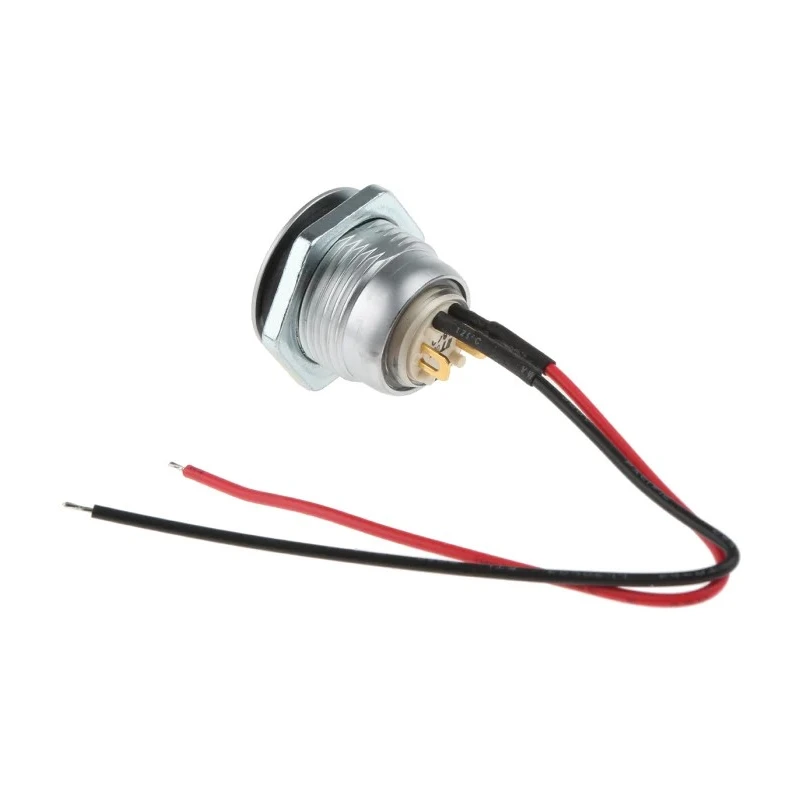

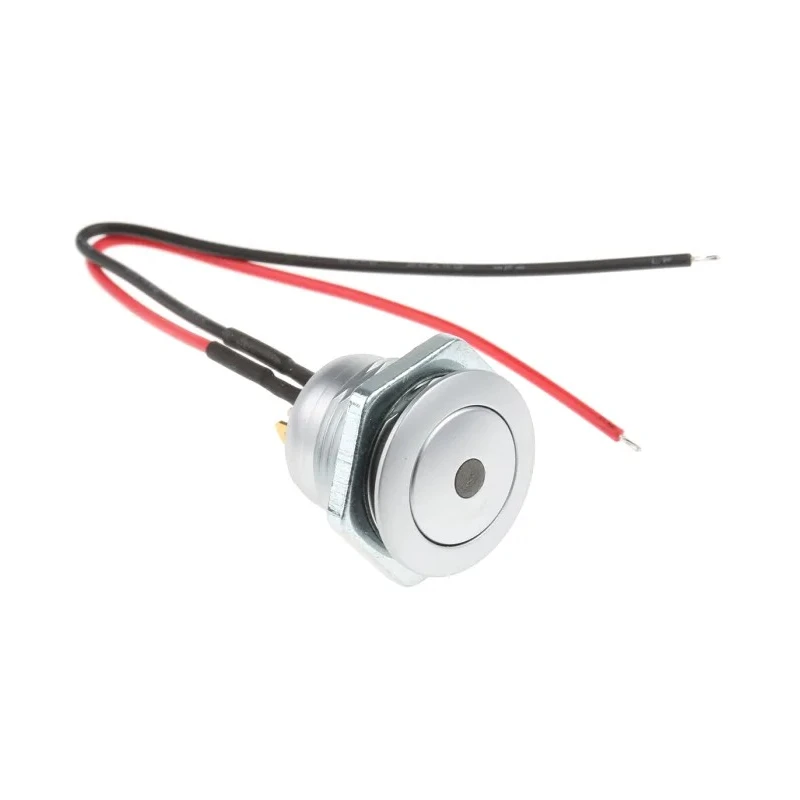

ITW Switches 57M Series Illuminated Miniature Push Button Switch, Latching, Panel Mount, 14.75 mm Cutout, SPST 57M-211G

Name: ITW Switches 57M Series Illuminated Miniature Push Button Switch, Latching, Panel Mount, 14.75 mm Cutout, SPST 57M-211G
Brand: ITW Switches
SKU: 137760
Price: 20.31 USD
Availability: InStock



Category Push Button Switches & Components Brand ITW Switches Condition New

Specifications

Country of Origin	Taiwan
Brand	ITW Switches
Model	57M-211G
IP Rating	IP67
Mount Type	Panel
Series	57M
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	On-Off
Minimum Operating Temperature	-25°C
Panel Cutout Size	14.75 mm
Terminal type	Solder
Standards/Approvals	CSA, UL
LED Colour	Green
Switch Operation	Latching
Actuator Colour	Silver
Contact DC Voltage	48V dc
Actuator Style	Dome
Switch Contact Current	250mA
Contact AC Voltage	1.5kV ac

Key Features

Features a durable silver actuator with dome style for easy operation.
Offers panel mounting type with IP67 sealing for dust and immersion protection.
Suitable for operating temperatures from -25°C to 85°C.
Rated for 250mA contact current with 48V DC and 1.5kV AC voltage tolerances.
Equipped with gold plated contacts and solder terminal connections for reliability.
Zinc alloy body with velour chrome plating ensures ruggedness in harsh environments.
Center-spot green LED illumination enhances visibility and status indication.
Complies with CSA and UL standards ensuring quality and safety.

Product Description

ITW Switches 57M-211G is an illuminated miniature push button switch designed for demanding panel-mount applications requiring reliable latching operation. This panel-mounted switch features a 14.75 mm panel cutout and utilizes a SPST contact configuration with a green LED center spot illumination. The actuator has a silver finish with a dome style, providing tactile feedback and smooth operation.

The switch's construction includes a robust zinc alloy body with a velour chrome plating, ensuring durability under rugged conditions. Gold plated contacts and solder terminals offer excellent connectivity and corrosion resistance. ITW Switches 57M Series switches are sealed to IP67, offering complete protection against dust ingress and temporary immersion in water, making them highly suitable for industrial and outdoor environments.

Electrical ratings include a contact current of 250mA at 48V DC and withstanding contact AC voltage up to 1.5kV. The switch operates reliably within a temperature range of -25°C to 85°C, making it suitable for a wide variety of industrial and commercial settings. Compliance with CSA and UL safety standards assures users of its quality and suitability for professional use.

This switch is widely used across multiple sectors such as industrial control systems, medical equipment, security devices, military hardware, food processing machinery, transportation electronics, and computer peripherals. Its latching operation provides dependable on/off switching for control panels and equipment interfaces.

Durable silver dome actuator for reliable user interface. Panel mounting with robust IP67 sealing for harsh conditions. Wide operating temperature range from -25°C to 85°C. Gold plated contacts with solder terminals for secure connections.

Green LED center spot illumination for enhanced visibility. Complies with CSA and UL regulatory standards. Ideal for industrial, medical, military, security, food processing, transportation, and computing applications.

Set contains one ITW Switches 57M-211G miniature illuminated push button switch with all specified technical features. Explore the full range of push button switches in the Electronics & Electricals category on EnvMart for quality industrial components.
