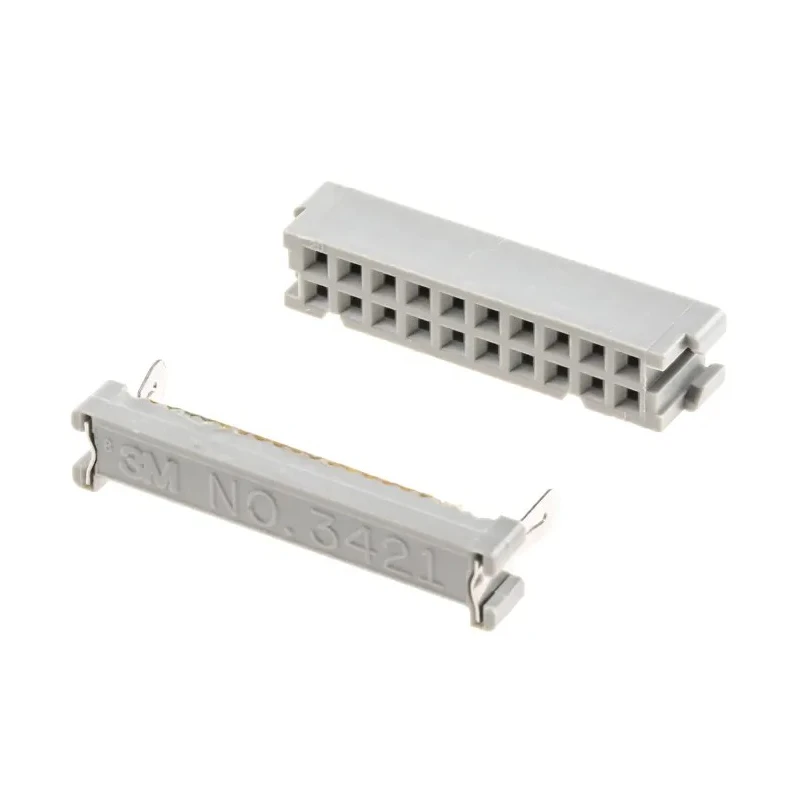

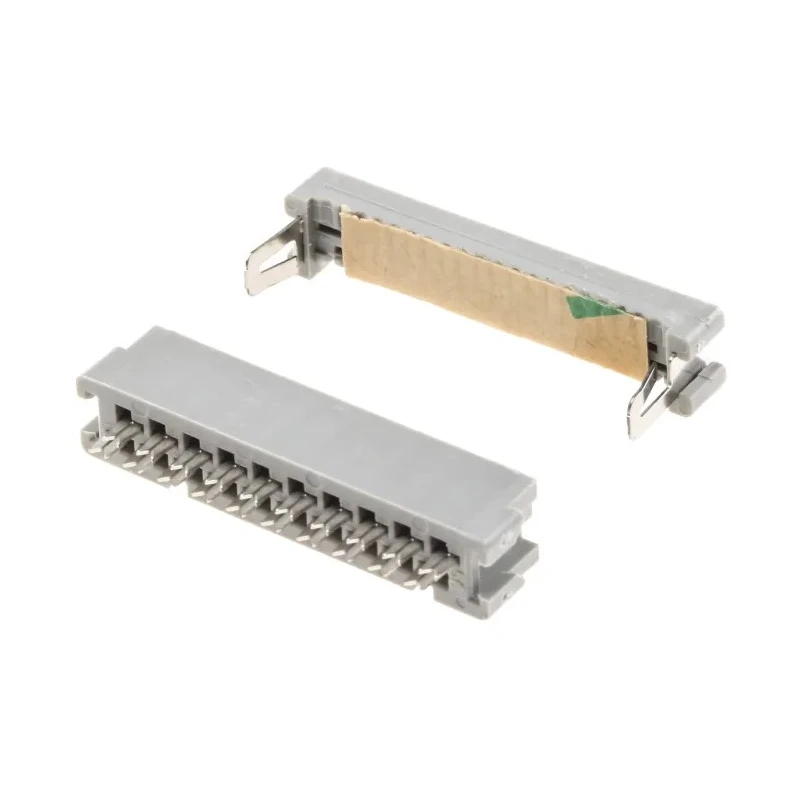

3M 20-Way IDC Connector Female for Cable, 2 Row, 1 A, 1000 V AC, Right Angle, Gold over Nickel Plating 3421-6000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V ac |
| Brand | 3M |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 3000 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| RS PRO 20-Way IDC Connector Female for Cable, 2 RowBrand | RS PRO |
Key Features
- The connector features 20 contacts arranged in 2 rows with a 2.54 mm pitch.
- Gold-plated contacts over nickel provide excellent conductivity and corrosion resistance.
- Housing made from durable polybutylene terephthalate ensures long-lasting performance.
- Right-angle orientation supports compact space applications and easy installation.
- Operating temperature range from -55 °C to 105 °C enables versatile environmental use.
- Phosphor bronze contacts offer stability and durability under electrical load.
- The connector is shrouded and designed for IDC termination for fast, solderless connections.
- Suitable for use in automation, electronics devices, and electrical system terminations.
Product Description
3M 3421-6000 IDC Connector is a high-quality 20-way female connector designed for cable termination. Rated for 1 A current and 1000 V AC voltage, this connector’s right-angle design enables efficient use in space-constrained electronic and electrical assemblies.
The shrouded housing, made of polybutylene terephthalate (PBT), provides mechanical robustness and chemical resistance. Contacts are manufactured from phosphor bronze, plated with gold over nickel for enhanced electrical conductivity and corrosion resistance, ensuring reliable and stable connections over prolonged use.
With a 2-row layout and 2.54 mm pitch, it facilitates precise and secure cable integration via insulation displacement contact (IDC) termination, eliminating the need for soldering. The broad operating temperature range of -55 °C to 105 °C makes it suitable for various industrial environments, including automation systems, PCB designs, and electrical sectors.
The connector’s female design allows straightforward mating with cable assemblies. Gold plating supports long-term durability against wear and corrosion. Right angle orientation optimizes installation in compact or limited-access spaces.
Rated for 1000 V AC ensures compliance with demanding voltage applications. Material choice guarantees mechanical and electrical stability under operating heat and cold. IDC terminations streamline assembly processes in manufacturing environments.
Application areas include industrial automation, electrical devices, and communications hardware. This 3M IDC connector meets the requirements for secure, high-performance electrical terminations and is an essential component in electronic and electrical systems.
Explore our extensive range of IDC Connectors and discover solutions tailored for your industrial and electronics assembly needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for 1000 V AC, making it suitable for demanding voltage applications.
It has a current rating of 1 A, which is appropriate for various electrical applications.
The housing is made from polybutylene terephthalate (PBT), and the contacts are made of phosphor bronze with gold over nickel plating for enhanced conductivity and corrosion resistance.
It features a 2.54 mm pitch with 20 contacts arranged in 2 rows.
The operating temperature range is from -55 °C to 105 °C, allowing for versatile environmental use.
This connector uses insulation displacement contact (IDC) termination, which allows for fast, solderless connections.
It has a right-angle orientation, which is beneficial for installations in compact or limited-access spaces.
The connector is shrouded, providing additional protection and ensuring secure connections.
It is suitable for use in industrial automation, electrical devices, and communications hardware.
The connector features female contacts, allowing straightforward mating with cable assemblies.
This model supports cable mounting, making it easy to integrate into various electrical systems.
The connector is manufactured in India, ensuring compliance with local manufacturing standards.
