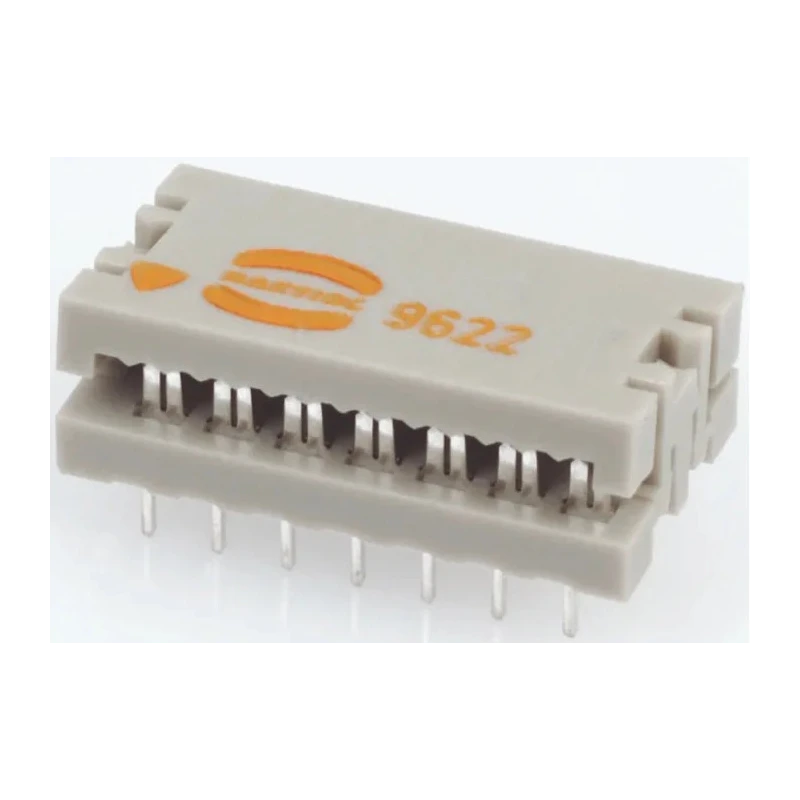

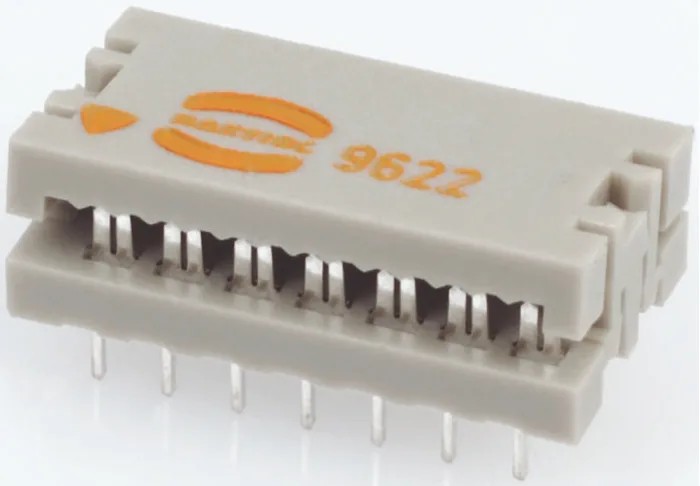

HARTING 24-Way IDC Connector Male for Cable, 2 Row, 1A, 500V, Tin Plating, Thermoplastic Resin Housing 09170249622
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Thermoplastic Resin |
| Contact Material | Nickel |
| Series | SEK-17 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Supports a current rating of 1 ampere for low power circuits.
- Features a 2.54 mm pitch between contacts for precise wiring.
- Includes tin-plated contacts ensuring reliable conductivity and corrosion resistance.
- Constructed with thermoplastic resin housing for durability and insulation.
- Designed with right-angle orientation for cable mounting applications.
- Operates reliably in temperatures ranging from -40°C to 125°C.
- Designed for 500V voltage rating suitable for electronic components.
- Connector employs IDC termination for efficient insulation displacement.
Product Description
HARTING 09170249622 24-Way IDC Connector Male for Cable, 2 Row, supports a 1A current rating and operates at 500V. The connector features a 2.54 mm pitch and is tin-plated for enhanced conductivity and corrosion resistance. Its thermoplastic resin housing provides robust electrical insulation and mechanical durability.
The connector is designed for right-angle cable mounting applications with a shrouded male interface and uses insulation displacement connection (IDC) technology. It performs reliably within a temperature range from -40°C to 125°C, making it suitable for demanding electronic environments.
Manufactured in Germany, this HARTING IDC Connector complies with UL and CSA safety approvals, assuring high standards in industrial and electronic component applications. The nickel contact material and shrouded configuration provide enhanced electrical performance and user safety.
This IDC Connector is ideal for electronic assembly, PCB wiring, control systems, and communication equipment manufacturing. Its robust construction and standardized pitch ensure compatibility and reliability in industrial, laboratory, and manufacturing settings.
Supports 1 amp current for low power electronics. 2.54 mm pitch for precise, standardized connectivity. Tin-plated contacts aid conductivity and longevity. Durable thermoplastic resin housing for electrical safety. Right-angle cable mount design facilitates compact installations.
Wide operating temperature tolerance (-40°C to 125°C). UL and CSA certified for industrial applications. Nickel contact material ensures corrosion resistance. Manufactured in Germany with high-quality materials. Suitable for electronics, communication, and industrial use cases.
Explore more electronic connectors and components to complete your project on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector supports a current rating of 1 ampere, suitable for low power circuits.
The connector operates at a voltage rating of 500V, making it suitable for electronic components.
It features a 2.54 mm pitch between contacts, ensuring precise wiring for connections.
The connector is constructed with a thermoplastic resin housing and features tin-plated contacts for reliable conductivity and corrosion resistance.
It operates reliably within a temperature range from -40°C to 125°C, suitable for demanding environments.
It employs insulation displacement connection (IDC) technology for efficient termination.
This model is designed with a right-angle orientation, which facilitates cable mounting applications.
The connector features 24 contacts, designed for various electronic applications.
The contacts are made of nickel, providing enhanced electrical performance and corrosion resistance.
Yes, it complies with UL and CSA safety approvals, ensuring it meets high standards for industrial and electronic applications.
This connector is manufactured in Germany, ensuring adherence to high-quality standards.
It is ideal for electronic assembly, PCB wiring, control systems, and communication equipment manufacturing.
