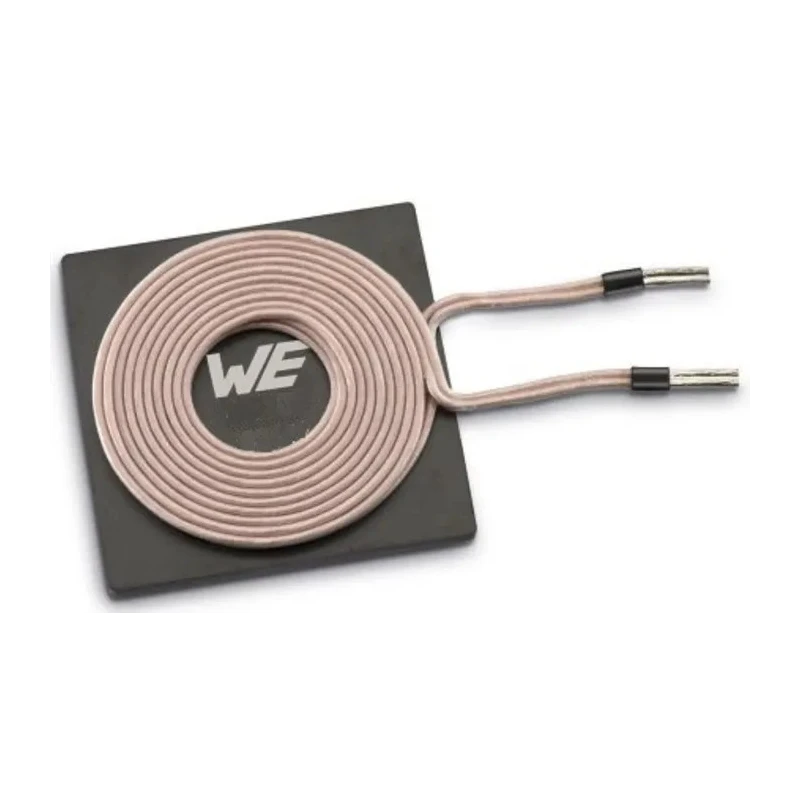

Wurth Elektronik WE-WPCC Wireless Charging Coil Receiver 1.7 A, 7.9 μH, 29 mm Diameter 760308102213

Wurth Elektronik 760308102213 WE-WPCC Wireless Charging Coil Receiver is engineered to meet the Qi wireless charging standard by enabling efficient wireless power transfer via magnetic induction. It has a 7.9 μH inductance and a maximum DC current capacity of 1.7 A, ensuring reliable charging performance for portable electronics such as mobile phones, smart watches, and fitness trackers.

This coil uses a ferrite core and radial mounting with radial termination style, designed to fit in compact electronic assemblies with a 29 mm diameter and a height of 0.62 mm. The coil features a ±10% inductance tolerance and minimum quality factor of 18 to ensure stable inductive coupling in Qi charging systems.

The magnetic field generated by the coil is highly focused, significantly reducing leakage fields, supported by an EMI shield mounted at the coil's back. The coil operates efficiently up to 105°C, suitable for demanding environments including industrial clean rooms and sensitive medical facilities.

Wurth Elektronik's Wireless Charging Coils provide a robust, connector-free charging solution that eliminates wear and contamination risks caused by physical connectors. This makes them ideal for explosion-sensitive and clean-room environments as well as consumer devices.

Receiver coil designed specifically for Qi wireless charging applications. Compact 29 mm diameter and thin 0.62 mm height form factor for easy integration. Uses ferrite core material with radial mount type and radial termination.

Wide operating temperature range from -20°C to 105°C. Low DC resistance and high quality factor improves charging efficiency. Includes EMI shield to reduce emissions and leakage fields. Compliant with RoHS standards for environmental safety.

Manufactured in Taiwan, Province Of China with quality assurance.

This product is suitable for industrial, commercial, electronic device manufacturing, medical instrumentation, and clean-room applications where wireless charging provides a reliable and maintenance-free power solution. Employ Wurth Elektronik’s WE-WPCC series coils to enhance your wireless power products with proven performance and global Qi standard compliance.
