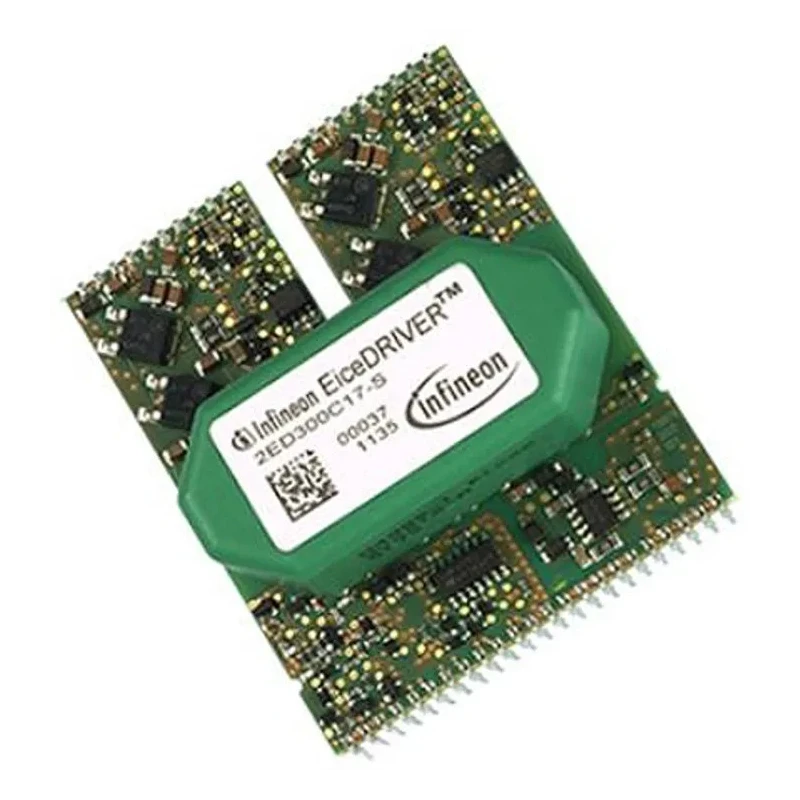

Infineon MOSFET Gate Driver Dual Channel 30A 45-Pin 15V Surface Mount 2ED300C17STROHSBPSA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon MOSFET Gate Driver Dual Channel 30A 45-Pin 15V Surface Mount 2ED300C17STROHSBPSA1

Name: Infineon MOSFET Gate Driver Dual Channel 30A 45-Pin 15V Surface Mount 2ED300C17STROHSBPSA1
Brand: Infineon
SKU: 185108
Price: 235.26 USD
Availability: InStock



Category MOSFET Gate Driver Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	25mm
Length	60.5mm
Model	2ED300C17STROHSBPSA1
Width	72mm
Mount Type	Surface
Series	2ED300C17S
Output Current	30A
Maximum Operating Temperature	85°C
Package Type	Tray
Minimum Operating Temperature	-40°C
Number of outputs	2
Pin Count	45
Maximum Supply Voltage	15V
Minimum Supply Voltage	16V
Number of Drivers	2
Driver Type	MOSFET

Key Features

Provides a high output current of 30 amperes for medium and high power modules.
Features 45 pins in a surface mount package for robust connectivity.
Operates between minimum 15V and 16V supply voltages with dual driver outputs.
Designed to operate reliably in temperatures from -40°C to 85°C.
Incorporates reinforced isolation compliant with EN50178 for safety.
Includes integrated DC-DC SMPS with high peak output current and ±15 V secondary drive voltage.
Soft shutdown and short propagation delay enhance fault tolerance and efficiency.
Coated version available for harsh environments like wind turbines and railway traction.

Product Description

Infineon 2ED300C17STROHSBPSA1 is a high-performance dual channel MOSFET gate driver designed for demanding industrial applications. This device supports medium and high power IGBT modules operating at voltages of 600 V, 1200 V, and 1700 V, providing an output current capacity of up to 30 A. The surface mount package with 45 pins ensures reliable installation on industrial PCBs.

Its operational voltage ranges from 15 V to 16 V supply with two driver outputs designed for MOSFET and IGBT modules. The 2ED300C17STROHSBPSA1 features reinforced isolation compliant with EN50178 standards, suitable for safety-critical systems.

Designed to operate within an industrial temperature range of -40°C to 85°C, it supports applications in environments such as windmills, railway traction, and heavy industrial machinery thanks to its robust coating and high RFI immunity.

Key features include integrated DC-DC SMPS for efficient power management, soft shutdown mechanisms for fault protection, and short propagation delay times that optimize switching performance.

High output current capability of 30 A for high power switching. Dual driver outputs in a 45-pin surface mount package. Wide operating temperature range for harsh industrial conditions. Reinforced isolation meeting EN50178 for secure system operation.

Integrated DC-DC switched mode power supply enhances power efficiency. Soft shutdown protects against fault conditions. High electromagnetic interference immunity ensures reliability. Special coating version for severe operational environments.

Compatible with Infineon IGBT modules at various voltage ratings. Short propagation delay time to maximize switching speed.

This MOSFET Gate Driver is ideal for industrial, manufacturing, renewable energy, rail traction, and power conversion applications. Explore more Infineon semiconductor products and Gate Drivers on EnvMart for your electronic design and production needs.
