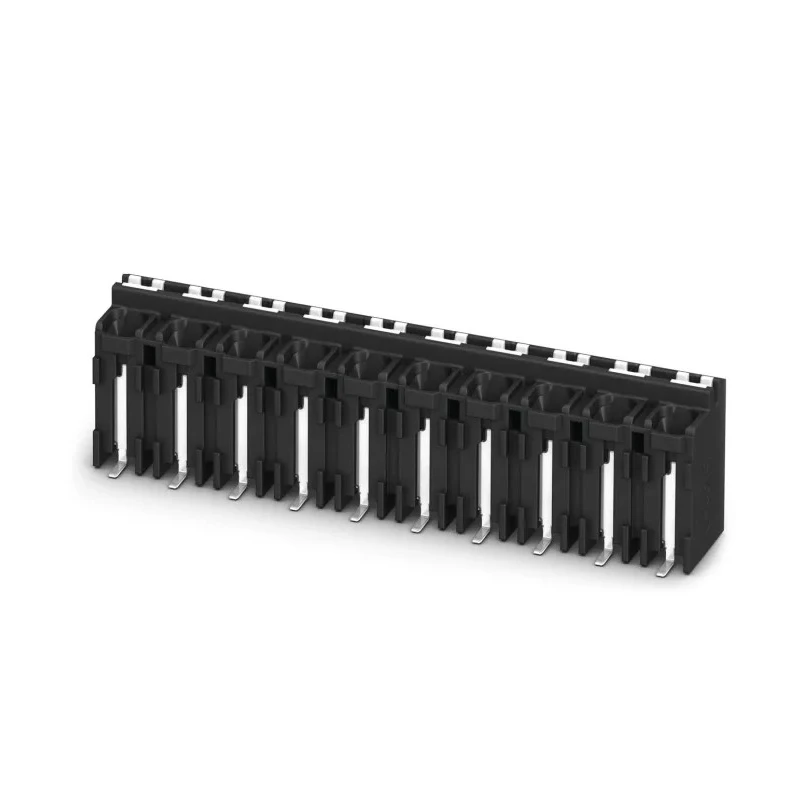

Phoenix Contact PCB Terminal Block 4-Contact 5 mm Pitch Surface Mount 13.5A 500V SPT-SMD 1.5/4-V-5.0 R44 1824323
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | Phoenix Contact |
| Colour | Black |
| Orientation | Straight |
| Current | 13.5A |
| Length | 19mm |
| Model | 1824323 |
| Depth | 13.6mm |
| Width | 7.7mm |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Series | SPT-SMD 1.5/ 4-V-5.0 R44 |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 4 |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Spring |
Key Features
- This PCB terminal block supports currents up to 13.5 amperes for reliable electrical connections.
- The 5 mm pitch spacing facilitates easy PCB layout and integration.
- Spring actuation lever allows easy connection and disconnection of conductors without tools.
- Constructed with liquid crystal polymer housing providing durability and insulating properties.
- Supports wire sizes from 0.2 mm² to 1.5 mm² and AWG 24 to AWG 16 for versatility.
- Surface mounted with spring wire connection method ensuring secure and fast contacts.
- Compact dimensions of 19 mm length, 7.7 mm width, and 13.6 mm depth optimize PCB space.
- Available in black color with a single row, straight orientation configuration.
Product Description
Phoenix Contact 1824323 PCB Terminal Block is a high-quality 4-contact terminal block designed for surface mounting on printed circuit boards with a 5 mm pitch. Rated for 13.5 amperes current and 500 volts, this terminal block enables secure and reliable electrical connections in electronic assemblies.
The housing is made from liquid crystal polymer, ensuring excellent electrical insulation and mechanical durability. It supports solid and stranded conductors from 0.2 mm² up to 1.5 mm² cross-sectional area, equivalent to AWG 24 to AWG 16 wire sizes. The spring actuation lever and push-in spring connection technology provide fast, tool-free connection and disconnection, reducing assembly time and maintenance costs.
Compact with dimensions of 19 mm length, 7.7 mm width, and 13.6 mm depth, this terminal block occupies minimal PCB real estate while offering a spring type wire connection method and straight orientation. It is finished in black and configured as a single row, 4-contact terminal block suitable for high-density PCB layouts.
Manufactured in Germany, it meets industrial quality expectations and is packaged in tape-on-reel format compliant with IEC 60283-3 standards. This facilitates automated placement and soldering during the reflow process, integrating seamlessly into modern manufacturing workflows.
The horizontal version features PCB anchoring pins for precise alignment, while the vertical version includes twin soldering pins for secure attachment, supporting versatile board designs. Suitable for electronic components, power connectors, and industrial control applications, this terminal block is ideal for electronics manufacturing, automation, instrumentation, and industrial equipment.
Supports currents of up to 13.5 A for robust electrical performance. 5 mm pitch and single row optimize PCB layout efficiency. Tool-free spring actuation lever enables quick conductor handling. Durable liquid crystal polymer housing provides thermal and electrical insulation.
Wire size range adapts to various wiring requirements from 0.2 mm² to 1.5 mm². Surface mount design supports automated assembly processes. Compact dimensions maximize PCB space utilization. Made in Germany ensuring high manufacturing standards.
Explore a comprehensive range of PCB Terminal Blocks at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a current rating of up to 13.5 amperes.
It is rated for a voltage of 500 volts.
It supports wire sizes ranging from 0.2 mm² to 1.5 mm² and AWG 24 to AWG 16.
The pitch size is 5 mm, which facilitates easy PCB layout and integration.
The housing is constructed from liquid crystal polymer, providing durability and insulating properties.
It has dimensions of 19 mm in length, 7.7 mm in width, and 13.6 mm in depth.
It uses a spring connection method, allowing for tool-free connection and disconnection of conductors.
This model features a straight orientation and is designed for surface mounting.
It is manufactured in Germany, ensuring adherence to industrial quality standards.
This terminal block has 4 contacts, suitable for various applications in electronic assemblies.
It is suitable for electronic components, power connectors, and industrial control applications.
It is packaged in tape-on-reel format, compliant with IEC 60283-3 standards for automated assembly.
