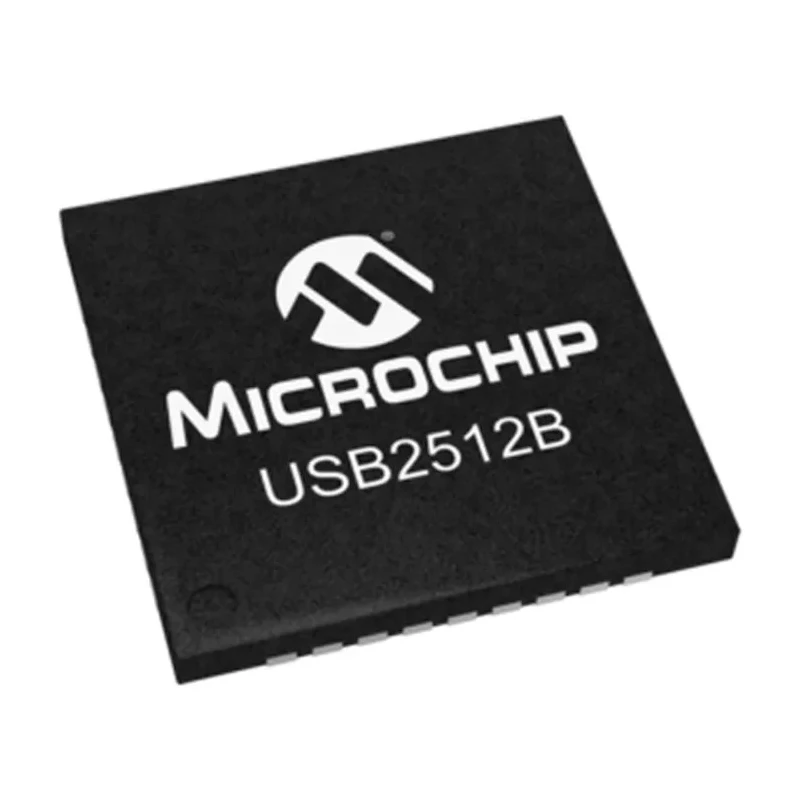

Microchip USB2512B-I/M2, 2-Channel USB 2.0 Controller IC, 3.0-3.6V, 36-Pin SQFN USB2512B-I/M2

Free Delivery in India | Lowest Global Shipping Charges

Microchip USB2512B-I/M2, 2-Channel USB 2.0 Controller IC, 3.0-3.6V, 36-Pin SQFN USB2512B-I/M2

Name: Microchip USB2512B-I/M2, 2-Channel USB 2.0 Controller IC, 3.0-3.6V, 36-Pin SQFN USB2512B-I/M2
Brand: Microchip
SKU: 184988
Price: 4.08 USD
Availability: InStock



Category USB Interface ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	900μm
Length	6mm
Model	USB2512B-I/M2
Mount Type	Surface
Series	USB251
Maximum Operating Temperature	85°C
Package Type	SQFN
Sub Type	Transceiver
Minimum Operating Temperature	-40°C
Interfaces	USB 2
Pin Count	36
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	3V
Number of Transceivers	2
USB Specification	USB 2.0
Supported Protocols	USB 2.0

Key Features

Supports USB 2.0 protocol with Hi-Speed data rate of 480 Mbps.
Features two dedicated transceivers with multi-port transaction translation.
Built-in ESD protection ensures device robustness.
Operates reliably within -40°C to 85°C temperature range.
Compact 36-pin SQFN surface mount package for space-efficient PCB design.
Complies fully with USB Battery Charging Specification Rev. 1.1 for charging downstream ports.
Includes flexible port mapping and programmable USB differential-pair pin locations.
Programmable USB drive strength for enhanced signal integrity.

Product Description

Microchip USB2512B-I/M2 is a 2-channel USB 2.0 controller IC designed to provide high performance and low power consumption in USB hub applications. Operable between 3V and 3.6V supply voltage, this controller features a 36-pin SQFN surface-mount package optimized for PCB layout efficiency.

This device supports Hi-Speed (480 Mbps), Full-Speed (12 Mbps), and Low-Speed (1.5 Mbps) USB communications along with compliance to USB Battery Charging specification Rev. 1.1, enabling charging downstream port support.

Featuring MultiTRAK™ technology, the USB2512B-I/M2 includes a dedicated transaction translator per port maintaining full-speed throughput independent of downstream active connections. The integrated features such as PortMap, PortSwap, and PHYBoost provide customizable USB port configurations and programmable signal drive strengths to improve signal integrity and layout flexibility.

Robust ESD protection and a wide operating temperature range from -40°C to 85°C make this controller ideal for industrial, embedded, and computing equipment USB hub implementations.

The controller is a drop-in replacement compatible with earlier USB251x/USB251xA devices, simplifying integration and upgrade paths for existing designs. Supports USB 2.0 with Hi-Speed data rates up to 480 Mbps. Two USB transceiver channels equipped with MultiTRAK™ technology.

Programmable USB differential-pair pin locations (PortSwap) for flexible PCB design. Compliant with USB Battery Charging Specification Rev. 1.1. Offers flexible port mapping and disable sequencing. Programmable USB signal drive strength (PHYBoost).

Wide supply voltage range from 3.0V to 3.6V. Compact 36-pin SQFN surface-mount package. ESD protection for enhanced reliability. Industrial temperature range suitable for harsh environments.

This Microchip USB controller IC is suitable for industrial, computing, and embedded USB hub designs seeking reliable, flexible, and efficient USB 2.0 interfacing capabilities. Explore the Electronics & Electricals > Semiconductor > USB Interface ICs category on EnvMart for additional compatible components and accessories.
