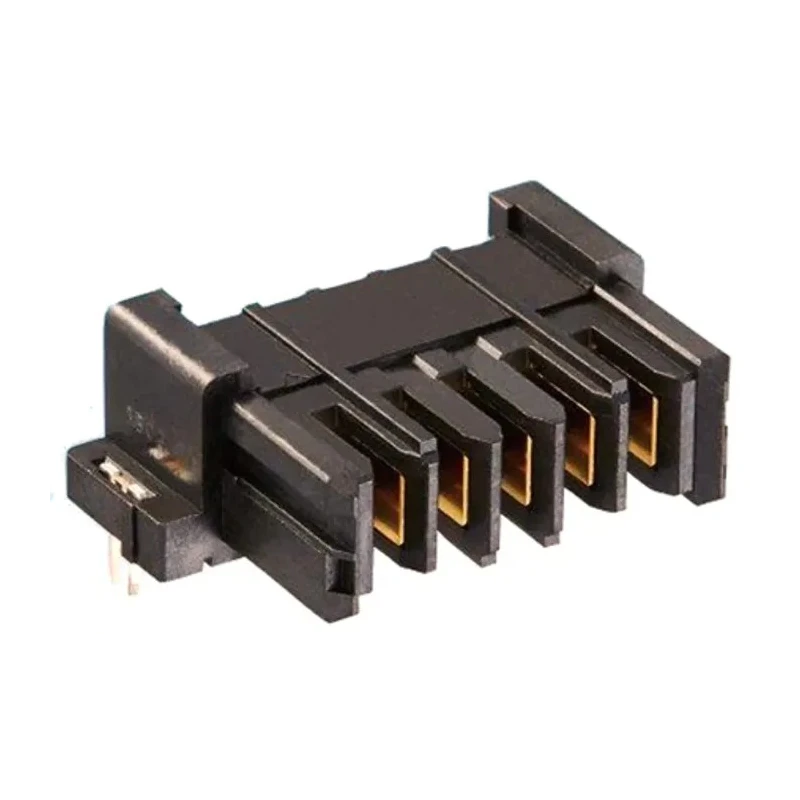

Hirose FunctionMAX FX30B Series Right Angle Through Hole 2-Contact 2 Row 7.62 mm Pitch PCB Socket FX30B

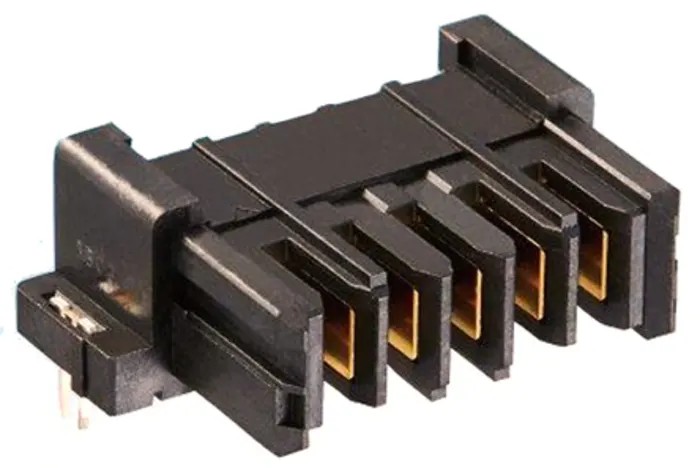

Hirose FX30B PCB Socket FX30B model is a 2-contact, 2-row right angle through hole connector with a 7.62 mm pitch, designed for high-reliability board-to-board electrical connections operating at 600V and current capacity of up to 17A. Constructed with polyamide resin housing and gold plated copper contacts, this connector ensures durability and excellent conductivity in electronic and industrial applications.

The floating structure of the FunctionMAX FX30B series absorbs mounting misalignment by allowing play of +0.3 mm in XY axes and 1 mm in Z axis, preventing solder cracking and assembly errors. Metal fittings provide robust fixation to PCBs and enhanced mechanical strength against deformation in all directions. The connector has a self-aligning and self-guiding design with large mating guides and alignment movement of ±1.3 mm to ease mating and prevent incorrect insertion.

The contacts feature a multi-point contact structure with four independent contact points for improved electrical reliability and low insertion/extraction forces. Its operating temperature range from -55°C to 105°C allows use in harsh environments. Typical applications include broadcast equipment, base station transceivers, industrial controls, measuring instruments, medical devices, and projectors.

This connector is manufactured in Japan, ensuring quality and performance compliance. It is part of the FunctionMAX FX30B series designed specifically for power and signal board-to-board connections demanding robust mechanical and electrical characteristics.

Floating structure absorbs mounting misalignments for secure connections. Self-aligning and guiding features simplify installation and avoid damage. Robust metal fittings secure the connector firmly to the PCB. Gold plated copper contacts with multi-point structure enhance contact reliability.

High current rating of 17A per contact supports demanding power applications. Wide operating temperature range suitable for industrial environments. Low insertion and extraction forces improve connector lifespan and ease of use.

Resistant to deformation from mechanical stresses in multiple directions. Manufactured in Japan for guaranteed quality and performance. For more high-quality PCB Sockets and connectors, explore the Electronics Components category at EnvMart.
