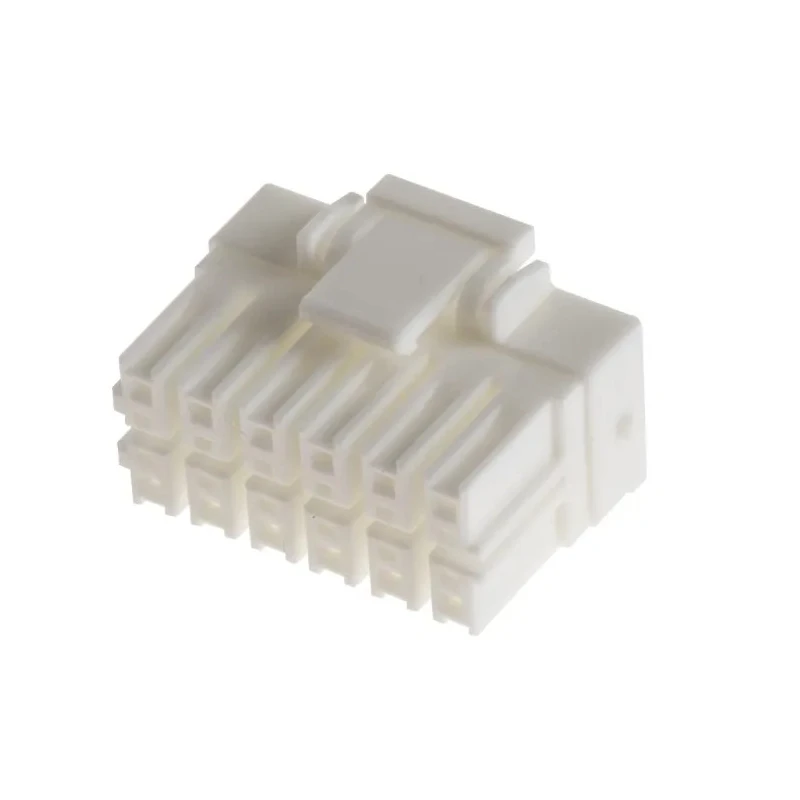

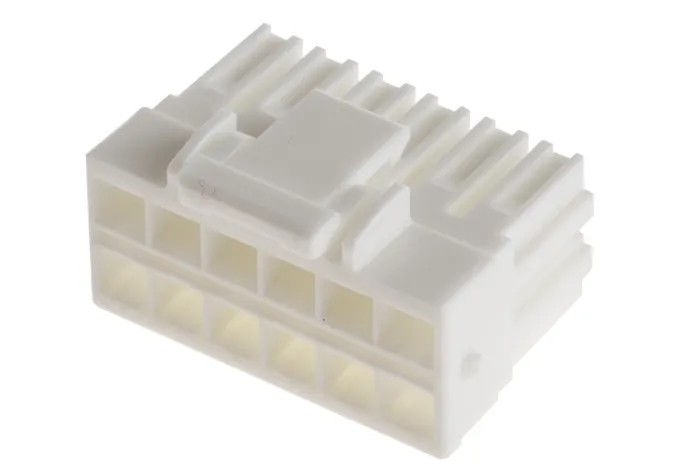

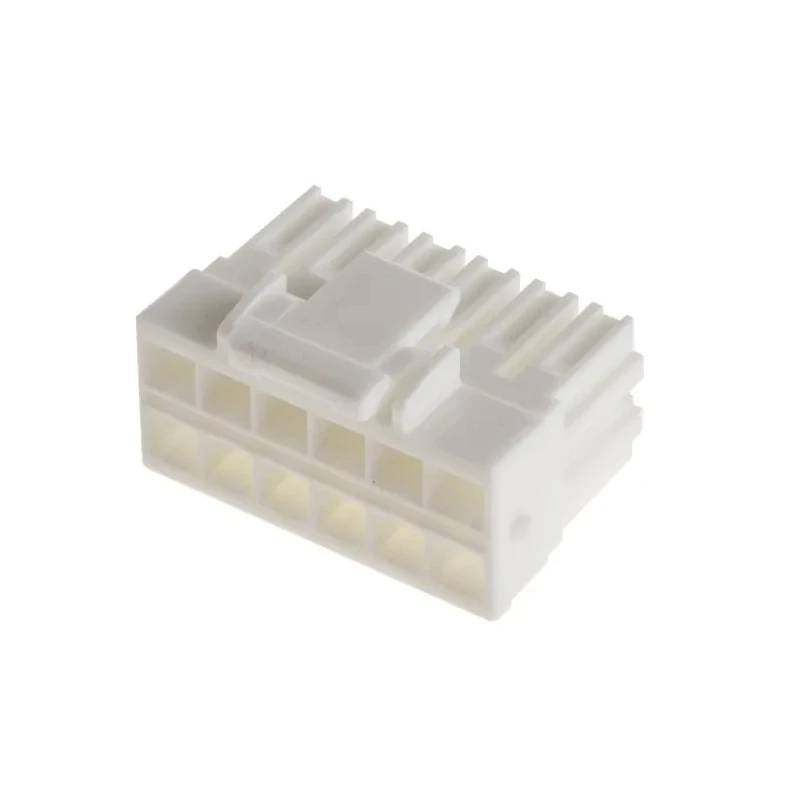

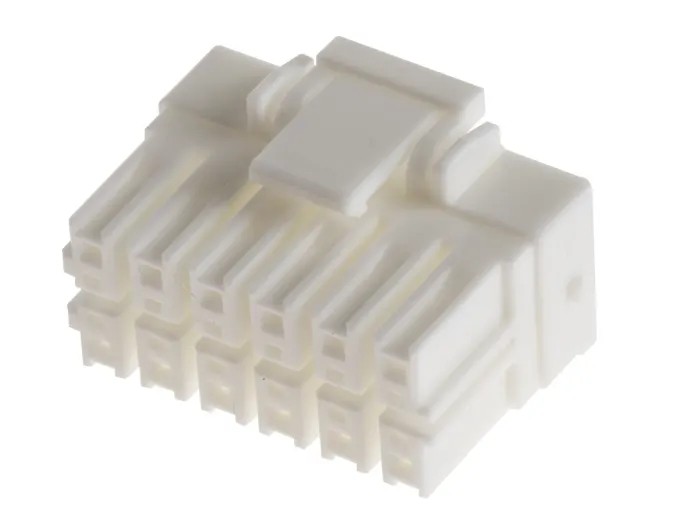

Hirose EnerBee DF33C Female Connector Housing 0.4 mm Pitch 12 Way 2 Row Straight DF33C

Hirose DF33C Female Connector Housing, model DF33C, is a compact PCB crimp socket housing designed for internal power source applications. It features a 0.4 mm pitch with 12 contacts arranged in 2 rows, making it suitable for demanding electronic and industrial power connector needs. The housing material is polybutylene terephthalate, offering high durability and resistance in various environments.

This DF33C Series from EnerBee is designed with a robust positive locking mechanism that ensures the connector remains secure even under drops or external shocks. When mated, a clear tactile click confirms full engagement, guaranteeing both electrical and mechanical reliability essential in industrial, laboratory, manufacturing, and power distribution contexts.

The connector accommodates a maximum current of 5A when used with 20 AWG wire, supporting compact yet high-power applications like LED lighting systems, medical equipment, robotics, home appliances, and industrial controllers. The contacts are separated by internal walls to prevent short circuits, while the two-point spring contact ensures a stable connection that resists vibration-induced wear such as fretting or corrosion.

Length and width dimensions of 21 mm and 15.1 mm respectively facilitate PCB mounting with cable orientation straight. This product complies with the Glow Wire IEC 60695-2-11 standard, adding an additional safety layer for electrical installations. The contacts for this housing must be purchased separately and contact retainers are available for ensuring fully inserted contacts.

The compact design supports up to 5A current capacity. Positive locking mechanism with tactile click confirmation for secure mating. Separated contacts prevent short circuits within the housing. Stable two-point spring contacts reduce fretting corrosion risk.

Durable polybutylene terephthalate housing material. Glow Wire compliant to IEC safety standards. Ideal for LED lighting, medical devices, robotics, and industrial controllers. Straight orientation with cable mount for easy connectivity.

Manufactured in Japan to the highest quality standards, the Hirose EnerBee DF33C delivers superior performance with a compact form factor. Suitable for industrial, laboratory, electronic, and manufacturing environments, this Connector Housing is a reliable choice for high-end power connectivity solutions. Browse related connector products and accessories on EnvMart for your industrial and electronic component needs.
