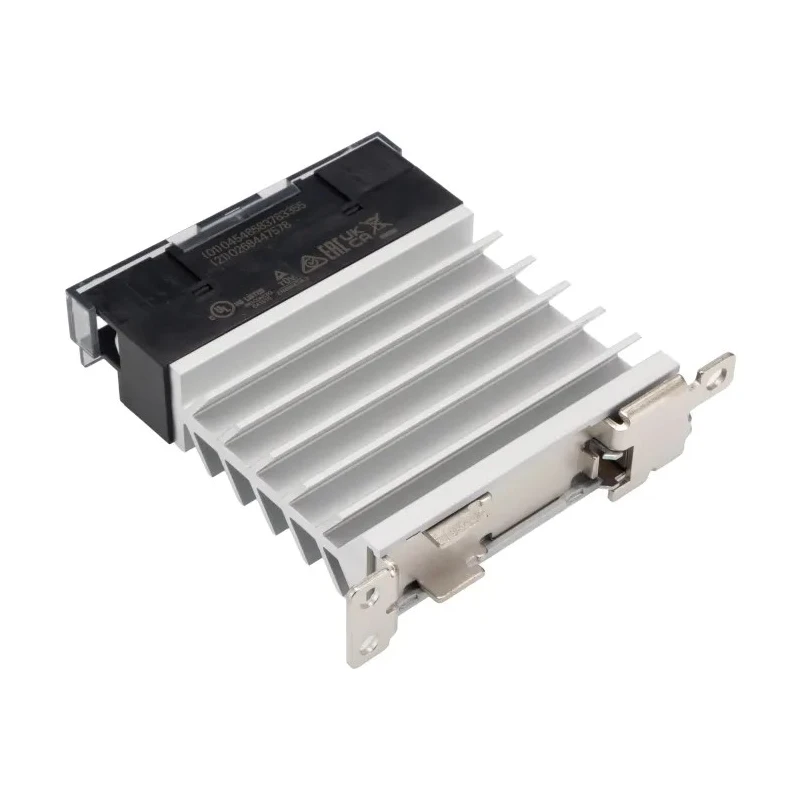

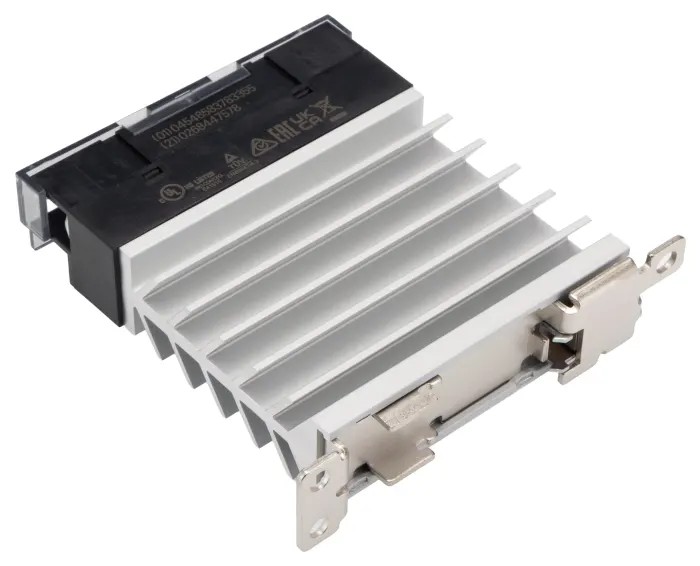

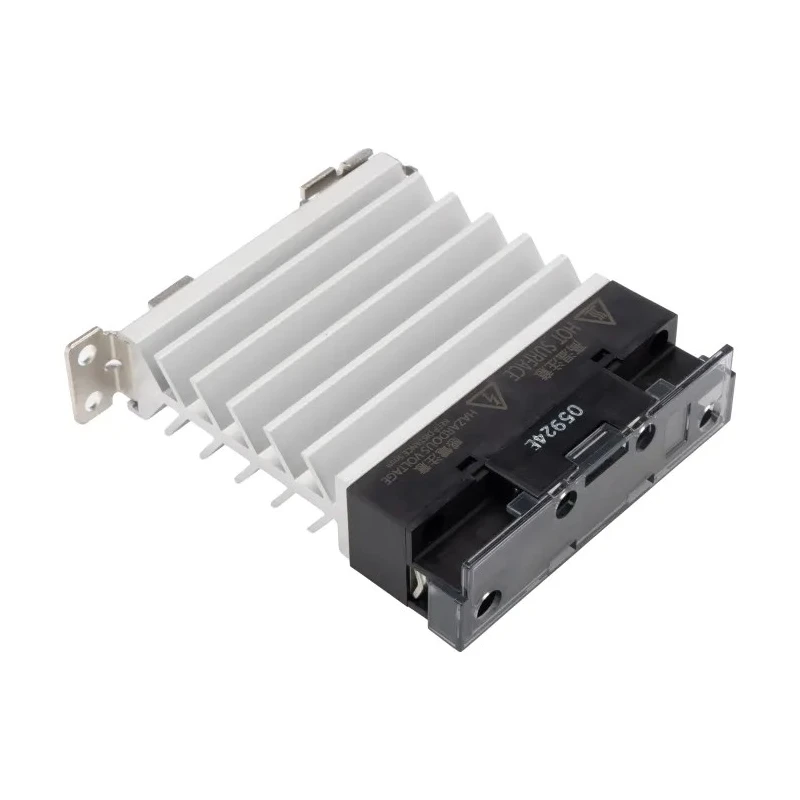

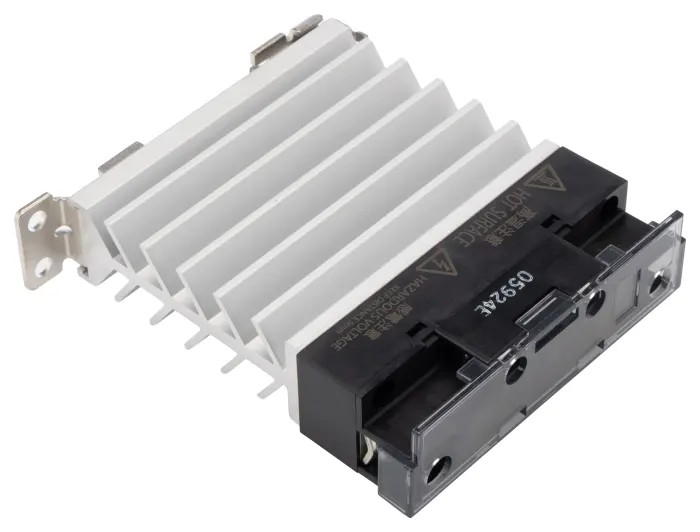

Omron Single-Phase Solid State Relay with 15 A Load Capacity, DIN Rail Mount, 528 V AC Load, 24 V DC Control G3PJ

The Omron G3PJ-515B DC12-24 is a single-phase solid state relay (SSR) designed for industrial and automation applications requiring reliable switching of AC loads up to 15 A. It mounts easily on standard DIN rails, facilitating streamlined and space-saving control panel assembly.

This SSR operates with a control voltage range of 12 to 24 V DC, allowing compatibility with various control circuits. The relay supports load voltages from 75 V AC up to a maximum of 528 V AC, making it suitable for diverse electrical environments.

Key design features include a slim profile for compact panel layouts and low heat generation, permitting close mounting of multiple relays without additional cooling. Screw terminal connections on both input and output provide secure wiring.

The integrated zero cross function enables switching at AC voltage zero crossing points, effectively minimizing electrical noise and transient currents in sensitive industrial equipment. An orange LED indicator provides a clear visual signal of relay status during operation.

The G3PJ-515B is built to withstand harsh industrial conditions, with operating temperatures from -30°C to 80°C and robust vibration and shock resistance specifications. It meets CE, cULus, and TUV certifications, ensuring compliance with international safety and quality standards.

This solid state relay is an ideal choice for industrial automation, manufacturing equipment control, HVAC systems, and other applications where silent and reliable switching is essential. Its design facilitates reduced control panel size and lower cooling requirements, enhancing overall system efficiency.

Supports a maximum load voltage of 528 V AC for versatile industrial applications. Features screw terminal connections ensuring secure and easy wiring. Incorporates zero cross function to reduce electrical noise during switching.

Compact slim design enables efficient space utilization in control panels. Rated for operation between -30°C and 80°C ambient temperatures. Equipped with an orange LED indicator for operational status monitoring. Output type is Triac compatible for AC load control.

Offers low off-state leakage current of 20 mA at rated voltages. Compliant with CE, cULus, and TUV standards for safety and quality assurance. Explore further related components and solutions in the Solid State Relay category at EnvMart.
