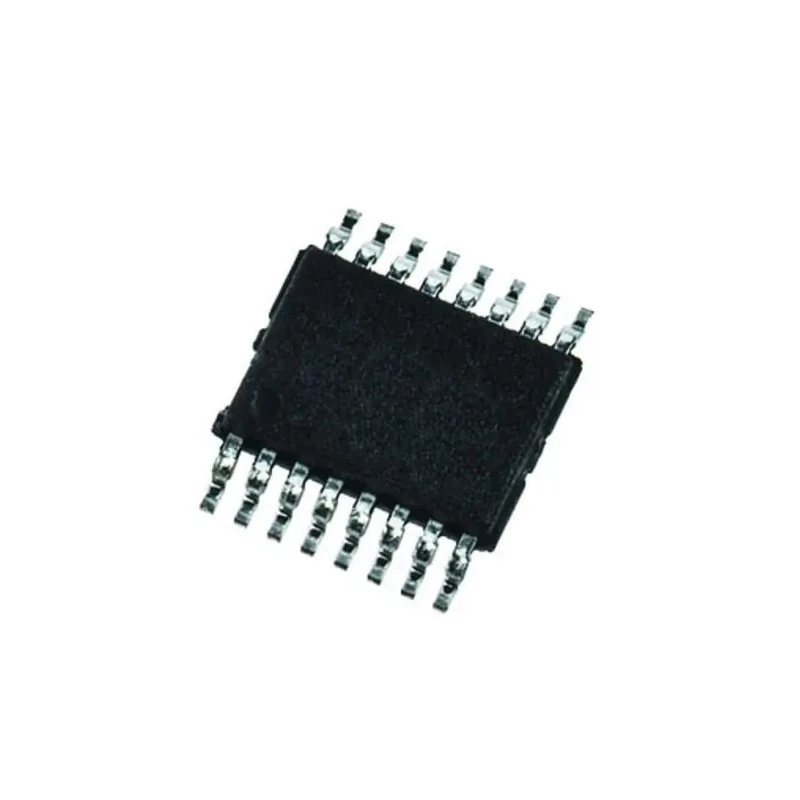

Infineon MOSFET Gate Driver Isolated 1 Output 2.4 A 5.5 V DSO-16 Surface Mount 16-Pin 600ns Fall Time 800ns 1ED020I12F2XUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 2.34mm |
| Length | 10.34mm |
| Model | 1ED020I12F2XUMA1 |
| Width | 7.52mm |
| Mount Type | Surface |
| Series | 1ED020I12-F2 |
| Output Current | 2.4A |
| Maximum Operating Temperature | 105°C |
| Package Type | DSO |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Rise Time | 800ns |
| Pin Count | 16 |
| Minimum Supply Voltage | 5.5V |
| Number of Drivers | 1 |
| Fall Time | 600ns |
| Driver Type | MOSFET |
Key Features
- Provides an isolated MOSFET and IGBT gate driver with 1 output channel.
- Features a 16-pin DSO surface mount package for compact PCB design.
- Operates at 5.5 V supply voltage with 600 ns fall time and 800 ns rise time for efficient switching.
- Designed to operate under wide temperature range from -40°C to 105°C.
- Incorporates separate source and sink outputs for optimized drive capability.
- Suitable for AC motor and brushless DC motor drive applications.
- Offers input to output isolation voltage to protect control circuitry.
- Mount type is surface mount ensuring ease of mounting on PCBs.
Product Description
Infineon 1ED020I12F2XUMA1 is an isolated MOSFET gate driver designed for power management IC applications. This device features 1 driver output channel with a maximum output current of 2.4 A, suitable for driving MOSFETs and IGBTs in industrial and electronic power control circuits.
It comes in a compact 16-pin DSO package with dimensions 10.34 mm length, 7.52 mm width, and 2.34 mm height, making it highly suitable for space-constrained PCB layouts. The gate driver supports a fixed supply voltage of 5.5 V, with fast switching times including a fall time of 600 ns and a rise time of 800 ns, improving overall efficiency and reducing power losses.
Operating temperature range is from -40°C to 105°C, allowing its use in harsh environments such as industrial automation and motor drives. The device includes separate source and sink outputs and provides input to output isolation, which enhances reliability and protection of control electronics.
This MOSFET Gate Driver is ideal for applications involving AC motors, brushless DC motors, and other power management circuits requiring robust and isolated gate driving functionality. Its surface mount configuration enables automated assembly and increased manufacturing efficiency.
Isolated gate driver with 1 output channel for MOSFET and IGBT switching control. 16-pin DSO package measuring 10.34 x 7.52 x 2.34 mm for compact integration. 5.5 V supply voltage ensures stable operation in typical power electronics systems.
Fast switching with 600 ns fall time and 800 ns rise time to optimize efficiency. Wide operating temperature from -40°C to 105°C for rugged industrial use. Surface mount package suitable for automated PCB assembly. Input-output isolation enhances device reliability in complex circuits.
Used widely in semiconductor, electronic components, and power management applications including AC motor and brushless DC motor drives, this Infineon gate driver offers a reliable and efficient solution.
Explore more electronic components and power management ICs at EnvMart to meet your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum output current capability of 2.4 A, suitable for driving MOSFETs and IGBTs in various applications.
It operates at a fixed supply voltage of 5.5 V, ensuring stable performance in power electronics systems.
The dimensions are 10.34 mm in length, 7.52 mm in width, and 2.34 mm in height, making it suitable for compact PCB layouts.
The rise time is 800 ns and the fall time is 600 ns, which contribute to improved efficiency in switching applications.
It operates within a wide temperature range from -40°C to 105°C, making it suitable for harsh industrial environments.
This device features 1 output channel designed for driving MOSFETs and IGBTs.
It comes in a 16-pin DSO surface mount package, facilitating ease of mounting on PCBs.
It is suitable for applications involving AC motors, brushless DC motors, and other power management circuits.
Yes, it incorporates input to output isolation, enhancing the reliability and protection of control circuitry.
The mount type is surface mount, which supports automated assembly and increases manufacturing efficiency.
This model is part of the 1ED020I12-F2 series, which includes isolated gate drivers for power management applications.
The country of origin for this model is India.
