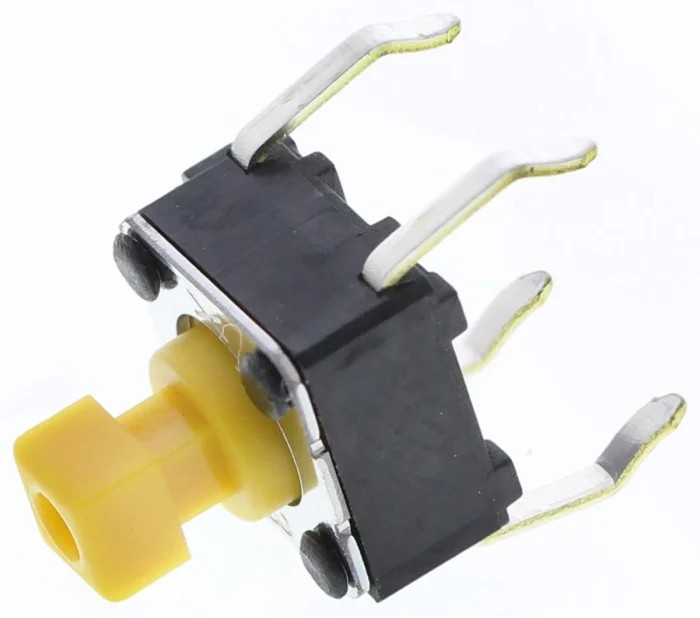

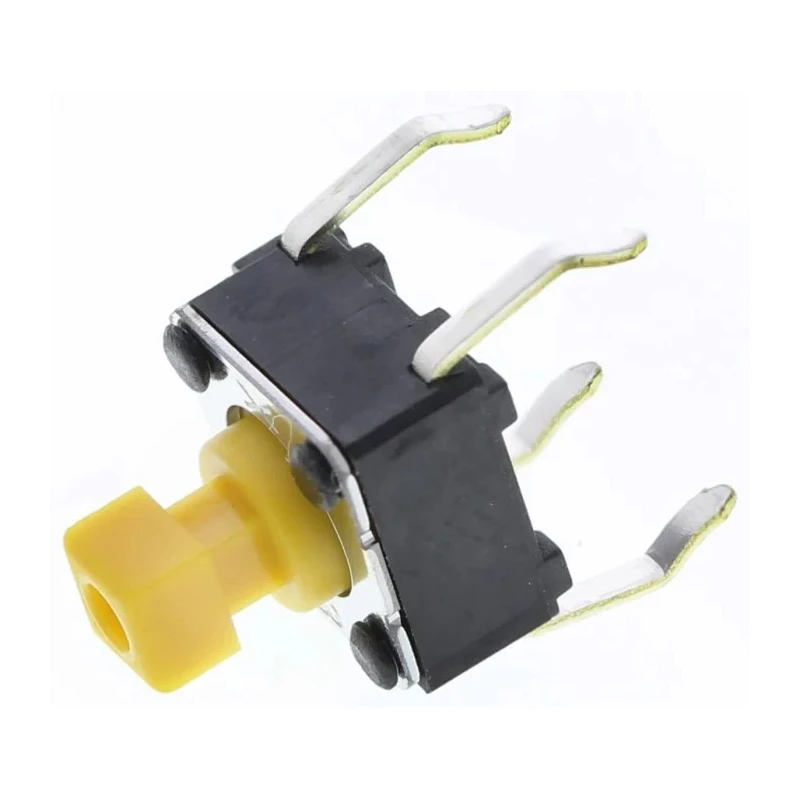

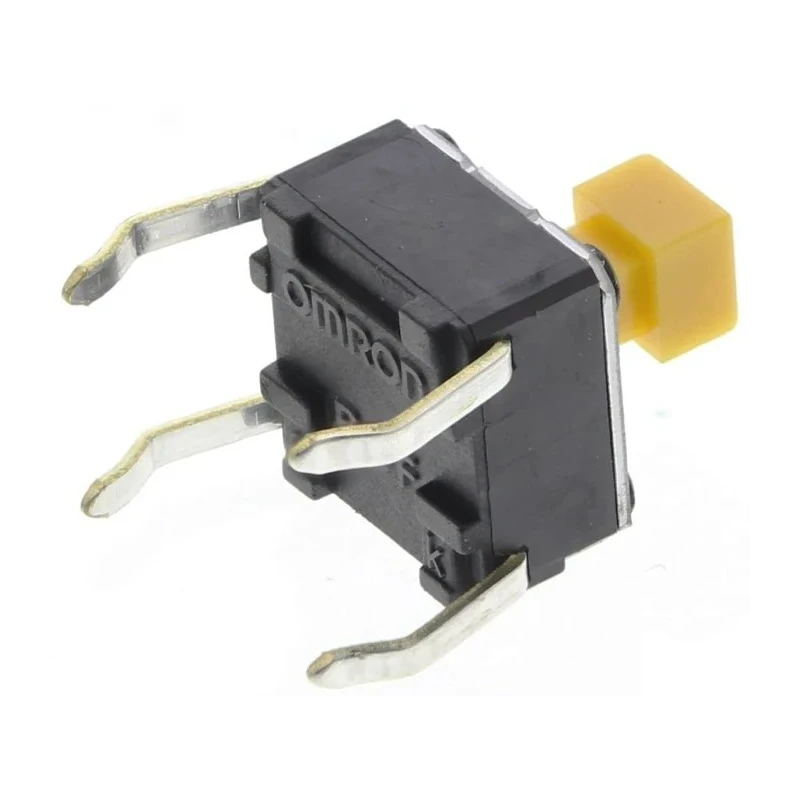

Omron IP00 Yellow Tactile Switch Plunger 3 mm SPST 50mA 24 V dc Through Hole B3F-1052

Omron B3F-1052 Yellow Tactile Switch Plunger 3 mm SPST 50mA 24 V dc Through Hole is a compact and reliable tactile switch designed for various electronic applications requiring precise momentary input control. It is part of the Omron B3F series, recognized for its durable construction and reliable actuation performance.

Featuring a yellow plunger actuator with a 3 mm length, this switch provides a distinct tactile feedback and positive click action, making it suitable for audio equipment, communication devices, measurement instruments, and consumer electronics like TVs and PVRs.

Its single-pole single-throw (SPST) contact configuration allows straightforward on/off control, while the solder terminal type and through-hole mounting ensure mechanical stability and easy integration into printed circuit boards.

With dimensions of 6 mm in length and width and a height of 7.3 mm, the switch is compact enough for space-constrained designs. It is rated for a contact current of 50mA at 24 V dc and can operate reliably in temperatures ranging from -25°C to 70°C, although it carries an IP00 rating indicating no protective enclosure against dust or moisture.

The mechanical life expectancy is rated at 300,000 operations, demonstrating durability for extended use in industrial and consumer applications. The operating force is low at 1.47N, ensuring ease of actuation without accidental triggering.

This tactile switch features a yellow plunger actuator with a 3 mm length. Single-pole single-throw (SPST) contact configuration for simple on/off switching. Designed for through-hole mounting with solder terminals for secure PCB integration.

Mechanical life of 300,000 operations ensures long-lasting reliability. Operates at 50mA contact current and 24 V dc voltage rating. Compact size with 6 mm length and width, and 7.3 mm height. Wide operating temperature range from -25°C to 70°C.

Low operating force of 1.47N for easy tactile feedback.

This Omron tactile switch is manufactured in Japan to high standards and commonly used in industrial automation, consumer electronics, instrumentation, and communication device manufacturing. Its reliable performance and consistent tactile response make it suitable for precision control applications in electronic equipment assembly.
